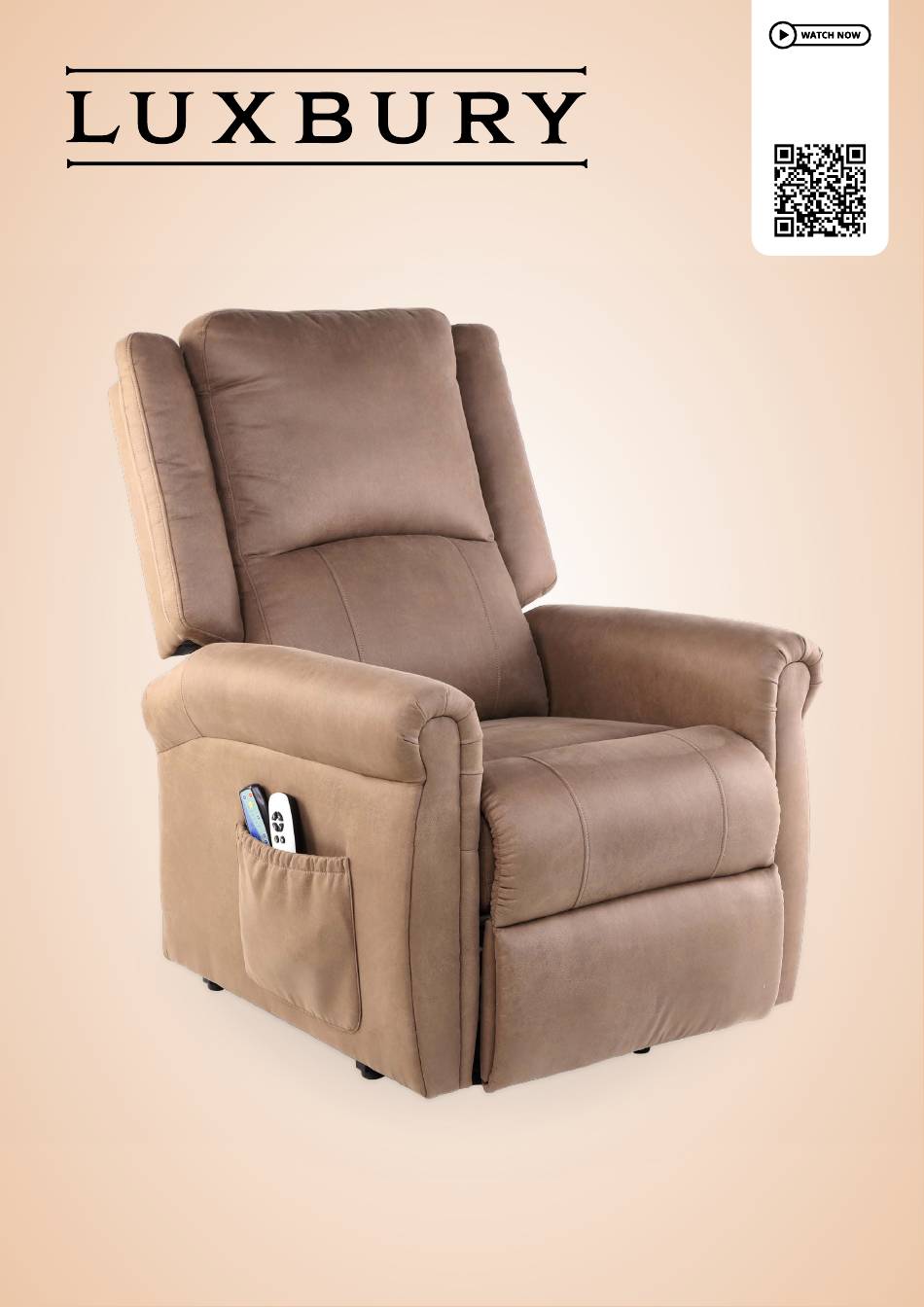

- Page 1 Scan me on your phone camera to watch our assembly video. R I S E R R E C L I N E R USER MANUAL FN01020028 PRODUCT CODE:...
- Page 2 Luxbury Riser Recliner, ensuring you’ll be able to enjoy all of its features for years to come. If any additional assembly, disassembly and/or operation assistance is required, please contact CareCo. CareCo (UK) Limited, 1 Turing Court, Tel: 0333 015 5000 Great Notley, Braintree, CM77 7AT www.CareCo.co.uk...
- Page 3 KEY DEFINITIONS This user manual contains warnings and suggestions marked with the following symbols: WARNING! Highlights a potentially hazardous condition/situation for the user and/or product. SUGGESTION General suggestions and advice for operating the product. Need help with assembly? We’ve put together a step-by-step assembly guide to help you get your product set up safely and correctly.
-
Page 4: Table Of Contents
FN01020028 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR RISER RECLINER HOW TO USE YOUR RISER RECLINER USER INSTRUCTIONS HANDSET CONTROLS RISE & RECLINE HANDSET HEAT & MASSAGE HANDSET TRANSFORMER BATTERY BACK-UP OPTIONAL EXTRAS DISASSEMBLY, TRANSPORTATION & CHAIR POSITIONING DISASSEMBLY INSTRUCTIONS TRANSPORTATION CHAIR POSITIONING... - Page 5 WARNINGS & TECHNICAL INFORMATION RISER RECLINER SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) DEGREE OF PROTECTION AGAINST ELECTRIC SHOCK STORAGE TEMPERATURE OPERATING TEMPERATURE PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED ENVIRONMENT PRODUCT IDENTIFICATION MODIFICATIONS GENERAL WARNINGS EXPECTED LIFETIME WARRANTY NOTES...
-
Page 6: Getting Started
Heat & Massage Handset Transformer Mains Plug Contact CareCo immediately if any of the listed contents are missing. We strongly recommend that you keep the box and internal packaging for the duration of your warranty period. PRODUCT COMPONENTS 1. BACKREST 2. -
Page 7: Setting Up Your Riser Recliner
SETTING UP YOUR RISER RECLINER 1. Remove all riser recliner components 2. Lift the power cable away from the seat from the outer packaging and place them base prong and place to one side. onto a level surface. 3. Lower the backrest onto the seat base 4. - Page 8 FN01020028 PRODUCT CODE 5. Lift the backrest flap to reveal the chairs 6. Connect the power cable to the wiring, then connect the three cables. transformer and mains plug. 7. Connect the plug to a nearby wall socket and switch [ON]. SUGGESTION Continue reading this user manual before operating the chair for the first time.
-
Page 9: How To Use Your Riser Recliner
HOW TO USE YOUR RISER RECLINER USER INSTRUCTIONS SITTING DOWN Ensure the riser recliner chair’s backrest is in the upwards position and the footrest is in the downwards position. Gradually move backwards, using the armrests for support if needed before lowering into the seat. -
Page 10: Rise & Recline Handset
FN01020028 PRODUCT CODE RISE & RECLINE HANDSET CONTROLS Press the appropriate button to complete the desired action: 1. Lowers the footrest, then raises the chair 2. Lowers the chair, then raises the footrest 3. Raises the backrest 4. Reclines the backrest 5. -
Page 11: Transformer
TRANSFORMER The riser recliner chair transformer is fitted with an LED indicator that indicates when the power is [ON] and when the power is [OFF]. LED Indicator Charging Status Green None INSTALLING THE BACK-UP BATTERY Requirements: 2x 9V Batteries 1. Unplug the power lead from the wall socket. 2. -
Page 12: Optional Extras
FN01020028 PRODUCT CODE OPTIONAL EXTRAS WATERPROOF CHAIR PROTECTOR Protect your riser recliner from leaks and spillages with the waterproof chair protector. CARECO FABRIC CARE KIT Remove stubborn stains and odours with the CareCo Fabric Care Kit. -
Page 13: Disassembly, Transportation & Chair Positioning
DISASSEMBLY, TRANSPORTATION & CHAIR POSITIONING DISASSEMBLY INSTRUCTIONS 1. Disconnect the chair from the wall socket, 2. Lift the backrest flap to reveal the chairs then place the transformer and power wiring, then disconnect the three cables. cable into the side pocket. 3. -
Page 14: Transportation
FN01020028 PRODUCT CODE 5. Lift the chair backrest away from the base. 6. Place the disassembled components together, ready for transport. TRANSPORTATION If for any reason the riser recliner chair needs to be transported via motor vehicle, ensure the disassembled components are properly secured before transport to avoid transit damage. CHAIR POSITIONING Position the chair on a level surface with enough space to rise &... -
Page 15: Looking After Your Riser Recliner
LOOKING AFTER YOUR RISER RECLINER FABRIC UPHOLSTERY CARE GENERAL CLEANING Use a vacuum cleaner or soft brush to remove dust and grime from the chair’s upholstery. SPOT CLEANING Blot the area with a clean absorbent cloth or sponge. Pat dry with a towel or leave to air dry. STUBBORN SPOT CLEANING Use mild detergents or non-solvent upholstery shampoo when spot cleaning. -
Page 16: Scissor Mechanism Care
Ensure that the area around the scissor mechanism is clear of obstacles that could affect its movement, including cables and other items. If there are unusual grinding noises, jerky movements, or persistent problems with the recliner’s scissor mechanism, contact CareCo. Do not exceed the weight limit specified. ELECTRONICS CARE Check for damage regularly following the maintenance schedule found within this user manual. -
Page 17: Maintenance
Certain riser recliner components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the riser recliner requires repair due to a defect, contact CareCo immediately. -
Page 18: Troubleshooting
FN01020028 PRODUCT CODE TROUBLESHOOTING The below table is to be used as a guide to make the recliner chair operational again. If after troubleshooting the recliner chair still does not operate, contact CareCo. SYMPTOM POSSIBLE CAUSE POSSIBLE REMEDY THE RISE/RECLINE The handset and/or its Check for any loose connections and tighten if required. - Page 19 WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS 48CM SEAT WIDTH 48CM SEAT DEPTH 48CM SEAT HEIGHT 75CM CHAIR WIDTH 65CM BACKREST HEIGHT 106CM CHAIR HEIGHT (SITTING) 130CM CHAIR HEIGHT (LIFTED) 18CM ARMREST HEIGHT (SITTING) 171CM CHAIR LENGTH (RECLINED) 57CM FOOTREST MAXIMUM HEIGHT 135KGS MAXIMUM USER WEIGHT 30KGS...
- Page 20 FN01020028 PRODUCT CODE ELECTROMAGNETIC INTERFERENCE (EMI Riser Recliner chairs may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the riser recliner to move by itself or cause permanent damage to the riser recliner’s internals.
- Page 21 RECYCLING & DISPOSAL When disposing of the riser recliner and/or its components, users should follow local disposal/recycling regulations. Contact CareCo if further advice is needed regarding recycling & disposal. INTENDED USE To assist an individual when sitting, standing, and resting.
- Page 22 FN01020028 PRODUCT CODE GENERAL WARNINGS • Plug the power lead directly into a wall outlet. Avoid using extension leads. • Do not disconnect the plug from the wall outlet by pulling the power cable. • Periodically check the handset and power leads for visible damage. •...
- Page 23 EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the riser recliner is expected to function according to its intended use. Various items such as weight capacity, user behaviour, and intensity of use can affect the expected lifetime.
- Page 24 WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. 1-YEAR LIMITED WARRANTY Consumables are not covered under normal warranty circumstances unless they have clearly suffered excessive wear or damage as a direct result of a manufacturing defect.
- Page 25 NOTES...
- Page 26 CareCo (UK) Limited, 1 Turing Court, Tel: 0333 015 5000 Great Notley, Braintree, CM77 7AT www.CareCo.co.uk Jiaxing Huijinrong Wellness Co Ltd, No. 1165 Hongye Road, Xiuzhou District, Jiaxing, Zhejiang, China...
