Dear Imesa customer!
Welcome to the family of Imesa customers.
We hope that you will have many years of use from your new machine.
The machine has many features. To make the most of its functions, we
recommend that you read the operating instructions before using the
machine. The operating instructions include information on how you can
help protect the environment.

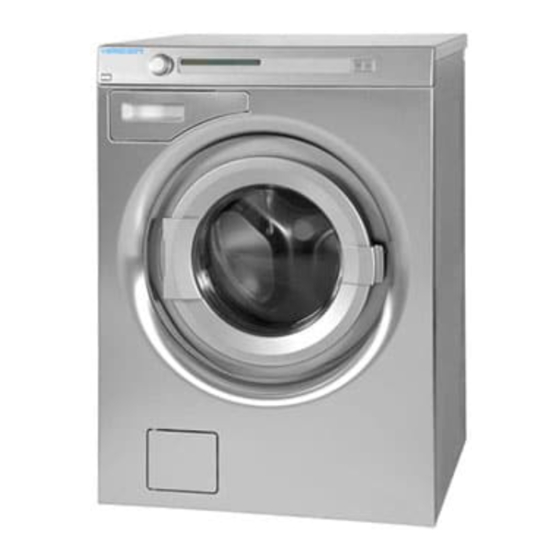

Operating Instructions
Washing Machine
Imesa LM65PEDP
WARNING: Read the instructions before using the machine.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Imesa LM65PEDP
Summary of Contents for Imesa LM65PEDP
- Page 1 Dear Imesa customer! Welcome to the family of Imesa customers. We hope that you will have many years of use from your new machine. The machine has many features. To make the most of its functions, we recommend that you read the operating instructions before using the machine.
-
Page 2: Table Of Contents
Contents Before using your machine for the Washing fi rst time Sort your laundry. Transport protection Turn on the main power switch Packing material Open the washer door and load the Washer door washing Language selection Add detergent and fabric softener, as required Checking water hardness Select the programme... - Page 3 Contents The machine will not start After power failure Wet washing still in the machine Error messages Over fl ow fault Information for test institute Energy labelling Technical data Transport protection Installation Positioning the washing machine Adjusting the feet Connection to water supply Drainage connection Electrical installation Service...
-
Page 4: Before Using Your Machine For The Fi Rst Time
Before using your machine for the fi rst time Transport protection Checking water hardness Remove any transport protection devices before The quantity of detergent needed depends, installing the machine. See the "Transport amongst other things, on how hard the water protection"... -
Page 5: Safety Instructions
Safety instructions safety or performance must be carried General out by a qualifi ed professional. • Read the operating instructions and • Damaged mains cables must only be keep them in a safe place. replaced by a qualifi ed electrician. •... -
Page 6: Installation
Safety instructions Installation See the "Installation" chapter. Overfl ow guard function If the machine’s water level rises above the normal level, the overfl ow guard function begins to pump water out and shuts off the water intake. If the water level has not dropped within 60 seconds, the program is terminated. -
Page 7: Child Safety
Child safety Keep an eye on children! • Always close the washer door and start the programme immediately after you have added detergent. • Do not allow small children to use or play with the washing machine. • Store detergent and fabric softener out of the reach of children. -
Page 8: Description Of The Washing Machine
Description of the washing machine 1. Main power switch 2. Dispenser 3. Programme panel 4. Serial number plate (on inside of washer door) 5. Drainage pump cover 6. Drainage pump (behind cover) 7. Washer door... -
Page 9: Dispenser
Dispenser 1. Pre-wash 2. Main wash with liquid detergent. Use the separator (A). 3. Main wash with powder detergent. Do not use the separator. 4. Fabric softener 5. Release button 6. Child safety catch... -
Page 10: Advice And Tips Before Washing
Advice and tips before washing Here are some tips that may help you before soot and coff ee. Note however that diffi cult washing. protein stains with albumen content (blood, milk, meat and fi sh) fi rst need to be soaked Sorting your laundry in cold water as they are diffi... - Page 11 Advice and tips before washing washing results; it merely causes a greater impact on the environment. Try to use less detergent, and increase only if you are not satisfi ed with the results. NOTE! Due to environmental concerns, we discourage the use of strong chemicals.
-
Page 12: Washing
Washing Sort your laundry. Wash ball or net See the "Advice and tips before washing" If you use a wash ball or net, place it directly in chapter. the drum and select a programme without pre- Place underwired bras in a laundry net. wash. -
Page 13: Select The Programme
Washing Select the programme Programme selector Time remaining Start Main power switch Program Stop The display shows the programme name, the Super quick wash, 60 °C water temperature and the spin speed. Fast programme for laundry that just needs The washing machine has a number of freshening up. - Page 14 Washing Programme chart Water consumption (approx. liter) 1)+2) Cold Program Standard cotton 1200 1,30 3:10 Standard cotton 1200 0,70 3:00 Heavy wash 1200 2,55 2:00 Heavy wash 1200 1,40 1:35 White 1200 2,30 1:45 White / Colour 1200 1,40 1:25 White / Colour 1200 0,60...
- Page 15 Washing Adjustment of the displayed washing time Advanced technology allows the appliance to sense the amount of laundry and add the required amount of water during the washing process. Depending on the washing load, washing time can be longer or shorter and the time displayed will be adjusted accordingly.
-
Page 16: Close The Washer Door And Press The Start Button
Washing Close the washer door and Once the program has fi nished press the Start button The text "Done" is shown on the display for 10 minutes. The machine then turns off . NOTE! Once the program is fi nished, the washer door will automatically unlock. -
Page 17: Settings
Settings You can change the following Water intake settings: (depending on the model) • Language Connecting to both the hot and cold water • Temperature °C/°F supplies reduces the wash time and reduces • Water intake the washing machine's electricity consumption. •... -
Page 18: Care And Cleaning
Care and cleaning Cleaning the trap and the drainage Cleaning the detergent compartment pump Pull out the detergent compartment using the The washing machine has a trap where smaller release button. objects such as coins and hairpins can collect. To clean the trap and the drainage pump, do as follows: 1. - Page 19 Care and cleaning Cleaning the inside of the machine to avoid unpleasant smells Modern detergents often allow clothes to be washed at low temperatures. This means that small deposits can build up in the machine. These, in turn, may lead to unpleasant smells developing.
-
Page 20: Rinse Holes Under The Agitator
Rinse holes under the agitator 5. Place the agitator in the mounting hole with If you suspect that objects such as nails or the F-mark towards you. Ensure that all the paper clips may have fallen into the wash agitator fasteners are in their holes in the drum, you should check the space under the drum. -
Page 21: Troubleshooting
Troubleshooting The washer door will not open D Push the tool downwards to open the • Check that the main power switch is on. washing machine door. • Has the power supply been cut off ? Check the house fuses (circuit breakers). If the temperature in the drum exceeds 60 °C, then the door lock will remain activated. -
Page 22: Error Messages
Troubleshooting Error messages Water inlet fault If an error occurs during the programme a Check: message is shown on the display. To exit • that the tap on the water pipe is open. the message after taking measures, turn the •... -
Page 23: Information For Test Institute
Technical information Information for test institute Energy labelling European test standard: EN 60456 Washing program: Standard cotton, 60 °C, 1200 rpm, 8 kg cotton Connection: Cold water 15 °C Test method for noise measurement: IEC-60704-2-4 Technical data Height: 850 mm Width: 595 mm Depth:... -
Page 24: Transport Protection
Transport protection Remove the three transport bolts and the plastic 3. Remove the plastic covers from the plugs. plugs for locking the machine for transport Push the plastic covers into the three holes before using the machine. that contained the plugs. Save the plastic plugs in case the machine is moved in the future. -
Page 25: Installation
Installation Positioning the washing machine The washing machine can be installed as a built-in or freestanding unit. Place the machine on a fi rm surface with easy access to the plug. A. Built-in The washing machine can be installed under a counter top with a working height of 850-900 mm. -
Page 26: Drainage Connection
Installation Drainage connection Electrical installation The machine is supplied with a drainage hose If the machine is delivered from the factory attached, which must be connected to a drain. with a plug attached, it can be connected to an See the examples below. The height must be earthed wall socket. -
Page 27: Service
Service Before contacting the service division Model Before you contact the service division, make designation sure that you know the model designation, type designation and serial number. The model designation can be found on the panel. The type designation and serial number Type plate can be found on the type plate on the inside of the washer door. -
Page 28: Quick Guide
You select a programme by turning the programme selector. The selected programme is shown in the display. CLOSE THE WASHER DOOR AND PRESS THE START BUTTON The time remaining is shown in hours and minutes. We reserve the right to make changes. WM70.C en (05-19) LM65PEDP IMS...
