Label
Name
1
Cabinet
2
Microwave Oven
3
Front Grill
4
Upper Exhaust Guide
5
Lower Exhaust Guide
6
Rear Vent Shield
7
Top Vent Shield
Ⓐ
Screw 3x25mm
Ⓑ
Screw 4x8mm
Ⓒ
Screw 4x10mm

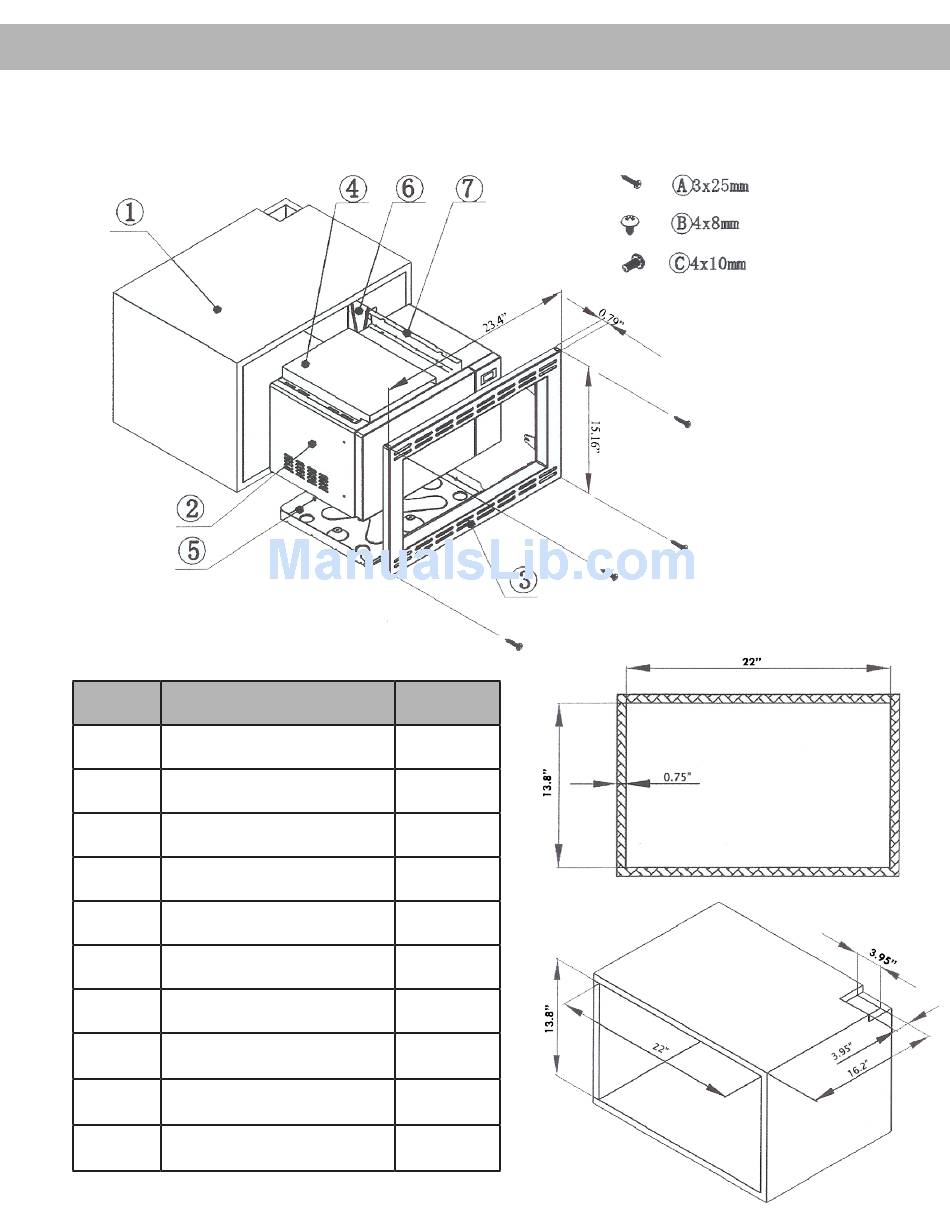

INSTALLATION MANUAL
OTR24
Built-in Microwave
Quantity
1
1
1
1
1
1
1
4
12
4
① Cabinet Dimensions
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Summit OTR24
Summary of Contents for Summit OTR24
- Page 1 INSTALLATION MANUAL Label Name Cabinet Microwave Oven Front Grill Upper Exhaust Guide Lower Exhaust Guide Rear Vent Shield Top Vent Shield Ⓐ Screw 3x25mm Ⓑ Screw 4x8mm Ⓒ Screw 4x10mm OTR24 Built-in Microwave ① Cabinet Dimensions Quantity...
- Page 2 4 screws. Place in Ⓑ Ⓑ 4-4x8mm *4 4-4x8mm *4 alignment Fasten the rear vent shield to the microwave Fasten the top vent shield to the microwave oven rear with 2 screws. oven with 2 screws. Ⓑ 4-4x8mm *2 Ⓑ...
- Page 3 Fasten the front grill to the microwave oven with 4 screws. Ⓒ 4-4x10mm *4 Place oven in the middle of cabinet. ⅛″ Feed cord through cabinet rear Fasten the oven into the cabinet with 4 ⅛″ Ⓐ 4-4x25mm *4 screws.
- Page 4 Insert rotary carousal and warming plate Installation Complete...
