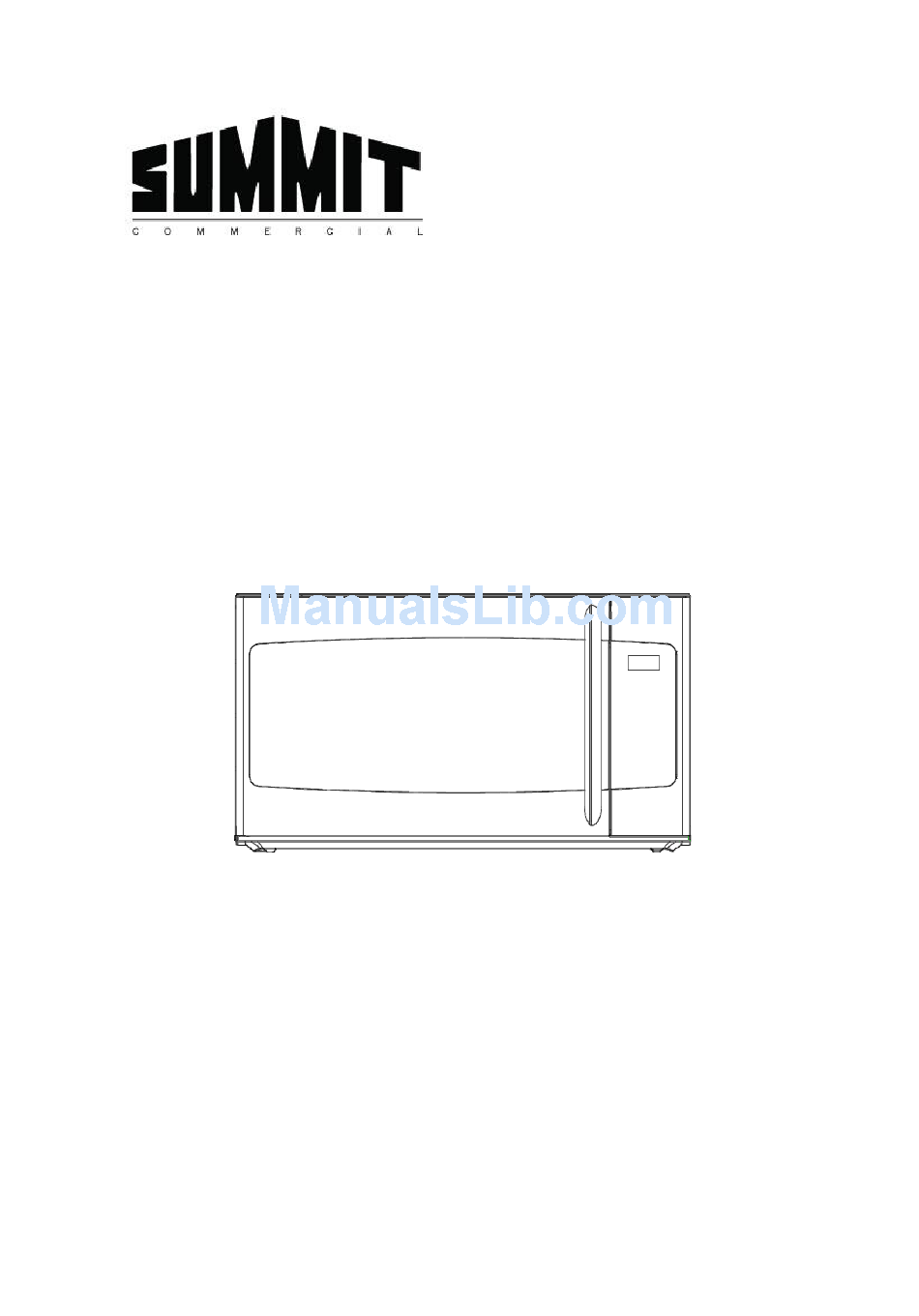

- Page 1 USER GUIDE 1.6Cu.Ft. Oven-the-Range Microwave MODEL:OTRSS301 Please read these instructions carefully before installing and operating the oven. Felix Storch, Inc. Summit Appliance Division An ISO 9001:2015 registered company 770 Garrison Avenue Bronx, New York 10474 www.summitappliance.com...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ..4 UNPACKING INSTRUCTIONS ....................4 GROUNDING INSTRUCTIONS ....................5 INFORMATION YOU NEED TO KNOW ..................6 SPECIFICATIONS ........................10 FEATURES DIAGRAM ......................11 CONTROL PANEL FEATURES ....................12 BASIC CONTROLS ........................ -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, and injury to persons or exposure to excessive microwave energy: Read all instructions before using the appliance. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY"... - Page 4 should be checked before serving in order to avoid burns. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. Do not cover or block any openings on the appliance. Do not store or use this appliance outdoors.
-
Page 5: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open‐door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: ① Door (bent), ② Hinges and latches (broken or loosened), ③ Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. -
Page 6: Grounding Instructions
If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person. Neither Summit nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures. -
Page 7: Information You Need To Know
INFORMATION YOU NEED TO KNOW ABOUT YOUR OVEN NEVER use the oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the oven. The turntable will turn both clockwise and anticlockwise. The shelf gives you the option to reheat more than one dish of food at the same time. To reheat on 2 levels: Switch places after ½ the time. Make sure the shelf is positioned properly inside the microwave to prevent damage to the oven from arcing. Do not use a microwave browning dish on the shelf. The shelf could overheat. Do not use the oven with the shelf on the microwave floor. This could damage the microwave. Use pot holders when handling the shelf‐it may be hot. Do not use the shelf when cooking popcorn. ALWAYS have food in the oven when it is on to absorb the microwave energy. When using the oven at power levels below 100%, you may hear the magnetron cycling on and off. Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will influence the amount of moisture that condenses in the oven. Generally, covered foods will not cause as much condensation as uncovered ones. Ventilation openings must not be blocked. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly. ABOUT MICROWAVE COOKING Arrange food carefully. Place thickest areas towards outside of dish. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. ... - Page 8 Food steams throughout, not just at edge. Center bottom of dish is very hot to the touch. Poultry thigh joins move easily. Meat and poultry show no pinkness. Fish is opaque and flakes easily with a fork. ABOUT FOOD FOOD DON’T Puncture egg yolks before cooking to Eggs,...
- Page 9 ABOUT SAFETY Check foods to see that they are cooked to the following recommended temperatures. TEMP FOOD ...for fresh pork, ground meat, boneless white poultry, fish, seafood, egg dishes and 160℉ frozen prepared food. …for leftover, ready-to-reheat refrigerated, and deli and carry-out “fresh” food. 165℉...
- Page 10 A microwave-safe thermometer will assist you in determining correct doneness and assure you that foods have been cooked to safe temperatures. Summit is not responsible for any damage to the oven when accessories are used ABOUT CHILDREN AND THE MICROWAVE Children below the age of 7 should use the microwave oven with a supervising person very near to them.
-
Page 11: Specifications
Children should be taught all safety precautions; use potholders, remove coverings carefully and pay special attention to packages that crisp food because they may be extra hot. Don’t assume that because a child has mastered one cooking skill he/she can cook everything. Children need to learn that the microwave oven is not a toy. SPECIFICATIONS Power Supply 120V 20AC 60Hz Single phase Power Consumption 1650W Output Power 1000W Microwave Frequency 2450MHz Outside Dimensions 16 ”(H) ×29 ”(W) ×17 ”(D) 8 Cavity Dimensions 10 ”(H)× 21 ”(W) ×14 ”(D) Oven Capacity 1.6 Cu.Ft. Cooking Uniformity Turntable /Stirrer Fan System Weight Approx. (net) 55.1lb ... -
Page 12: Features Diagram
FEATURES DIAGRAM 1. Door Safety Lock System 2. Oven Window 3. Shaft 4. Roller Ring 5. Control Panel 6. Shelf 7. Glass Tray ... -
Page 13: Control Panel Features
CONTROL PANEL FEATURES Your microwave oven control panel lets you select the desired cooking function quickly and easily. All you have to do is touch the necessary Command pad. The following is a list of all the Command and Number pads located on the control panel. For more information on these features, see the operation section. - Page 14 Reheat, Popcorn, Beverage, Veggies, Cheese, Ice Cream, Butter). 3. 1 LB Defrost. Touch this button to defrost frozen food quickly. 4. Time Defrost. Use to defrost food based on time entered. 5. Weight Defrost. Use to defrost food based on weight entered. 6.
-
Page 15: Basic Controls
BASIC CONTROLS Learn about your microwave oven. CAUTION To avoid risk of personal injury or property damage, do not operate the microwave oven empty. To avoid risk of personal injury or property damage, do not use stoneware, aluminum foil, metal utensils, or metal trimmed utensils in the microwave oven. descrip on: When the oven is first plugged in, the display will show “12:00”... -
Page 16: Multi Stage Cooking
Use number pad to choose cooking power level Press Number pad Power level(Display) Press Number pad Power level(Display) 1、0 100%(PL10) 4 40%(PL‐4) 9 90%(PL‐9) 3 30%(PL‐3) 8 80%(PL‐8) 2 20%(PL‐2) 7 70%(PL‐7) 1 10%(PL‐1) 6 60%(PL‐6) 0 0%(PL‐0) 5 50%(PL‐5) For example, suppose you want to cook at 80% power level for 10 minutes. Time Cook 1. In standby mode, press pad once. 2. Use the number pads to enter cooking time. pad once, and then use the number pad to select 80% power level. Power Level “8”... -
Page 17: Special Features
In standby mode, the vent fan is manual control. Continuously pressing can choose three Vent/2 Speed cycle gears: button Display Vent/2 Speed Press Working Mode Vent .L Once Low wind Vent .H Twice High Wind Put Out 3 times Turn off NOTE: When cooking is started, the suction fan automatically works into a low wind gear, and “Vent.L” will display. During cooking in a session, you can choose low wind or high wind gear. SPECIAL FEATURES ... -
Page 18: Kids Meals
Example, you want to cook 10 oz meat. Place meat into the oven and close the door. pad once. Meat Press Press number pad to enter weight. pad to start cooking. Start/Add 30Sec Touch NOTE: For meat the oven will pause to remind user to turn the food over for uniform cooking. Popcorn Popcorn lets you pop commercially packaged microwave popcorn. For example you want to cook a 3.5 oz bag of microwave popcorn. 1. Place the food into the oven and close the door. pad once, the display will show”2:05” and “START”. Popcorn 2. Press Start/Add 30Sec 3. Press pad, the system starts to cook immediately. NOTE: Popcorn automatically sets the cooking time for a 3.5 oz. bag of microwave popcorn. Beverage For example, you want to reheat two cups of coffee. 1. Place coffee into the oven and close the door. pad once, the display will display “1”. Beverage 2. Press “2” to choose two cups. 3. Press number pad pad to start cooking. Start/Add 30Sec 4. Press NOTE: For beverages, you can choose the amount by touching number pad 1 to 6, and the display ... -
Page 19: Weight Defrost
KIDS MEALS Category Press number pad Weight Power level Cooking time 4 oz 01:30 Chicken nuggets 1 PL‐6 8 oz 02:30 Hot dogs 2 1 PL‐6 01:30 4 oz 01:30 French fries 3 PL‐6 8 oz 02:30 Frozen Sandwiches 4 1 PL‐8 01:20 Weight Defrost The oven allows you to defrost food based on the weight entered by user. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen ... -
Page 20: Other Convenient Features
NOTE: During defrost, the oven will pause and sound beep to remind user to turn the food over, Start/Add 30Sec after that, press pad to resume. The longest defrosting time you can set is 99 minutes and 99 seconds. Please remember to place the food on a microwave‐safe dish, not in a plastic container OTHER CONVENIENT FEATURES Add 30Sec pad repeatedly to set cook time and the oven Start/Add 30Sec In standby mode, simply touch the will start cooking immediately at 100% power level. NOTE: You can also extend cooking time (except auto cook and 1Lb defrost) by touching the during cooking (each touch for 30 seconds up to 99 minutes and 99 seconds). Start/Add 30Sec Setting the Time Suppose you want to time a 3 minutes cooking. pad once,“00:00” and “TIMER” will display. Timer 1. In standby mode or cooking process, touch 2. Use the number pads to enter time. pad. ... -
Page 21: Cleaning And Maintenance
Stop/Cance To cancel, press and hold l for 3 seconds. LOCK indication disappears. CLEANING AND MAINTENANCE Exterior The outside surface is precoated steel and plastic. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner. Door Wipe the window on both sides with a damp cloth to remove any spills or spatters. - Page 22 For other uses, select either HI or LO speed. Odor Removal Occasionally, a cooking odor may remain in the oven. To remove, combine 1 cup water, grated peel and juice of 1 lemon and several whole cloves in a 2-cup glass measuring cup. Boil for several minutes using 100% power.
- Page 23 Charcoal Filter Charcoal filter is used for nonvented, recirculated installation. The filter should be changed every 6 to 12 months depending on use. Disconnect power to the oven at the circuit breaker panel or by unplugging. Remove the louver mounting screw from the top center of the louver and push down carefully on the tab at each end of the louver to disengage it.
-
Page 24: Limited Warranty
LIMITED WARRANTY 90-DAY LIMITED WARRANTY Within the 48 contiguous United States, for 90 days from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
