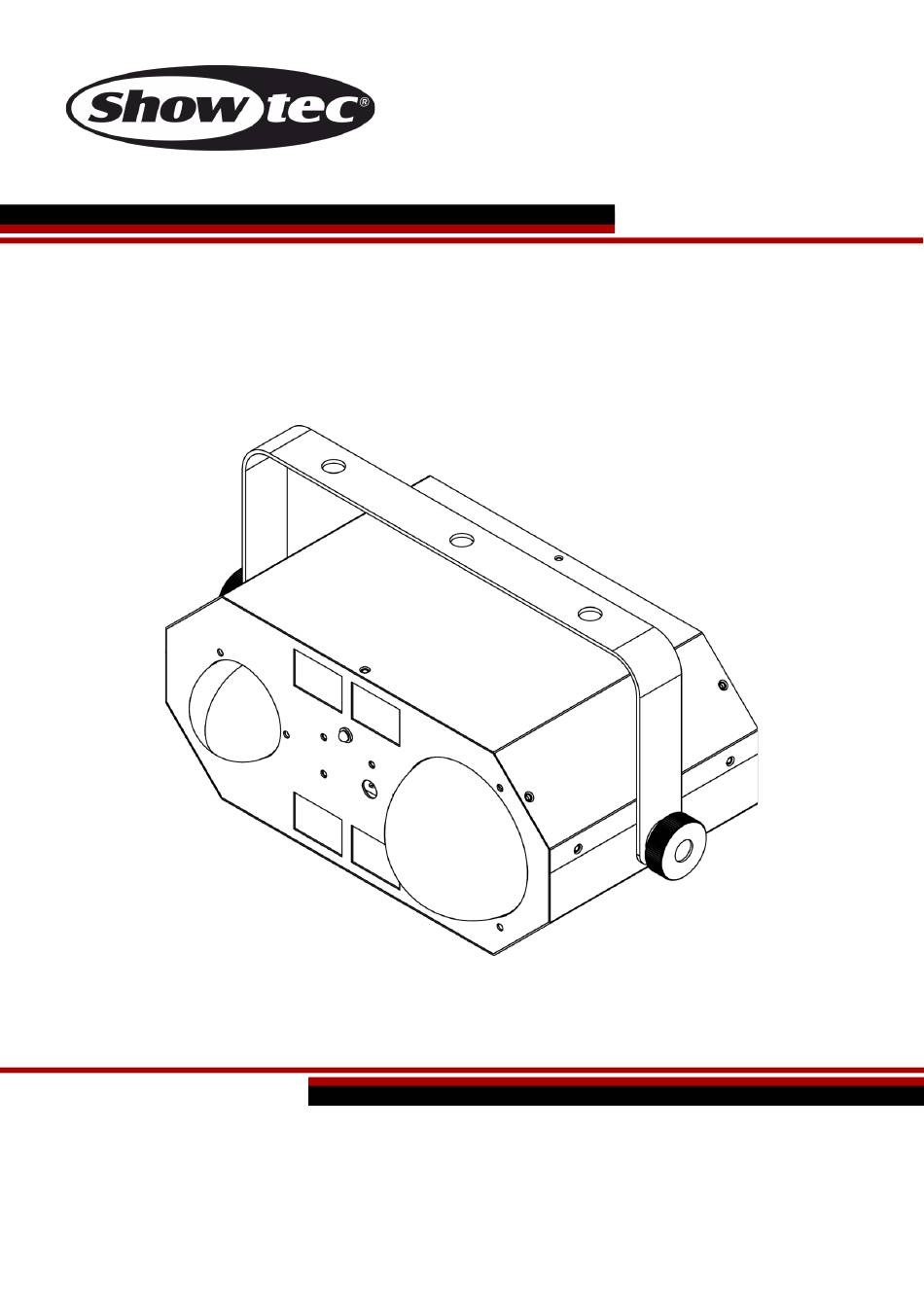

- Page 1 USER MANUAL ENGLISH Booby Trap RG Product code: 43170 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Booby Trap RG Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Booby Trap RG Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................3 LEDs Lifespan ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Booby Trap RG ● Schuko to IEC (C13) power cable (1,5 m) ● IR remote control ●... -
Page 5: Symbols And Signal Words
Booby Trap RG Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
Booby Trap RG Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. - Page 7 Booby Trap RG WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 8: Requirements For The User
Booby Trap RG Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. ●... -
Page 9: Description Of The Device

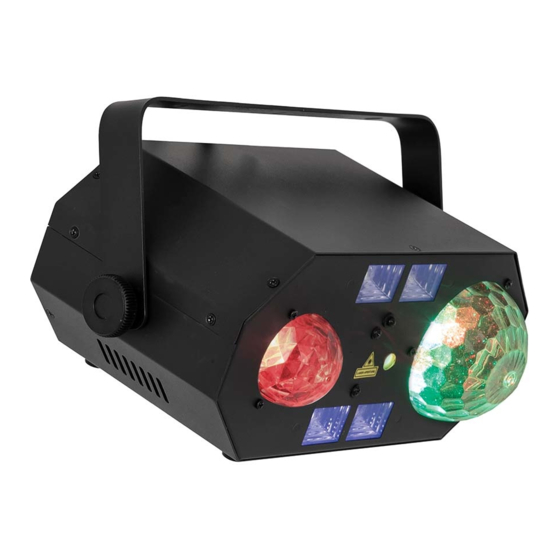

Description of the Device The Showtec Booby Trap RG is a compact 5-in-1 effect light for creating Water Wave, UV, Strobe, Laser and Disco Star light effects, suitable for small indoor venues. The water-wave effect has a 5 W RGB lightsource output for vivid colours and sharp beams. -
Page 10: Product Specifications
Booby Trap RG Product Specifications Model: Booby Trap RG Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 20 W Fuse: T 1,6 A, 250 V Physical: Dimensions: 276 x 171 x 157 mm (L x W x H) Weight: 1,6 kg Optics:... -
Page 11: Dimensions
Booby Trap RG Dimensions Fig. 04 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. Personal Protective Equipment During installation and rigging wear personal protective equipment in compliance with the national and site-specific regulations. -
Page 12: Installation Site Requirements
Booby Trap RG Installation Site Requirements ● The device can be used only indoors. ● The device can be mounted to a truss or other rigging structure. ● The minimum distance to other objects must be bigger than 0,5 m. ●... -
Page 13: Angle Adjustment
Booby Trap RG Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (07). 01) Turn the adjustment screws (07) counterclockwise to release them. 02) Tilt the device at the desired angle (see Fig. 08). 03) Turn the adjustment screws (07) clockwise to tighten them. -
Page 14: Setup
Booby Trap RG Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup The Booby Trap RG can be operated manually, in auto mode or in sound-controlled mode. For more information about the control modes, refer to 6.2. -
Page 15: Operation
Booby Trap RG Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as a light effect. It is suitable only for indoor installation. This device is not suitable for households and for general lighting. -
Page 16: Remote Control Operation
Booby Trap RG Remote Control Operation The device can be operated with an IR remote control. The remote control is included in the delivery. DANGER Do not ingest battery, chemical burn hazard. The remote control contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. -
Page 17: Auto
Booby Trap RG Auto Press the Auto button to start the auto program. Press the Motor buttons to increase/decrease the speed of the auto program. Sound Press the Sound button to start the auto program. Press the Sensitivity buttons to increase/decrease the speed of the sound program. -
Page 18: Troubleshooting
Booby Trap RG Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 19: Maintenance
Booby Trap RG Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. -
Page 20: Corrective Maintenance
Booby Trap RG Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. Replacing the Fuse DANGER Electric shock caused by short-circuit... -
Page 21: Deinstallation, Transportation And Storage
Booby Trap RG Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 22 Booby Trap RG Product code: 43170...
- Page 23 Booby Trap RG Product code: 43170...
