Summary of Contents for Teledyne SP-F-SIM

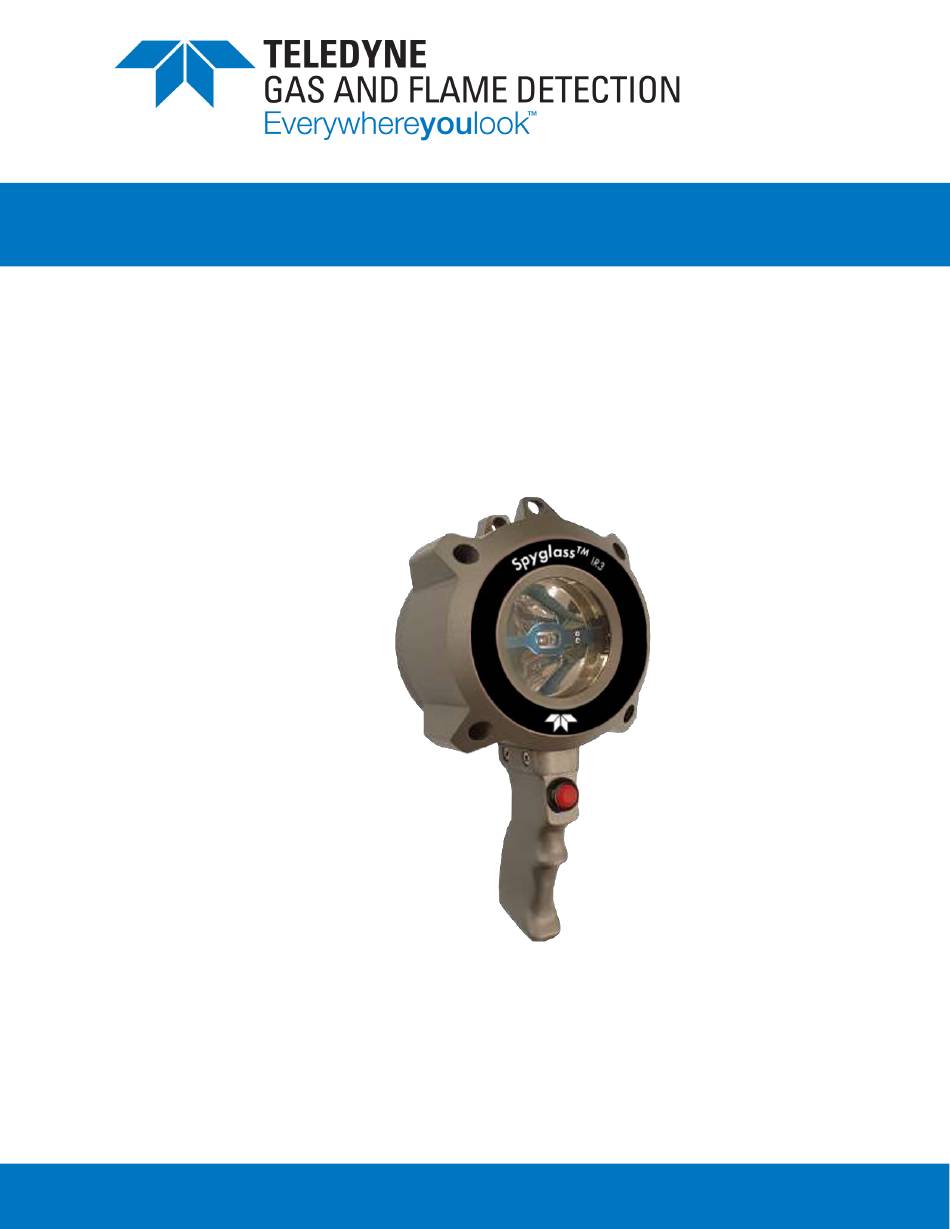

  • Page 1 User Manual SP-F-SIM Spyglass Flame Simulators SP-F-SIM-EN Revision 1.0...
  • Page 2 User manuals in other languages are available on Website https://teledynegasandflamedetection.com Copyright  February 2023 by Teledyne Gas and Flame Detection. All rights reserved. No reproduction of all or part of this document, in any form, is permitted without the written consent of Teledyne Gas and Flame detection.
  • Page 3 • No business, person or legal entity may assume responsibility on behalf of Teledyne Gas and Flame detection, even though they may be involved in the sale of Teledyne Gas and Flame detection products.
  • Page 4 Exceeding the indicated values cannot in any case be authorized. Warranty • Under normal conditions of use and on return to the factory, SP-F-SIM lamp carry a 3-year warranty, excluding accessories such as carrying case, etc. Waste Electrical and Electronic Equipment (WEEE directive) European Union (and EEA) only.
  • Page 5: Table Of Contents

    SP-F-SIM Flame Simulators USER MANUAL Table of contents General Information ............... 7 User Manual ......................7 Symbols used ....................... 7 Introduction ..................9 Operation ..................11 Flame simulator activation ................11 LED Status, Faults & Warnings ............13 Servicing/Maintenance ..............15 Simulator charging ....................
  • Page 6 SP-F-SIM Flame Simulators USER MANUAL SP-F-SIM-EN Revision 1.0...
  • Page 7: General Information

    In case of doubt, contact Teledyne Gas and Flame detection for additional information. The aim of this manual is to supply simple and accurate information to the user. Teledyne Gas and Flame detection cannot be held liable for any misinterpretations in the reading of this manual. In spite of our efforts to produce an error-free manual, it may nonetheless contain some unintentional technical inaccuracies.
  • Page 8 SP-F-SIM Flame Simulators USER MANUAL Icon Significance This symbol indicates: Earth ground connection. This symbol denotes: Protective earth terminal. A cable of the adequate diameter must be connected to ground and to the terminal having this symbol. This symbol denotes: Attention! In the present mode of use, failure to adhere to the instructions preceded by this symbol can result in a risk of electric shock and/or death.
  • Page 9: Introduction

    SP-F-SIM Flame Simulators USER MANUAL 2 Introduction This manual describes the Spyglass Flame Simulators that are part of the Spyglass family of products. Three different models of simulator are available for testing each type of Spyglass Detector (IR3, IR3-H2 and UV-IR). Spyglass Flame Simulators provide fast and convenient means for periodic flame detector and end-to-end system verification in the field without removing the detector from the location or hazardous area.
  • Page 10 SP-F-SIM Flame Simulators USER MANUAL Strap Range Tool Flame simulator Carrying Strap Battery Charger Adaptors Carrying Case SP-F-SIM-EN Revision 1.0...
  • Page 11: Operation

    SP-F-SIM Flame Simulators USER MANUAL 3 Operation 3.1 Flame simulator activation •Testing using a flame simulator to simulate a fire to the detector may activate alarms or extinguishing systems in the area unless disabled/inhibited/bypassed. •All tests should be coordinated, and if needed, disconnect/disable the alarm and/or the extinguishing systems before the test, and reconnect after the test.
  • Page 12 SP-F-SIM Flame Simulators USER MANUAL factory default settings for Detectors sensitivity is Medium. Simulator Kit SP-F-SIM-IR3 SP-F-SIM-IR3-H2 SP-F-SIM-UV-IR SG50-F-IR3-V SG50-F -IR3-H2-V SG50-F -UV-IR-V Use with SG50-F -IR3 SG50-F -IR3-H2 SG50-F -UV-IR Detector SG50-F -UV-IR-F-V Model SG50-F -UV-IR-F ft. (m) ft. (m) ft.
  • Page 13: Led Status, Faults & Warnings

    SP-F-SIM Flame Simulators USER MANUAL 4 LED Status, Faults & Warnings The flame simulator has a tri-color LED which indicates the operational status of the simulator as described in the table below. LED Status Indication Action Flashing green Normal operation...
  • Page 14 SP-F-SIM Flame Simulators USER MANUAL SP-F-SIM-EN Revision 1.0...
  • Page 15: Servicing/Maintenance

    2. Always make sure the flame simulator battery is fully charged prior to use. 3. To maintain the battery life, it should be fully charged at least once in a 3-month period. 4. Replace battery only with part number SP-F-SIM-BATT. 5.1 Simulator charging Charge battery in a safe area –...
  • Page 16: Battery Replacement

    SP-F-SIM Flame Simulators USER MANUAL 5.2 Battery replacement Battery replacement in a safe area– Battery chamber should only be opened in a non- hazardous location 1. Release the locking screw using the Allen key. 2. Using strap wrench tool to remove the back-battery cover (2) of simulator by unscrewing.
  • Page 17: Specifications

    SP-F-SIM Flame Simulators USER MANUAL 6 Specifications 6.1 Technical Specifications Mechanical Size 3.9 x 3.9 x 7.8 inch (100 x 100 x 200mm) Weight 3.96lbs. (1.8Kg) Enclosure Painted Aluminum LM25 Ingress protection IP65 (NEMA 4X) Electrical Power Li-ion 3.7V Maximum current 0.5A (IR models) / 0.7A (UV-IR model)
  • Page 18: Physical Dimensions

    SP-F-SIM Flame Simulators USER MANUAL 6.2 Physical Dimensions. Figure 2 - Dimensions (in mm) SP-F-SIM-EN Revision 1.0...
  • Page 19: Ordering Information

    SP-F-SIM Flame Simulators USER MANUAL 7 Ordering Information Part Number Description Simulator Kits IR3 Spyglass flame simulator kit including carry case, simulator, SP-F-SIM-IR3 carrying strap, charger and manual UV-IR Spyglass flame simulator kit including carry case, simulator, SP-F-SIM-UVIR carrying strap, charger and manual...
  • Page 20 SP-F-SIM Flame Simulators USER MANUAL SP-F-SIM-EN Revision 1.0...
  • Page 21: Safety

    SP-F-SIM Flame Simulators USER MANUAL 8 Safety • Do not try to open, modify or repair the Flame Simulator. • Inspection and maintenance of this equipment should be performed by suitable trained personnel, in accordance with the applicable code of practice, e.g. EN 60079-17.
  • Page 22 SP-F-SIM Flame Simulators USER MANUAL SP-F-SIM-EN Revision 1.0...
  • Page 23: Ue Declaration Of Conformity

    SP-F-SIM Flame Simulators USER MANUAL 9 UE Declaration of Conformity SP-F-SIM-EN Revision 1.0...
  • Page 24 Cypress, TX 77429 62027 Arras cedex Ruiping Road, Xuhui District, France Shanghai, China Tel.: +1-713-559-9200 Tel.: +33 (0) 3 21 60 80 80 TGFD_APAC@Teledyne.com www.teledynegasandflamedetection.com © 2023 Teledyne Gas and Flame Detection. All right reserved. SP-F-SIM-EN Revision 1.0 /February 2023...
