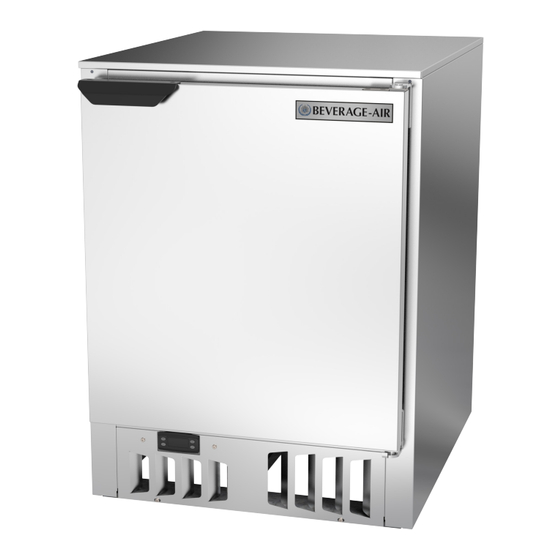

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all FLG Glass Froster Models 809-185a Rev B. 10/29/2020 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com...
-
Page 2: Table Of Contents
User Manual for FLG Glass Frosters Beverage-Air WELCOME Congratulations on your purchase of Beverage-Air food Additionally, Beverage-Air food service equipment has service equipment. Every employee welcomes you to the one of the best warranties in the food service industry, family of satisfied Beverage-Air customers. -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Beverage-Air factory service parts. Use of • Store gasoline, kerosene or any other flammable non OEM parts can be dangerous because of the design material near the cabinet. -
Page 4: Important Information
User Manual for FLG Glass Frosters Beverage-Air IMPORTANT INFORMATION This unit is intended to be used in a commercial application. That includes bars and restaurants. If installed in a residence some commercial service companies may not be able to service it on site. -
Page 5: Product Information
User Manual for FLG Glass Frosters Beverage-Air PRODUCT INFORMATION Cabinet Dimensions Half or Full Full Load Power Cord Refrigerant Type / Model Door Type w x d x h (Inches) Door Amps Plug (NEMA) Charge (g) 5-15P R-290 / 45*... -
Page 6: Unpacking And Set Up
User Manual for FLG Glass Frosters Beverage-Air UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. - Page 7 User Manual for FLG Glass Frosters Beverage-Air Skid Removal and Caster Attachment Tip the unit forward and remove the skid. Note: This model is designed and shipped to be mounted onto a level floor and because it is front breathing, needs no spaces for air flow on the bottom, WARNING back, top or sides.
-
Page 8: Shelf Installation
4. Install all remaining clips. manner. Contact Beverage-Air customer service if fewer shelves or a different configuration to ensure 5. Install shelves onto clips with the product retention shelf overloading will not occur. -
Page 9: Electrical
User Manual for FLG Glass Frosters Beverage-Air ELECTRICAL This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the machine to confirm the voltage and per the dataplate use the correct fuses or HACR circuit breakers. -
Page 10: Using The Unit
User Manual for FLG Glass Frosters Beverage-Air USING THE UNIT Operation is simple, just keep it connected to the correct The froster will automatically defrost as needed, there is power supply and the froster will maintain the internal no set time for defrost. Push and immediately release the temperature it has been set to. -
Page 11: Sequence Of Operations Freezer
User Manual for FLG Glass Frosters Beverage-Air SEQUENCE OF OPERATIONS FREEZER The freezer operates based on the air temperature measured by the probe located at the return air. CONTROLLER CONTROLLER COMPONENT OPERATION OPERATION ACTION ACTION Compressor turns Compressor turns The Compressor Contact... - Page 12 User Manual for FLG Glass Frosters Beverage-Air Condition Cabinet Temp > Set point + 2.5 Cabinet Temperature <= Set point - 2.5 Defrost Electronic Controller DEFROST (ESC) DOWN SELECT (OK) Control Panel Display Defrost LED Alarm LED On fixed: Defrost active...
- Page 13 User Manual for FLG Glass Frosters Beverage-Air Keyboard Functions DEFROST (ESC) DOWN SET (ENTER) Quick press and release Quick press and release Quick press and release Quick press and release • Activates manual defrost • Increases Set Point • Decreases Set Point •...
- Page 14 User Manual for FLG Glass Frosters Beverage-Air Electronic Controller Alarms The alarm condition is always signaled by the alarm icon . To turn off the relative icon will continue flashing. NOTE: If alarm exclusion times are in progress (ALA folder of the parameter table), the alarm is not signaled.
-
Page 15: Cleaning And Maintenance
User Manual for FLG Glass Frosters Beverage-Air CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Quarterly cleaning Daily inspection, check Annually that hinges are tight to Weekly interior the cabinet. Daily Exterior Cleaning It is much easier to clean on a regular basis than to have to remove stains once they have built up. -
Page 16: Condenser Cleaning
User Manual for FLG Glass Frosters Beverage-Air CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient 4. Remove the back panel and set aside. operation. 5. Remove the two screws holding the condensing unit 1. Unplug unit from power supply. -
Page 17: Methods For Cleaning Stainless Steel
User Manual for FLG Glass Frosters Beverage-Air METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 18: Help
User Manual for FLG Glass Frosters Beverage-Air HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Replace Unit not plugged in. fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 19: For The Service Tech - R290
User Manual for FLG Glass Frosters Beverage-Air FOR THE SERVICE TECH - R290 Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems. Here are some critical service items. Other Information: This list does not qualify anyone to service the unit. It is a Evacuation: It is critical that a refrigeration system be reminder and checklist for the service tech. -
Page 20: For The Service Tech - Wiring Diagram
User Manual for FLG Glass Frosters Beverage-Air FOR THE SERVICE TECH - WIRING DIAGRAM CNTRL *SEE CONTROLLER DETAIL COMPRESSOR DETAIL CONDENSER FAN START RELAY S.C. COMP R.C. *SEE CONTROLLER DETAIL FACE HEATER DOOR HEATER GLASS DOOR MODELS ONLY *SEE CONTROLLER DETAIL... -
Page 21: Limited Warranty
(87) months from the date of defective. shipment from Beverage-Air, provided upon receipt of the The labor warranty shall be for self-contained units compressor, manufacturer examination shows the sealed only and for standard straight time, which is defined as compressor to be defective. -
Page 22: Limited Warranty (Continued)
With the exception of Blast Chillers product is designed for LIMITATION OF LIABILITY: maintaining temperature and not bringing food to a desired Beverage-Air Corporation or their affiliates shall not be temperature therefore cannot be held responsible for this liable for any indirect, incidental, special or consequential function under warranty. - Page 23 User Manual for Glass Frosters Beverage-Air Warranty Registration Register your product online at beverage-air.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
