- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all Hydrocarbon PF Freezer Models 809-213A 12/4/2020 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com...
-
Page 2: Table Of Contents
User Manual for PF Freezers Beverage-Air WELCOME Congratulations on your purchase of Beverage-Air food Additionally, Beverage-Air food service equipment has service equipment. Every employee welcomes you to the one of the best warranties in the food service industry, family of satisfied Beverage-Air customers. -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Beverage-Air factory service parts. Use of • Store gasoline, kerosene or any other flammable non OEM parts can be dangerous because of the design material near the cabinet. -
Page 4: Safety
User Manual for PF Freezers Beverage-Air SAFETY CAUTION: If it is necessary to move the Refrigerator after removal from the skid, CAUTION remove all doors and carefully push the unit at a point of no more than 36” from the bottom to avoid damage. -
Page 5: Important Information
User Manual for PF Freezers Beverage-Air IMPORTANT INFORMATION This unit is intended to be used in a commercial application. That includes bars and restaurants. If installed in a residence some commercial service companies may not be able to service it on site. -
Page 6: Product Information

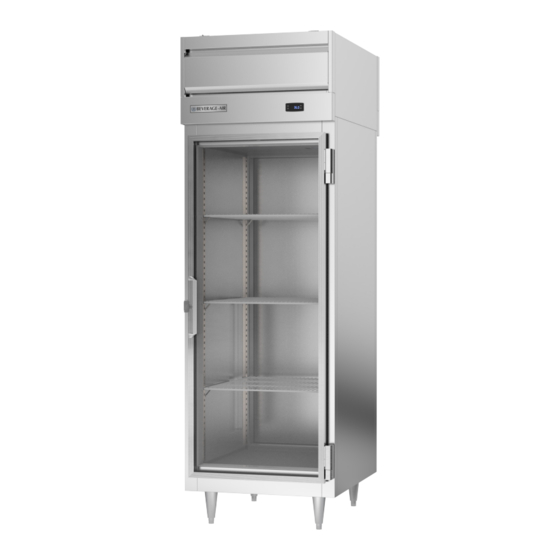

/ Charge g / w x d x h (Inches) Full Door Plug (NEMA) Door Amps Charge oz FB12HC-1G 24 x 26 x 67 /38 Glass R-290 / 51 / 1.79 FB12HC-1S 24 x 26 x 67 /38 Solid FB23HC-1G... -
Page 7: Clearance And Placement
User Manual for PF Freezers Beverage-Air CLEARANCE AND PLACEMENT 12" AT 0" AT REAR 0" AT BOTTOM 0" AT SIDES Placement Consider the following when selecting a location for your freezer: Clearance: • 12 in. at the top • 0.0 in. at the rear, •... -
Page 8: Unpacking And Set Up
User Manual for PF Freezers Beverage-Air UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. -
Page 9: Shelf Installation
4. Install all remaining clips. manner. Contact Beverage-Air customer service if fewer shelves or a different configuration to ensure 5. Install shelves onto clips with the product retention shelf overloading will not occur. -
Page 10: Electrical
User Manual for PF Freezers Beverage-Air ELECTRICAL This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the machine to confirm the voltage and per the dataplate use the correct fuses or HACR circuit breakers. -
Page 11: Door Reversal Instructions
User Manual for PF Freezers Beverage-Air DOOR REVERSAL INSTRUCTIONS 1. Remove hinge cover 2. Remove door from the unit to include the hinge mounting brackets 3. Remove white hole covers from the side of the door opening you would like the hinges to be located (do not throw away) 4. -
Page 12: Using The Unit
User Manual for PF Freezers Beverage-Air USING THE UNIT Operation is simple, just keep it connected to the correct The temperature was set at the factory at 0 F, but you can º power supply and the refrigerator will maintain the adjust it to your own selected temperature. -
Page 13: Sequence Of Operations
User Manual for PF Freezers Beverage-Air SEQUENCE OF OPERATIONS COMPONENT OPERATION CONTROLLER ACTION OPERATION CONTROLLER ACTION COMPRESSOR Compressor turns The Compressor Compressor turns The Compressor on when the cabinet Contact is energized off when the cabinet Contact is de- temperature is above... -
Page 14: Control Panel Display
User Manual for PF Freezers Beverage-Air CONTROL PANEL DISPLAY Icon Operation Meaning Compressor Permanently On Compressor On Blinking Delay, protection or start-up blocked Otherwise Defrost Permanently On Defrost active Blinking Activated manually or from Digital input Otherwise Fans Permanently On... - Page 15 User Manual for PF Freezers Beverage-Air Relay/Probe Description Terminal Compressor 10,11 Out 1 Evaporator Fan 4, 5 Out 2 Defrost Element 7, 9 Out 3 Light (or alarm relay if electronic Lock model) 13, 14 Out 4 Air/control probe 18, 19 PB1 –...
-
Page 16: Electronic Controller Parameter Changes
User Manual for PF Freezers Beverage-Air ELECTRONIC CONTROLLER PARAMETER CHANGES Note: Key pad has a 3 second lock feature. Set key must be pressed for 3 seconds and released before keys will become active. Key pad will beep when unlocked and normal key pad operations performed. -
Page 17: Setting The Real Time Clock
User Manual for PF Freezers Beverage-Air SETTING THE REAL TIME CLOCK To set the real time clock, press and release the set button to enter the machine status menu. “Set will appear on the menu. Use the up and down button to scroll to the real time clock menu folder. “Rtc” will appear on the display. - Page 18 User Manual for PF Freezers Beverage-Air Beverage-Air Rev. 12/20...
- Page 19 User Manual for PF Freezers Beverage-Air Code Description Description Relay Reset Parameters involved to Enable alarm Probe Pb1 failure Active Automatic Ont, Oft Probe Pb2 failure Active Automatic Ont, Oft Probe Pb3 failure Active Automatic Ont, Oft Probe Pb4 failure...
-
Page 20: Cleaning And Maintenance
User Manual for PF Freezers Beverage-Air CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Quarterly cleaning Daily inspection, check Annually that hinges are tight to Weekly interior the cabinet. Daily Exterior Cleaning It is much easier to clean on a regular basis than to have to remove stains once they have built up. -
Page 21: Condenser Cleaning
User Manual for PF Freezers Beverage-Air CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient Keeping the condenser coil clean is critical to efficient operation. operation. 1. Unplug unit from power supply. 1. Unplug unit from power supply. -
Page 22: Methods For Cleaning Stainless Steel
User Manual for PF Freezers Beverage-Air METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 23: Help
User Manual for PF Freezers Beverage-Air HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Replace Unit not plugged in. fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 24: For The Service Tech - R290
User Manual for PF Freezers Beverage-Air FOR THE SERVICE TECH - R290 Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems. Here are some critical service items. Other Information: This list does not qualify anyone to service the unit. It is a Evacuation: It is critical that a refrigeration system be reminder and checklist for the service tech. -
Page 25: For The Service Tech - Single System Wiring Diagram
User Manual for PF Freezers Beverage-Air FOR THE SERVICE TECH - SINGLE SYSTEM WIRING DIAGRAM WHITE BLACK 115VAC 60 HZ BLACK EVAP FAN RELAY CONTROL CIRCUIT DEFROST HEATERS DEF RELAY HEATER SAFETY THERMAL SWITCH COMPRESSOR DETAIL CONDENSER FAN START RELAY S.C. -
Page 26: For The Service Tech - Two System Wiring Diagram
User Manual for PF Freezers Beverage-Air FOR THE SERVICE TECH - TWO SYSTEM WIRING DIAGRAM 115V FREEZER BLACK WHITE 115VAC 60 HZ BLACK EVAP FAN RELAY EVAP CONTROL CIRCUIT DEF RELAY HEATER SAFETY DEFROST HEATERS THERMAL SWITCH COMPRESSOR DETAIL CONDENSER FAN... -
Page 27: Limited Warranty
(87) months from the date of defective. shipment from Beverage-Air, provided upon receipt of the The labor warranty shall be for self-contained units compressor, manufacturer examination shows the sealed only and for standard straight time, which is defined as compressor to be defective. -
Page 28: Limited Warranty (Continued)
With the exception of Blast Chillers product is designed for LIMITATION OF LIABILITY: maintaining temperature and not bringing food to a desired Beverage-Air Corporation or their affiliates shall not be temperature therefore cannot be held responsible for this liable for any indirect, incidental, special or consequential function under warranty. - Page 29 User Manual for PF Freezers Beverage-Air Warranty Registration Register your product online at beverage-air.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
