Summary of Contents for Beverage-Air WTF27AHC-25

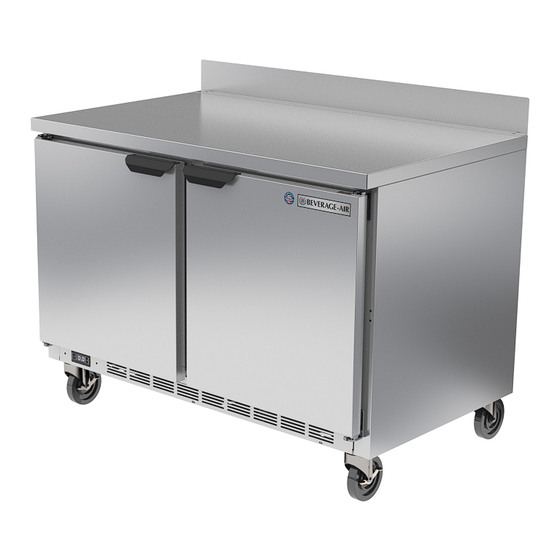

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all WTF Worktop Freezer Models 809-171A REV B 10/29/2020 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com...
-
Page 2: Table Of Contents
User Manual for WTF Freezers Beverage-Air WELCOME Congratulations on your purchase of Beverage-Air food Additionally, Beverage-Air food service equipment has service equipment. Every employee welcomes you to the one of the best warranties in the food service industry, family of satisfied Beverage-Air customers. -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Beverage-Air factory service parts. Use of • Store gasoline, kerosene or any other flammable non OEM parts can be dangerous because of the design material near the cabinet. -
Page 4: Safety
User Manual for WTF Freezers Beverage-Air SAFETY Note: The top panel of this unit can be damaged by standing on it. Damage like that is NOT covered by warranty. WARNING Risk of Personal Injury From Falling Stay OFF top of unit Beverage-Air Rev. -
Page 5: Important Information
User Manual for WTF Freezers Beverage-Air IMPORTANT INFORMATION This unit is intended to be used in a commercial application. That includes schools and cafeterias. If installed in a residence some commercial service companies may not be able to service it on site. -
Page 6: Product Information
1 Door WTF27AHC 27 x 32 1/8 x 39 5/8 5-15P R-290 / 45 / 1.59 Solid 1 Door WTF27AHC-25 24 x 32 x 39 5/8 5-15P R-290 / 55 / 1.94 Glass 1 Door WTFD27AHC 24 x 32 x 39 5/8 5-15P R-290 / 45 / 1.59... -
Page 7: Clearance And Placement
User Manual for WTF Freezers Beverage-Air CLEARANCE AND PLACEMENT 0" 3 13/16" 2" LEFT/RIGHT SIDE BOTTOM REAR MINIMUM MINIMUM MINIMUM CLEARANCE CLAERANCE CLEARANCE Placement Consider the following when selecting a location for your freezer: Clearance: • 0 in. at the top •... -
Page 8: Unpacking And Set Up
User Manual for WTF Freezers Beverage-Air UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. -
Page 9: Shelf Installation
4. Install all remaining clips. manner. Contact Beverage-Air customer service if fewer shelves or a different configuration to ensure 5. Install shelves onto clips with the product retention shelf overloading will not occur. -
Page 10: Electrical
User Manual for WTF Freezers Beverage-Air ELECTRICAL This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the machine to confirm the voltage and per the dataplate use the correct fuses or HACR circuit breakers. -
Page 11: Using The Unit
User Manual for WTF Freezers Beverage-Air USING THE UNIT Operation is simple, just keep it connected to the correct The freezer will automatically defrost as needed, there is power supply and the freezer will maintain the internal no set time for defrost. Push and immediately release the temperature it has been set to. -
Page 12: Sequence Of Operations Freezer
User Manual for WTF Freezers Beverage-Air SEQUENCE OF OPERATIONS FREEZER The freezer operates based on the air temperature measured by the probe located at the return air. CONTROLLER CONTROLLER COMPONENT OPERATION OPERATION ACTION ACTION Compressor turns Compressor turns The Compressor Contact... - Page 13 User Manual for WTF Freezers Beverage-Air Condition Cabinet Temp > Set point + 2.5 Cabinet Temperature <= Set point - 2.5 Defrost Electronic Controller DEFROST (ESC) SELECT (OK) DOWN Control Panel Display Defrost LED Alarm LED On fixed: Defrost active...
- Page 14 User Manual for WTF Freezers Beverage-Air Keyboard Functions DEFROST (ESC) DOWN SET (ENTER) Quick press and release Quick press and release Quick press and release Quick press and release • Activates manual defrost • Increases Set Point • Decreases Set Point •...
- Page 15 User Manual for WTF Freezers Beverage-Air Control Panel Connections Changing the Set point Rev. 10/20 Beverage-Air...
- Page 16 User Manual for WTF Freezers Beverage-Air Keyboard Functions Electronic Controller Alarms The alarm condition is always signaled by the alarm icon . To turn off the relative icon will continue flashing. NOTE: If alarm exclusion times are in progress (ALA folder of the parameter table), the alarm is not signaled.
-
Page 17: Cleaning And Maintenance
User Manual for WTF Freezers Beverage-Air CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Quarterly cleaning Daily inspection, check Annually that hinges are tight to Weekly interior the cabinet. Daily Exterior Cleaning It is much easier to clean on a regular basis than to have to remove stains once they have built up. -
Page 18: Drawer Cleaning And Maintenance
User Manual for WTF Freezers Beverage-Air DRAWER CLEANING AND MAINTENANCE Drawer models are shipped with the drawers already installed in the cabinets. Drawers are designed with slides which have locking mechanisms to prevent drawers from coming off cabinets during normal opening and closing operations. -
Page 19: Condenser Cleaning
User Manual for WTF Freezers Beverage-Air CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient 6. To reinstall the rear panel line up the bottom of the operation. panel to the bottom of the unit keeping the screw holes lined up on the panel and on the unit. -
Page 20: Methods For Cleaning Stainless Steel
User Manual for WTF Freezers Beverage-Air METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 21: Help
User Manual for WTF Freezers Beverage-Air HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Replace Unit not plugged in. fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 22: For The Service Tech - R290
User Manual for WTF Freezers Beverage-Air FOR THE SERVICE TECH - R290 Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems. Here are some critical service items. Other Information: This list does not qualify anyone to service the unit. It is a Evacuation: It is critical that a refrigeration system be reminder and checklist for the service tech. -
Page 23: For The Service Tech - Wiring Diagram
User Manual for WTF Freezers Beverage-Air FOR THE SERVICE TECH - WIRING DIAGRAM CNTRL *SEE CONTROLLER DETAIL COMPRESSOR DETAIL CONDENSER FAN START RELAY S.C. COMP R.C. *SEE CONTROLLER DETAIL FACE HEATER DOOR HEATER GLASS DOOR MODELS ONLY *SEE CONTROLLER DETAIL... -
Page 24: Limited Warranty
(87) months from the date of defective. shipment from Beverage-Air, provided upon receipt of the The labor warranty shall be for self-contained units compressor, manufacturer examination shows the sealed only and for standard straight time, which is defined as compressor to be defective. -
Page 25: Limited Warranty (Continued)
With the exception of Blast Chillers product is designed for LIMITATION OF LIABILITY: maintaining temperature and not bringing food to a desired Beverage-Air Corporation or their affiliates shall not be temperature therefore cannot be held responsible for this liable for any indirect, incidental, special or consequential function under warranty. - Page 26 User Manual for WTF Freezers Beverage-Air Warranty Registration Register your product online at beverage-air.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
