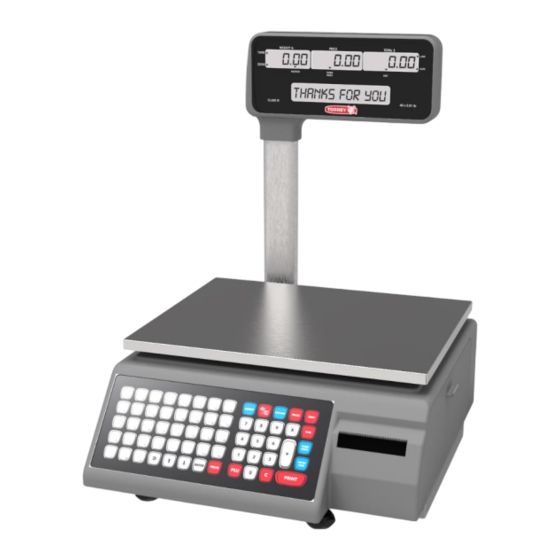

OWNER'S MANUAL
LABELING PRINTING SCALES
W-LABEL Series
BEFORE OPERATING THIS SCALE, PLEASE READ THIS MANUAL THOROUGHLY
REV 0
REV 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W-LABEL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torrey W-LABEL Series

Summary of Contents for Torrey W-LABEL Series

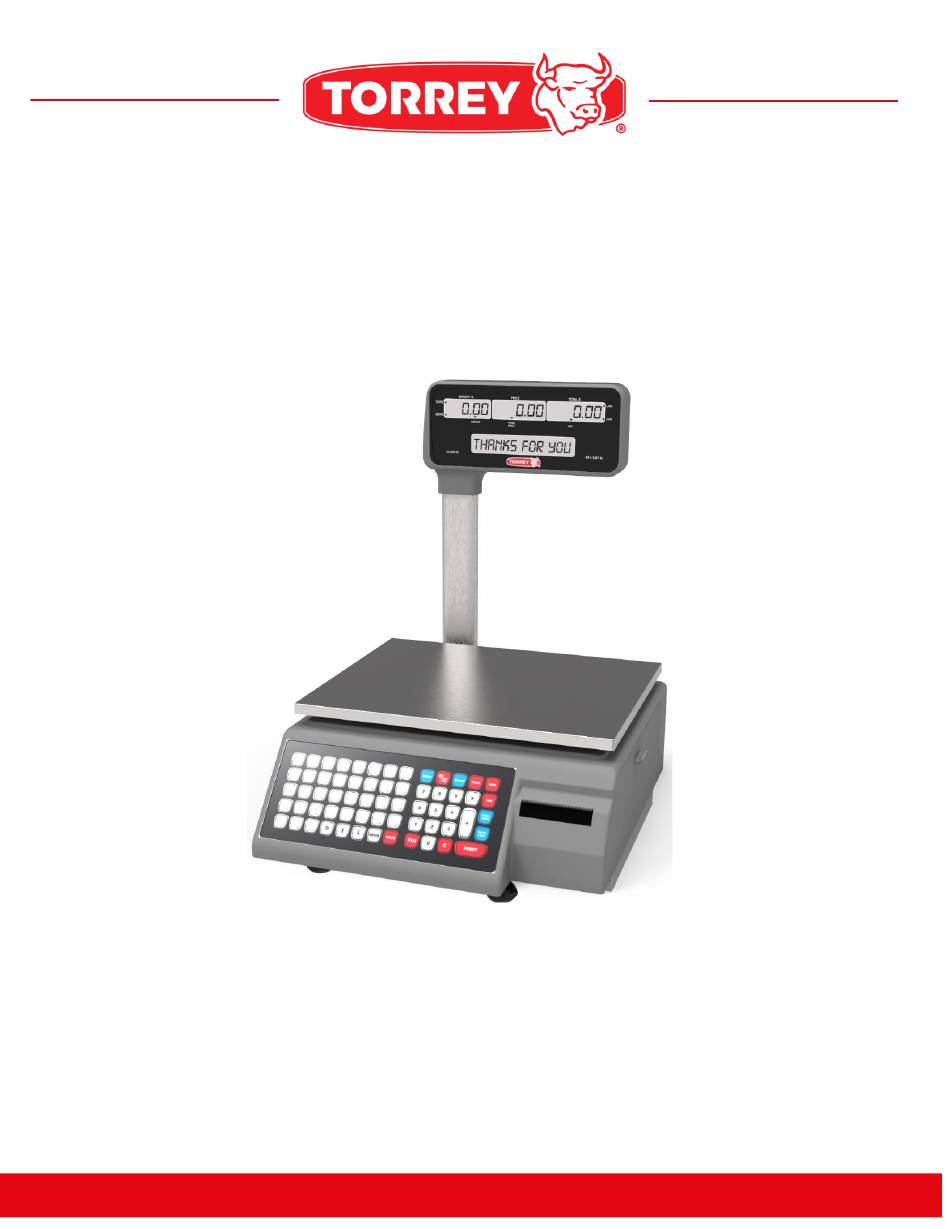

  • Page 1 OWNER’S MANUAL LABELING PRINTING SCALES W-LABEL Series BEFORE OPERATING THIS SCALE, PLEASE READ THIS MANUAL THOROUGHLY REV 0 REV 2...
