ECAM22X.2Y - 22X.3Y - FEB222X - 223X
BEAN TO CUP ESPRESSO AND
CAPPUCCINO MACHINE
Instructions for Use

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAGNIFICA START FEB222 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DeLonghi MAGNIFICA START FEB222 Series

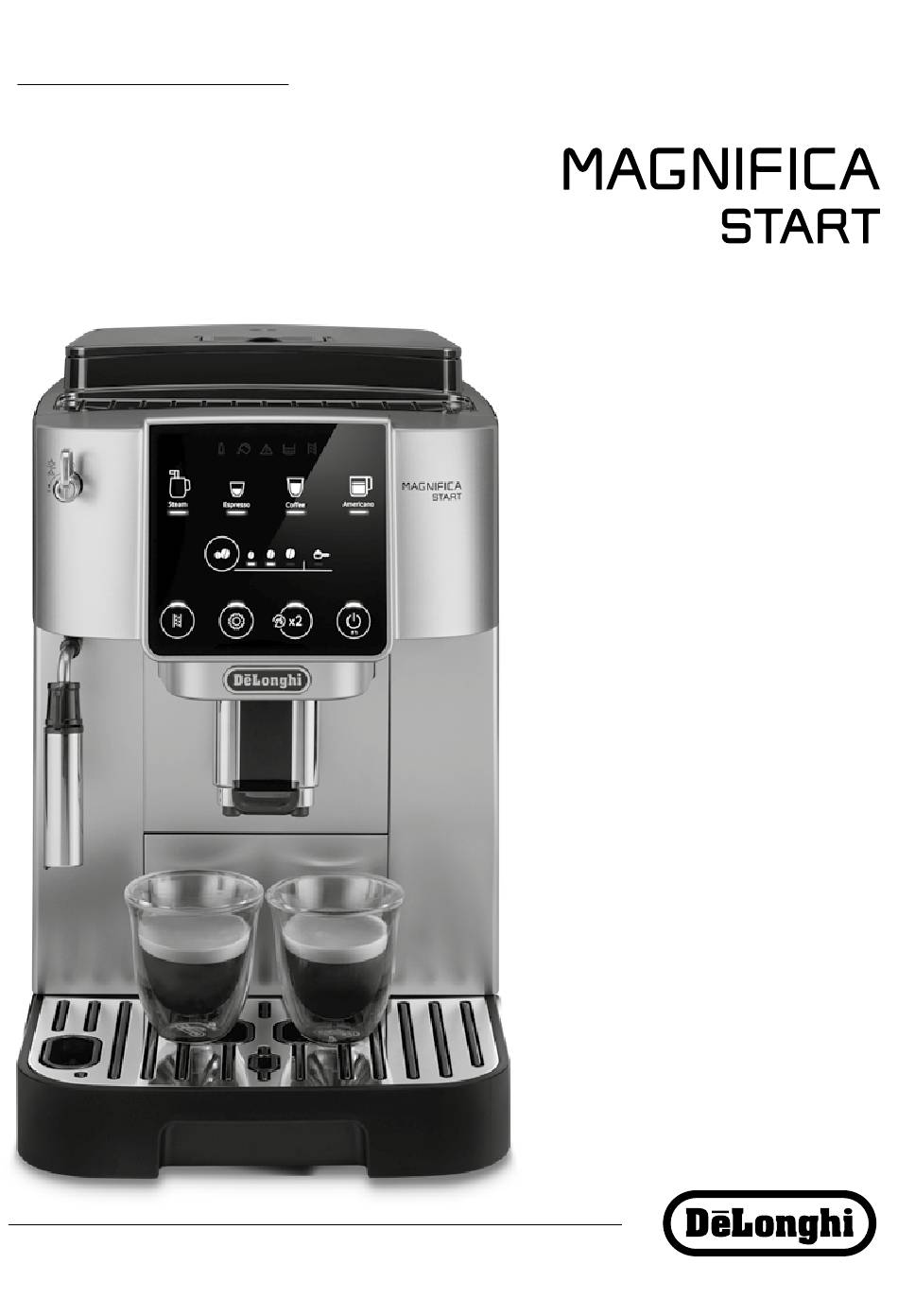

  • Page 1 ECAM22X.2Y - 22X.3Y - FEB222X - 223X BEAN TO CUP ESPRESSO AND CAPPUCCINO MACHINE Instructions for Use...
  • Page 3 Decalci cante per macchine da ca è Descaler for co ee machines Détartrant pour machines à café Entkalker für Ka eemaschinen De’Longhi Appliances s.r.l. Via L. Seitz, 47 31100 Treviso - ITALY Tel. +39 0422 4131 5413218631/04.15 Option 1 Option 2 ✕...
  • Page 4: Table Of Contents

    Before using the appliance for the first time, be CONTENTS sure to read the safety warnings. 1. INTRODUCTION ........4 1.1 Letters in brackets ........4 1. INTRODUCTION 1.2 Troubleshooting and repairs ....4 Take a few minutes to read these Instructions for Use. This will 2.
  • Page 5: Description Of Control Panel - B

    A9. Water tank proof of the meticulous care and attention we invest in A10. Coffee grounds container our products. A11. Drip tray (varies according to model) • The first time the machine is used, the water circuit will be empty and the appliance could be very noisy.The noise A12.
  • Page 6: Measuring Water Hardness

    3. Remove the paper from the water and shake lightly (fig. 5. Press the button(B3) (fig. 7): the internal water 9). After about a minute, 1, 2, 3, or 4 red squares appear, circuits start to fill and the appliance will release hot water depending on the hardness of the water.
  • Page 7: Making Coffee Drinks

    Please note: 5. Preparation begins and the Led corresponding to the se- If the appliance is not going to be used for some time, unplug lection flashes on the control panel (B). it from the mains socket: 7.2 Making 2 cups of coffee •...
  • Page 8: General Indications For Making Coffee-Based Drinks

    measure of pre-ground coffee and press the Long button stop automatically (to terminate the cycle sooner, press again. the same button a second time). Please note: Doppio+ coffee using • It is not possible to make a • If the appliance is not used for more than 3- 4 days, when pre-ground coffee.
  • Page 9: Making Cappuccino

    Danger of scalding! 8. MAKING CAPPUCCINO When cleaning the steam/hot water spout, a little hot water will be released. Take care to avoid contact with splashes of 8.1 What milk to use water. The quality of the froth will vary depending on: 1.
  • Page 10: Water Softener Filter

    De’Longhi water softener filter. 0,5 L For more information, visit the www.delonghi.com website. EAN: 8004399327252 7. See instructions in section “12. Settings menu” for instal- To use the filter correctly, follow the instructions below.
  • Page 11: Tips For Energy Saving

    11. TIPS FOR ENERGY SAVING • Set auto-off to 15 minutes (see “12. Settings menu”); • Enable Energy Saving (see “12. Settings menu”); • Always carry out the descaling cycle when prompted by the machine. 12. SETTINGS MENU When in the menu, use the active buttons to select the corresponding functions: Coffee temperature Auto-off Water hardness...
  • Page 12 2. Adjust the machine settings: Water softener filter Confirm selection Press the intensity button FILTER IN PLACE repeatedly until the Leds relative to the desired setting light up FILTER REMOVED Beep Confirm selection Press the intensity button repeatedly until the Leds relative to the desired setting light up Coffee temperature...
  • Page 13: Exit The Menu

    LEVEL 1 Water hardness Confirm selection Press the intensity button repeatedly until the Led corresponding to the LEVEL 2 required level lights up LEVEL 3 LEVEL 4 15 MINUTES Auto-off Press the intensity button Confirm selection repeatedly until the Led corresponding to the 30 MINUTES required time setting...
  • Page 14: Reset Default Values

    12.1 Reset default values Make sure the machine is in stand-by (off, but connected to the mains power supply). Press the buttons corresponding to drinks 1, 2 and hold for 5 seconds. All the settings and drink quantities are reset to the default values.
  • Page 15 Component Frequency Procedure Grounds container (A10) • Remove the drip tray (A11), empty and clean. When the indicator (B12) lights up, • Empty the grounds container and clean thoroughly the grounds container must be emptied: to remove all residues that may have collected on the machine cannot now make coffee.
  • Page 16: Cleaning The Infuser

    14. CLEANING THE INFUSER 10. Close the infuser door; 11. Put the water tank back. Important! The infuser (A6) cannot be removed while the machine is on. 15. DESCALING • Before use, read the instructions and the labelling on the 1.
  • Page 17 4. Position an empty container of at least 2 litres capacity 9. Press the button (which blinks rapidly) to start the under the coffee spout (A15) and under the cappuccino rinse: the medium intensity Led blinks to indicate that maker (A17) (fig. 29). step 2 of the descale cycle is in progress;...
  • Page 18: Explanation Of Lights

    Please note: Indicator/Led Meaning • After descaling, it is normal for the grounds container to General alarm: the inside of contain water. the machine is very dirty. • If the water tank has not been filled to the MAX level Clean the machine thor- after descaling, the appliance prompts for a third rinse oughly.
  • Page 19 Indicator/Led Meaning Indicator/Led Meaning Too much coffee has been grounds container needs emptying (A10). used. Select a milder taste or reduce the quantity of pre-ground coffee. The grounds container (A10) is missing, or not inserted A selection has been made correctly: insert the drip tray using pre-ground coffee complete with grounds con-...
  • Page 20: Troubleshooting

    17. TROUBLESHOOTING Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact customer services. PROBLEM POSSIBLE CAUSE REMEDY The appliance does not come on. It is not plugged into the mains socket. Plug into the mains socket.
  • Page 21: Technical Data

    PROBLEM POSSIBLE CAUSE REMEDY The infuser cannot be extracted. The machine has not been turned off. Turn the machine off by pressing the button. On completion of the descale cycle, the During the two rinse cycles, the water Restart the descaling procedure from “Step machine calls for a further rinse tank has not been filled to the MAX level Second rinse”.
  • Page 22 De’Longhi Appliances via Seitz, 47 31100 Treviso, Italy delonghi.com...
