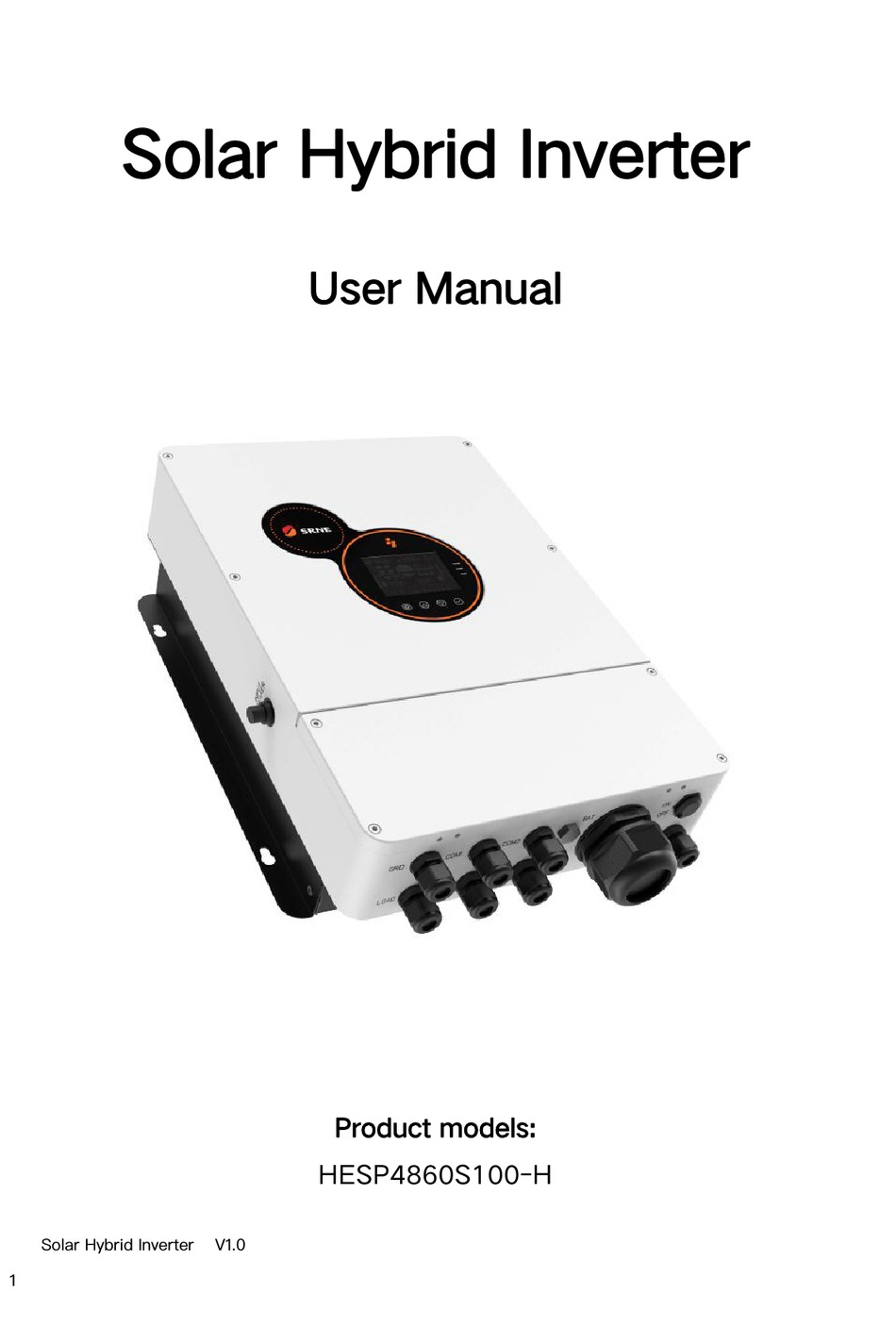

Solar Hybrid Inverter
User Manual
Product models:
HESP4860S100-H
Solar Hybrid Inverter
V1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HESP4860S100-H and is the answer not in the manual?

Questions and answers

Related Manuals for Srne HESP4860S100-H

Summary of Contents for Srne HESP4860S100-H

  • Page 1 Solar Hybrid Inverter User Manual Product models: HESP4860S100-H Solar Hybrid Inverter V1.0...
  • Page 2 Important safety instructions Please keep this manual for future use. This manual contains all safety, installation and operating instructions for the HESP Series all-in-one solar charge inverter. Please read all instructions and precautions in the manual carefully before installation and use. ...

  • Page 3: Table Of Contents

    CONTENTS 1. GENERAL INFORMATION ..............4 1.1 P ............ 4 RODUCT OVERVIEW AND FEATURES 1.2 B ............. 4 ASIC SYSTEM INTRODUCTION 1.3 A ..................5 PPEARANCE 1.4 D ................6 IMENSION DRAWING 2. INSTALLATION INSTRUCTIONS ............8 2.1 I ..............8 NSTALLATION PRECAUTIONS 2.2 W ....

  • Page 4: General Information

    1. General information 1.1 Product overview and features HESP series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard.

  • Page 5: Appearance

    The figure below shows the system application scenario of this product. A complete system consists of the following parts: 1. PV module: Convert light energy into DC power, and charge the battery through the all-in-one solar charge inverter, or directly invert into AC power to drive the load. 2.

  • Page 6: Dimension Drawing

    ⑨ ① Indicator light AC input ② ⑩ LCD screen RS485-2 Communication Port ③ ⑪ Touch button USB communication port ④ ⑫ PV terminal RS485-1 Communication Port ⑤ ⑬ Battery terminal Dry-contact port ⑥ ⑭ Parallel communication A port Overload protector ⑦...
  • Page 7 Solar Hybrid Inverter V1.0...

  • Page 8: Installation Instructions

    2. Installation instructions 2.1 Installation precautions Please read this manual carefully prior to installation to familiarize yourself with the installation steps. Be very careful when installing the battery. Wear safety goggles when installing a lead-acid  liquid battery. Once coming into contact with the battery acid, rinse with clean water timely. Do not place metal objects near the battery to prevent short-circuit of the battery.
  • Page 9 6mm 2 /10AWG HESP4860S100-H 2P—25A Note: The voltage in series shall not exceed the maximum PV input open circuit voltage. Refer to the table below for recommended AC input wire diameter and switch: ...

  • Page 10: Installation And Wiring

    Recommended Rated inverter Maximum Recommended Models AC output wiring AC output bypass output circuit breaker type diameter current current 10mm 2 /7AWG HESP4860S100- 2P—40A Note: The wiring diameter is for reference only. If the distance between the PV array and the all-in-one solar charge inverter or the distance between the all-in-one solar charge inverter and the battery is relatively long, using a thicker wire can reduce the voltage drop to improve system performance.
  • Page 11 charge inverter, ensure that there is enough air flowing through the heat sink, and space of at least 200m m to the left and right air outlets of the inverter shall be left to ensure natural convection heat dissipation. Refer to the installation diagram of the whole machine as above. Warning: Danger of explosion! Never install the all-in-one solar charge inverter and lead-acid battery in the same confined space! Also do not install in a confined place where battery gas may collect.
  • Page 12 Step 3: Hang up the machine and tighten the screws. Step 4: Remove the terminal cover Solar Hybrid Inverter V1.0...
  • Page 13 Connect the Wire. (Note: The wire shall penetrate into the corresponding joint before Step5: crimping the terminal.) Connection method of AC I/O: Solar Hybrid Inverter V1.0...
  • Page 14 Prior to AC I/O wiring, disconnect the external circuit breaker and confirm whether the cable used is thick enough. Please refer to Chapter "2.2 Wiring Specification and Circuit Breaker Selection"; According to the cable sequence and terminal position shown in the following figure, connect the AC input line properly, please connect the grounding wire first, then connect the live wire and the neutral wire;...
  • Page 15 According to the cable sequence and terminal position shown in the following figure, connect the BAT wire properly. Ground Wire of the Entire Machine: As shown in the following figure, it is located on the bottom of the chassis and shall be be connected by O-terminal.
  • Page 16 Chapter 2.2 “Wiring Specification and Circuit Breaker Selection” for their selection; prior to wiring, please be sure to disconnect the circuit breaker to prevent strong electric spark in the process of wiring and avoid short-circuiting the battery in the process of wiring; if the inverter is applied in any area with frequent lightning, it is recommended to install an external surge protection device at PV input.

  • Page 17: Parallel Machine Wire Connection

    2.4 Parallel machine wire connection 2.4.1 Introduction Up to six units connected in parallel. When using the parallel operation function, the following connecting lines (package accessories) shall be firmly and reliably connected: Parallel communication line*1: 2.4.2 Precautions for connecting the parallel connecting lines Warning: PV connection: When used in parallel connection, different machines need to be connected to different PV...
  • Page 18 solar charger inverters. The L lines of all inverters connected to the same phase need to be connected together. But L lines of different phases cannot be joined together. Other connection precautions are the same as parallel connection in single phase. For specific wiring, please refer to 2.4.4Wiring Diagram AC IN wiring: Parallel connection in single phase: Ensure L-to-L, N-to-N and PE-to-PE connection for all...

  • Page 19: Schematic Diagram Of Parallel Connection In Single Phase

    are not manually exchanged, and make sure to tighten the lines with self-contained screws to avoid the abnormal operation or damage of the system output caused by abnormal parallel current sharing detection. For specific wiring, please refer to 2.4.3 Wiring Diagram. Parallel connection in three-phase: The current sharing detection lines of all inverters connected to the same phase need to be connected together.
  • Page 20 b） Three all-in-one solar charger inverters of the system connected in parallel: Solar Hybrid Inverter V1.0...
  • Page 21 c） Four all-in-one solar charger inverters of the system connected in parallel: d） Five all-in-one solar charger inverters of the system connected in parallel: Solar Hybrid Inverter V1.0...

  • Page 22: Schematic Diagram Of Parallel Connection In Three Phase

    e） Six all-in-one solar charger inverters of the system connected in parallel: 2.4.5 Schematic diagram of parallel connection in three phase 1. The parallel communication line and current sharing detection line of the all-in-one solar charger inverter need to be locked with screws after connecting. The schematic diagram is as follows: Solar Hybrid Inverter V1.0...
  • Page 23 In case of parallel operation with multiple inverters, the schematic diagram of parallel connection is as follows: Parallel Operation in three phase : a） Three all-in-one solar charger inverters of the system connected in three phase: 1+1+1 system: b） Four all-in-one solar charger inverters of the system connected in three phase: 2+1+1 system: Solar Hybrid Inverter V1.0...
  • Page 24 c） Five all-in-one solar charger inverters of the system connected in three phase: 3+1+1 system: Solar Hybrid Inverter V1.0...
  • Page 25 2+2+1 system: d） Six all-in-one solar charger inverters of the system connected in three phase: 2+2+2 system: 3+2+1 system: Solar Hybrid Inverter V1.0...
  • Page 26 4+1+1 system: Note: Before starting up and running, please check whether the connection was correct to avoid any abnormalities in the system. Solar Hybrid Inverter V1.0...
  • Page 27 All wiring must be fixed and reliable to avoid wire drop during use. When the AC output is wired to the load, it shall be properly wired according to the requirements of the electrical load equipment to avoid damage to the load equipment. Settings [38] need to be set consistently or only for the host.

  • Page 28: Operating Modes

    3. Operating modes 3.1 Charging mode 1、Solar First: priority shall be given to charging by PV, and mains charging will be started only when the PV has failed. It can fully utilize solar energy to generate power in the daytime and then switch to mains charging to keep the battery level, and can be used in regions where the grid is relatively stable and the feed-in tariff is relatively expensive.

  • Page 29: Output Mode

    4、Only Solar: Only PV charging, no mains charging is initiated. This is the most energy-efficient mode and the battery power comes from solar energy, which is usually used in regions with good daylighting conditions. 3.2 Output mode 1、Solar First: PV and battery will power the load, with diversified charging modes available and output mode optional, when the Solar First Mode is selected, the use of green solar energy can be maximized for energy efficiency and emission reduction.

  • Page 30: Lcd Screen Operating Instructions

    4. LCD screen operating instructions 4.1 Operation and display panel The operation and display panel is shown below, including one LCD screen, 3 indicator lights and 4 operation buttons. Operation buttons introduction Function Key Description Menu of Enter/Exit Settings Page Number/Option Increase Page Number/Option Decrease Under the menu of Settings, OK/Enter Options Indicators introduction...
  • Page 31 Normally On: Mains Power output AC/INV Yellow Flicker: Inverter output Flicker: The battery is being charged. CHARGE Green Normally On: The charging is completed. FAULT Normally On: Fault status LCD screen introduction PAGE VAHz PV LOAD PV C HG AC C HG UNDER END OF EC O...
  • Page 32 Battery remaining capacity Load percentage is below 5% is below 5% Battery remaining capacity Load percentage is 5%~19% is 5%~19% Battery remaining capacity Load percentage is 20%~39% is 20%~39% Battery remaining capacity Load percentage is 40%~59% is 40%~59% Load percentage is 60%~79% Battery remaining capacity is 60%~79% Load percentage is 80%~100%...
  • Page 33 Indicates that the machine is Indicates that the machine is currently in an alarm or fault currently in the parameter setting state state Indicates that the PV is in a Indicates that the PV is in a state direct load state of charge Indicates that the AC is in a Indicate that the Mains Power is in...
  • Page 34 Real-time data viewing method On the LCD main screen, press the button for page turning to view the real-time data of the machine. PV side Battery side Mains side Load side Comprehensive Page parameters parameters parameters parameters parameters PV Voltage Battery Voltage AC Voltage Load Voltage...

  • Page 35: Setup Parameters Description

    4.2 Setup parameters description Key Operation Instructions: Enter the setting menu and exit the set ting menu, please press , After entering the setting menu, the parameter number [00] will flash. At this time, you can press the key to select the parameter code to be set. Then press to enter the parameter editing state, at this time, the value of the parameter flashes, adjust the value of the parameter through the...
  • Page 36 is 90~280V When the Parameter [01] = BT1ST/PV1ST, the battery voltage is lower than the set value, and Battery to Mains [04] 43.6V Default the output is switched from inverter to Mains Power, and the set range is 40V~52V. When the Parameter [01] = BT1ST/PV1ST, the battery voltage is higher than the set value, and Mains to Battery [05] 56.8V Default...
  • Page 37 GEL lead-acid battery with constant charge [08] GEL Default voltage of 56.8V and floating charge voltage of 55.2V LFP14/LFP15/LFP16 are corresponding to [08 ]LFP14/LFP15/L Battery Series of 14, 15 and 16, and their default FP16 constant charge voltages are 49.6V, 53.2V and 56.8V respectively, which can be adjusted.
  • Page 38 Battery under-voltage alarm point: when the battery voltage is lower than such criterion, under-voltage alarm will be given, the output will Battery under [14] 44V Default not be shut down, with the Set Range of voltage alarm point 40V~52V, Step of 0.4V, available when battery type is user-defined and lithium battery.
  • Page 39 Charging Start- [21] DIS Default Stop equalization charging immediately Stop [22] DIS Default NO ECO mode When the ECO mode is enabled, if the load is below 50W, the inverter output is delayed for 5 ECO mode minutes and then the output is turned off. When [22] ENA the hull switch is pressed to the "OFF"...
  • Page 40 RS485-2 port for 485-BMS communication. When [32] enables BMS communication, the corresponding lithium battery manufacturer brand should be selected for communication communication PAC=PACE，RDA=Ritar，AOG=ALLGRAND BATTERY，OLT=OLITER， protocol HWD=SUNWODA, DAQ=DAKING, WOW=SRNE, PYL=PYLONTECH， UOL=WEILAN [34] DIS Default Disable this Function PV grid-connected power generation...
  • Page 41 function connected or when the battery is full, the surplus PV energy is fed back to the grid. In the utility bypass state, when no battery is connected or when the battery is full, the load [34] TOLOAD power is supplied by the hybrid of PV and the utility.
  • Page 42 3-section end [45] 00:00:00 Default Set Range: 00: 00-23: 59: 00 charging time [46] DIS Default Disable this Function After the sectioned charging function is enabled, the power supply mode will change to BT1ST, and system will enable the mains power charging only in the set charging period or battery over Sectional charging discharge;...
  • Page 43 Current date [54] 00:00:00 Default Set Range: 00:01: 01-99:12:31 setting Current time [55] 00:00:00 Default Set Range: 00:00: 00-23:59: 59 setting [56] DIS Default Disable this Function Leakage protection function [56]ENA Enable leakage protection function Stop charging Charging stops when the default charging [57] 2A default current current is less than this setting...

  • Page 44: Battery Type Parameters

    4.3 Battery type parameters For Lead-acid Battery : Battery type Sealed lead Colloidal lead Vented lead User-defined acid battery acid battery acid battery (User) Parameters (SLD) (GEL) (FLD) 36～60V Overvoltage disconnection voltage (Adjustable) Battery fully charged recovery point(setup item 37) (Adjustable) (Adjustable) (Adjustable)
  • Page 45 For Lithium Battery : Battery type (NCM13) (NCM14) (LFP16) (LFP15) (LFP14) Parameters Overvoltage disconnection voltage Battery fully charged 50.4V 54.8V 53.6V 50.4V 47.6V recovery point(setup item (Adjustable) (Adjustable) (Adjustable) (Adjustable) (Adjustable) 53.2V 57.6V 56.8V 53.2V 49.2V Equalizing charge voltage (Adjustable) (Adjustable) (Adjustable) (Adjustable)

  • Page 46: Other Functions

    5. Other functions 5.1 Dry contact Working principle: This dry contact can control the ON/OFF of the diesel generator to charge the battery. ① Normally, the terminals are that the NC-N point is closed and the NO-N point is open; ② When the battery voltage reaches the low voltage disconnection point, the relay coil is energized, and the terminals turn to that the NO-N point is closed while NC-N point is open.

  • Page 47: Parallel Communication Function (Parallel Operation Only)

    This is a USB communication port, which can be used for USB communication with the optional PC host software. To use this port, you should install the corresponding "USB to serial chip CH340T driver" in the computer. 5.5 Parallel communication function (parallel operation only) This port is used for parallel communication, through which the parallel modules can communicate with each other.
  • Page 48 Protections Description PV current/power When charging current or power of the PV array configured exceeds limiting protection the PV rated, it will charge at the rated. At night, the battery is prevented from discharging through the PV PV night reverse- module because the battery voltage is greater than the voltage of PV current protection module.
  • Page 49 Bypass over Built-in AC input overcurrent protection circuit breaker. current protection When the discharge output current of the battery is greater than the Battery input over maximum value and lasts for 1 minute, the AC input would switched current protection to load.

  • Page 50: Fault Code

    6.2 Fault code Whether it affects the Fault code Fault name Description output or BatVoltLow Battery undervoltage alarm 【01】 Battery discharge average current BatOverCurrSw 【02】 overcurrent software protection BatOpen Battery not-connected alarm 【03】 BatLowEod Battery undervoltage stop discharge alarm 【04】 BatOverCurrHw Battery overcurrent hardware protection 【05】...
  • Page 51 PvOCHw Boost overcurrent hardware protection 【11】 OverloadBypass Bypass overload protection 【13】 OverloadInverter Inverter overload protection 【14】 AcOverCurrHw Inverter overcurrent hardware protection 【15】 InvShort Inverter short circuit protection 【17】 OverTemperMppt Buck heat sink over temperature protection 【19】 Inverter heat sink over temperature OverTemperInv 【20】...
  • Page 52 Alarm given when battery capacity rate is BatCapacityLow1 lower than 10% (setting BMS to enable 【30】 validity) Alarm given when battery capacity rate is BatCapacityLow2 lower than 5% (setting BMS to enable 【31】 validity) BatCapacityLowSto Inverter stops when battery capacity is low 【32】...
  • Page 53 If the serial number is not set by omission in Serial number error production, please contact the manufacturer 【44】 to set it Error setting of Settings item setting error 【45】 【31】 splitphase mode Check whether the communication line is connected correctly and whether [33] is set communication 【58】...

  • Page 54: Handling Measures For Part Of Faults

    6.3 Handling measures for part of faults Fault code Faults Remedy Check if the battery the PV air switch has been closed; if Display No display on the screen the switch is in the "ON" state; press any button on the screen to exit the screen sleep mode.

  • Page 55: Troubleshooting

    7.Troubleshooting In order to maintain the best long-term performance, it is recommended to conduct following  checks twice a year. Make sure that the airflow around the unit is not blocked and remove any dirt or debris from the heat sink. Check that all exposed wires are damaged by exposure to sunlight, friction with other objects around them, dryness, bite by insects or rodents, etc., and the wires shall be repaired or replaced if necessary.

  • Page 56: Technical Parameters

    8. Technical parameters Models HESP4860S100-H Parallel mode Permitted parallel number AC mode Rated input voltage 220/230Vac (170Vac~280Vac) ±2% Input voltage range (90Vac-280Vac) ±2% Frequency 50Hz/ 60Hz (Auto detection) 47±0.3Hz ~ 55±0.3Hz (50Hz); Frequency Range 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short circuit...
  • Page 57 Loaded motor capability Rated battery input voltage 48V (Minimum starting voltage 44V) Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... Battery voltage range settable on LCD screen) Power saving mode self- Non-ECO mode ≤100W; ECO mode ≤50W consumption AC Output（Grid） Rated Output Power (W) 6000W Max.
  • Page 58 Maximum PV input current PV charging current range 100A (can be set) Charging short circuit Blown fuse protection Wiring protection Reverse polarity protection Hybrid charging Max charger current specifications (AC charger+PV charger) Max charger current(can 100A be set) Certified specifications Certification CE(IEC62109-1) EMC certification level...
