Summary of Contents for National Instruments NI cRIO-9022

  • Page 1 cRIO-9022...

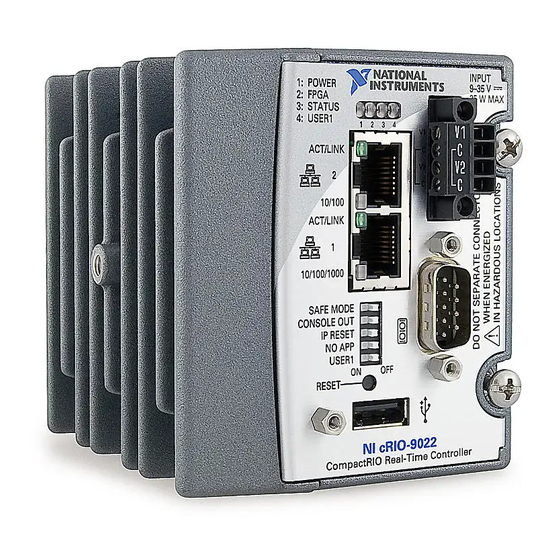

  • Page 2 USER MANUAL AND SPECIFICATIONS NI cRIO-9022 Intelligent Real-Time Embedded Controller for CompactRIO This document describes how to set up and use the NI cRIO-9022 and contains specifications for the controller. Figure 1. cRIO-9022 Front Panel 1. LEDs 6. Reset Button 2.
  • Page 3: Safety Guidelines For Hazardous Locations

    IP54 as defined in IEC/EN 60079-15. The enclosure must have a door or cover accessible only by the use of a Caution tool. 2 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 4: Electromagnetic Compatibility Guidelines

    Complete the following steps to install the cRIO-9022 on the chassis. Make sure that no power is connected to the cRIO-9022 or the chassis. Align the cRIO-9022 with the chassis as shown in the following figure. NI cRIO-9022 User Manual and Specifications | © National Instruments | 3...
  • Page 5 Using a Phillips #2 screwdriver, tighten the two captive screws on the front of the cRIO-9022 to 1.3 N · m (11.5 lb · in.) of torque. Dimensions The following figure shows the cRIO-9022 dimensions. 4 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 6 Ethernet, NI recommends using a CAT-5 or better shielded twisted-pair Ethernet cable. Related Information Configuring IP Settings and Installing Software on the cRIO-9022 on page 7 Ethernet Cabling on page 18 NI cRIO-9022 User Manual and Specifications | © National Instruments | 5...
  • Page 7: Ethernet Port

    Do not tighten or loosen the terminal screws on the power connector Caution while the cRIO-9022 is powered on. Connect the primary power supply and optional secondary power supply to the power connector, as shown in the following figure. 6 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 8 If the cRIO-9022 is on a different subnet from the host computer, it does not initially appear under Remote Systems. Use the CONSOLE OUT switch to read the IP address of the cRIO-9022, and add it to Remote Systems in MAX. NI cRIO-9022 User Manual and Specifications | © National Instruments | 7...
  • Page 9: Rs-232 Serial Port

    Use the Serial VIs to read from and write to the serial port. For more information about the Serial VIs, refer to the LabVIEW Help. Figure 6. Serial Port Pinout 8 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 10: Internal Real-Time Clock

    Figure 7. Controller DIP Switches SAFE MODE CONSOLE OUT IP RESET NO APP USER1 SAFE MODE Switch The following table describes the ON and OFF states of the SAFE MODE switch. NI cRIO-9022 User Manual and Specifications | © National Instruments | 9...
  • Page 11: Console Out Switch

    Disables console out. Keep this switch in the OFF position during normal operation. IP RESET Switch The following table describes the ON and OFF states of the IP RESET switch. 10 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 12: No App Switch

    RT Read Switch VI, refer to the LabVIEW Help. RESET Button Press the RESET button to reset the processor in the same manner as cycling power. LEDs The cRIO-9022 provides the following LEDs. NI cRIO-9022 User Manual and Specifications | © National Instruments | 11...
  • Page 13: Power Led Indicators

    The cRIO-9022 is in safe mode. The software has crashed twice pauses without rebooting or cycling power between crashes. Continuous blinks or The cRIO-9022 has detected an unrecoverable error. Please solid contact NI. 12 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 14 If the cRIO-9022 is restored to the factory network settings, the LabVIEW Note run-time engine does not load. You must reconfigure the network settings and restart the cRIO-9022 for the LabVIEW run-time engine to load. NI cRIO-9022 User Manual and Specifications | © National Instruments | 13...
  • Page 15: Specifications

    For information about the life span of the nonvolatile memory and about best Note practices for using nonvolatile memory, go to and enter the Info ni.com/info Code SSDBP Internal RTC Accuracy 200 ppm; 35 ppm at 25 °C 14 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 16: Power Requirements

    Screw flanges provided Torque for screw flanges 0.3 N · m to 0.4 N · m (2.7 lb · in. to 3.5 lb · in.) 609 g (21.5 oz) Weight NI cRIO-9022 User Manual and Specifications | © National Instruments | 15...
  • Page 17: Shock And Vibration

    This category is for measurements of voltages from specially protected secondary circuits. Such voltage measurements include signal levels, special equipment, limited-energy parts of equipment, circuits powered by regulated low- voltage sources, and electronics. 16 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 18: Safety And Hazardous Locations Standards

    To obtain product certifications and the DoC for this product, visit ni.com/ certification, search by model number or product line, and click the appropriate link in the Certification column. NI cRIO-9022 User Manual and Specifications | © National Instruments | 17...
  • Page 19: Environmental Management

    The following table shows the standard Ethernet cable wiring connections. Table 8. Ethernet Cable Wiring Connections Connector 1 Connector 2 white/orange white/orange orange orange white/green white/green blue blue white/blue white/blue 18 | ni.com | NI cRIO-9022 User Manual and Specifications...
  • Page 20: Worldwide Support And Services

    States, create your service request at ni.com/support or dial 1 866 ASK MYNI (275 6964). For telephone support outside the United States, visit the Worldwide Offices section of ni.com/ NI cRIO-9022 User Manual and Specifications | © National Instruments | 19...
  • Page 21 CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015. © 2009—2015 National Instruments. All rights reserved. 375102G-01 Oct15...
