Summary of Contents for Campania International Caterina FT-193
Page 1

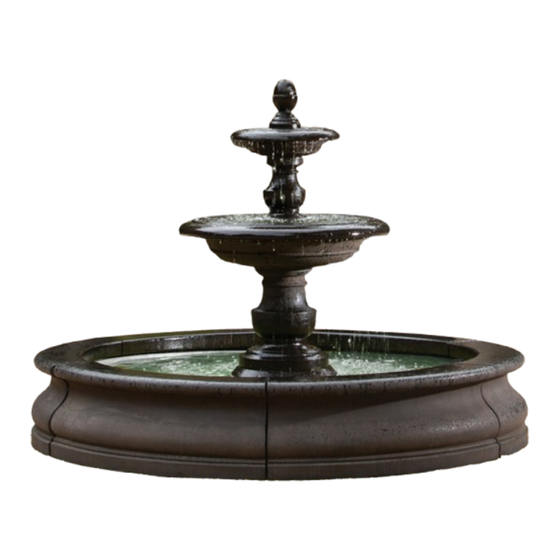

FT-193 Caterina Fountain in Basin Assembly Instructions Fountain Information: • Professional installation is recommended for this fountain! • This fountain holds approximately 130 gallons of water. • This fountain uses a large fountain cover, but does not cover the basin: FTNCOV-LG •...
FT-193 Caterina Fountain in Basin Assembly Instructions Professional installation is recommended for this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin. Step 1 - Seek Professional Help: Check if professional installation is recommended for your fountain.
Page 3
FT-193 Caterina Fountain in Basin Assembly Instructions Step 9 - Position the large bowl (FT-192E) on top of the large pedestal (FT-193E). Step 10 - Fit the standpipe into the large bowl (FT-192E). FT-192E (162 lbs) 35.25"W x 8"H Step 11 - Center the small pedestal (FT-193C) inside the large bowl (FT-192E). FT-193C (35 lbs) 10"W x 16"H Step 12 - Using a hose clamp, connect the 1/2"...
Page 4
FT-193 Caterina Fountain in Basin Assembly Instructions Step 18 - Position the coping with the channel (FT-193H) about 6" from the basin (FGB-2030) on the side of the fountain where the pump cord is tocome out. Step 19 - Position the 5 remaining copings (FT-193H) in a circle about 6" from the basin. Step 20 - Carefully push each piece one at a time toward the basin and into the notch of the coping.
Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
