Installation and usage

This section will guide you through the installation of your Fast Ethernet switch.
Please read through the instructions carefully and complete each step in the order
listed.
Rear Panel
Please note that the following instructions describe how to mount your new
Ethernet Switch on a wall. If you do not wish to perform this step, please skip to
step 5.
1. Place the Switch on a flat table or, if you wish to mount the Switch, the
StarTech.com Fast Ethernet switch has two wallmount sockets that allow it to be
hung from most walls. To mount the switch, you will need a drill, a screwdriver,
two #6 wood screws and their corresponding wall plugs.
2. Carefully measure the distance between the centers of the two screw-holes on
the back of the switch. Mark the location of the screw-holes on your wall,
making sure your marks are straight and even.
3. Drill the holes in the wall and insert the plastic wall plugs.
4. Insert the screws into the wall plugs so that there is a gap of about 2 mm (about
1/10 of an inch) between the head of the screw and the wall.
5. Place the Fast Ethernet switch so that the wide end of the mounting sockets are
Instruction Manual

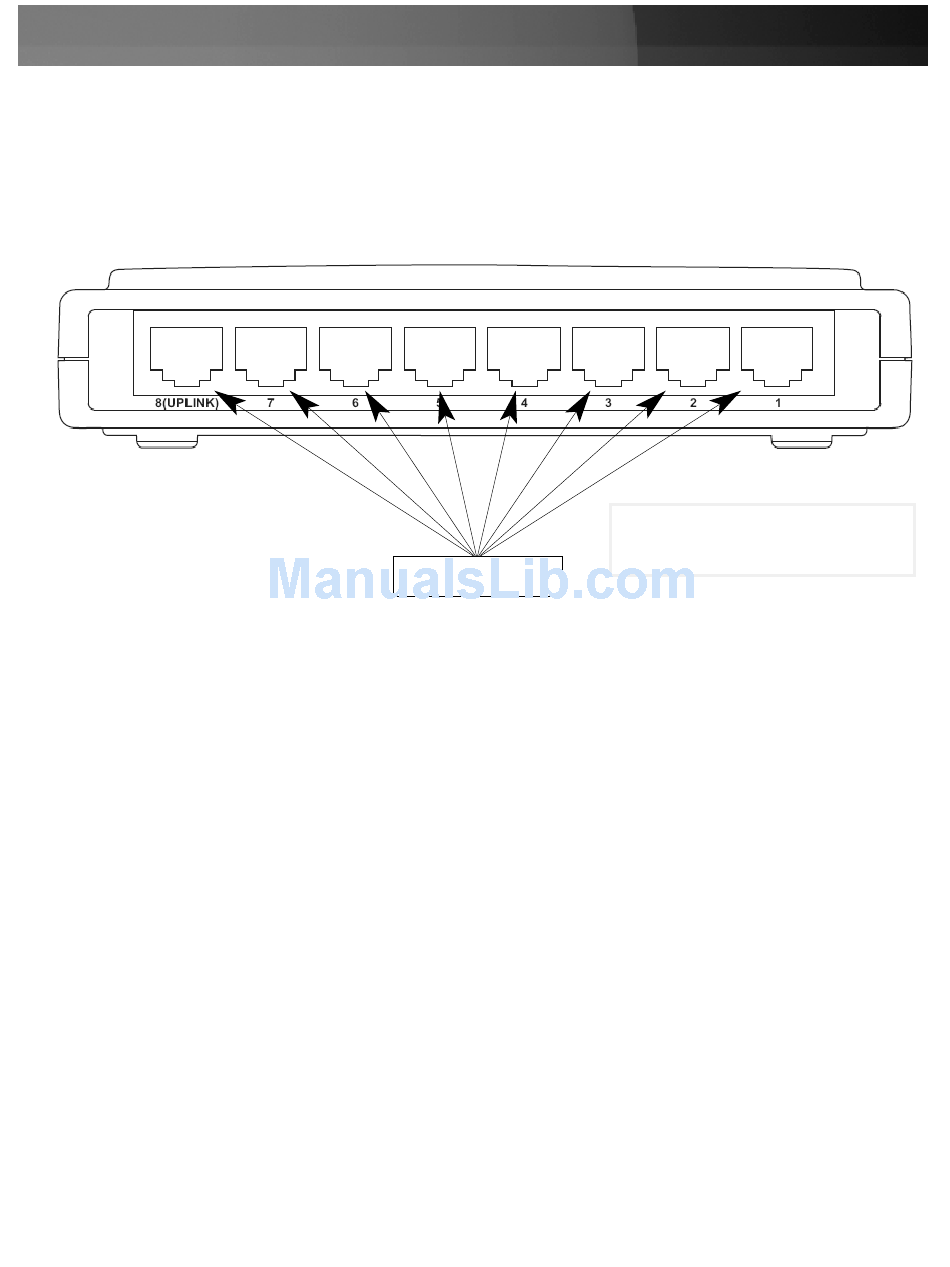

Available ports
2
Please note: all RJ45 ports
can be used as the Uplink port.
