Operating Instructions

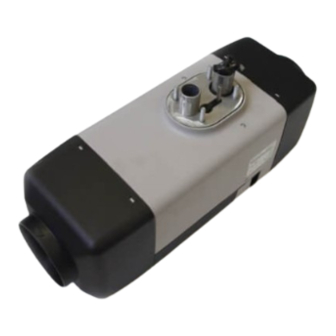

Air Top Evo 5500
Servicing and safety instructions
1. The Air Top Evo 3900 / Air Top Evo 5500 heaters have been type-tested and approved
in accordance with Directives ECE R10 and 72/245/EEC (EMC) and ECE R122 and 2001/
56/EC (heater) with the following EC permit numbers:
NOTE:
The specifications of this Directives are binding in the scope of the basic
Directives EEC/70/156 and/or EC/2007/46 (for new vehicle models from 29/04/
2009) and should also be observed in countries in which no special regulations
exist.
2. The year in which the heater was used for the first time must be permanently displayed
on the factory plate by deleting the inapplicable years from the plate.
3. The heaters are not designed for heating hazardous substance transport
compartments.
To install the Air Top Evo 3900 / 5500 heater unit in hazchem vehicles, the requirements
of the Directives EC/2001/56 and ECE R122 must be met.
4. Claims can only be made if it can be verified that the claimant has complied with the
servicing and safety instructions.
5. The heater must be switched off at filling stations and tank farms as a result of
the risk of explosion.
6. The heater may not be operated in enclosed spaces (such as garages) as a result
of the risk of poisoning and asphyxiation, even if a timer or Telestart remote is
used.
7. The heater must be checked by an expert at the latest at the start of the cold weather
period.
8. In the event of long-lasting heavy smoke development, unusual combustion noises or a
smell of fuel or if the heater suffers continuous fault cut-outs with error messages
(flashing code), it must be shut down by removing the fuse and must not be reused until
it has been inspected by Webasto-trained personnel.
9. Wherever inflammable vapours or dust may form (for example in the vicinity of
fuel, carbon, wood dust or cereal stores or the like), the heater must be switched
off as a result of the risk of explosion.
e1*72/245*2006/96*5529
E1 03 5529
e1*2001/56*2006/119*0255
E1 00 0255
e1*2001/56*2006/119*0256
E1 00 0256
www.butlertechnik.com
www.butlertechnik.com
(Air Top Evo 3900 / 5500)
(Air Top Evo 3900 / 5500)
(Air Top Evo 3900)
(Air Top Evo 3900)
(Air Top Evo 5500)
(Air Top Evo 5500)
Advertisement
Table of Contents
Related Manuals for Webasto Air Top Evo 3900
Summary of Contents for Webasto Air Top Evo 3900
- Page 1 Servicing and safety instructions 1. The Air Top Evo 3900 / Air Top Evo 5500 heaters have been type-tested and approved in accordance with Directives ECE R10 and 72/245/EEC (EMC) and ECE R122 and 2001/ 56/EC (heater) with the following EC permit numbers:...
-
Page 2: Servicing And Safety Instructions
If exhaust lines pass through areas used by personnel, they must also be replaced by genuine spare parts after ten years. 11. The fuel specified by the vehicle manufacturer is suitable for use in the Air Top Evo 3900 B/Air Top Evo 5500 B. Both leaded and unleaded fuel may be used. -
Page 3: Control Element
NOTE for ADR mode only: The Air Top Evo 3900 ST and Air Top Evo 5500 heater units are switched on and off manually using a switch. The use of automatic control systems is prohibited. - Page 4 Error code On heaters that output an error code(Air Top Evo 3900/Air Top Evo 5500), a number, the error code, may appear in the display. In this case you should visit a Webasto service outlet.
- Page 5 www.butlertechnik.com Switch off Manual: Press the button again Automatic: By programming the operating period When heater unit is running: By setting the remaining time Set time/date Press the button for more than two seconds - the time flashes - set the time using the buttons - the day flashes - set the day.
- Page 6 Mode selector knob Main switch ON / OFF Indicator General Using the Control Panel Air Top Evo MC04/05, you can select the information functions of the Webasto air heaters Air Top Evo. Economy mode Normal Comfort heating Plus Fast heating...
- Page 7 Preferably the temperature selector should be in the marked range of the scale (comfort range). Remote control In 12V applications, there is the possibility to combine control panel and heater with an optional Webasto Telestart or ThermoCall. Telestart T91 Telestart T100 HTM Thermo Call...
- Page 8 Fault: During an operational fault a flashing code is displayed by the status indicator. This function enables a professional workshop to solve the fault in a fast way. In this case please visit a Webasto service station! www.butlertechnik.com...
-
Page 9: Actions In Event Of Faults
If an error occurs, first check the fuse and plug connections to ensure that they are in proper condition and connected correctly. If the actions described below do not rectify the error, have the heater checked by Webasto- trained personnel. -
Page 10: Error Code Output On Combination Timer Or Control Element
F 15 Setpoint generator short circuit If serious faults, such as overheating or no start, occur frequently, the heater will be set to permanent fault lock-out (F 12) and cannot be restarted until it has been repaired by Webasto-trained personnel. www.butlertechnik.com...
