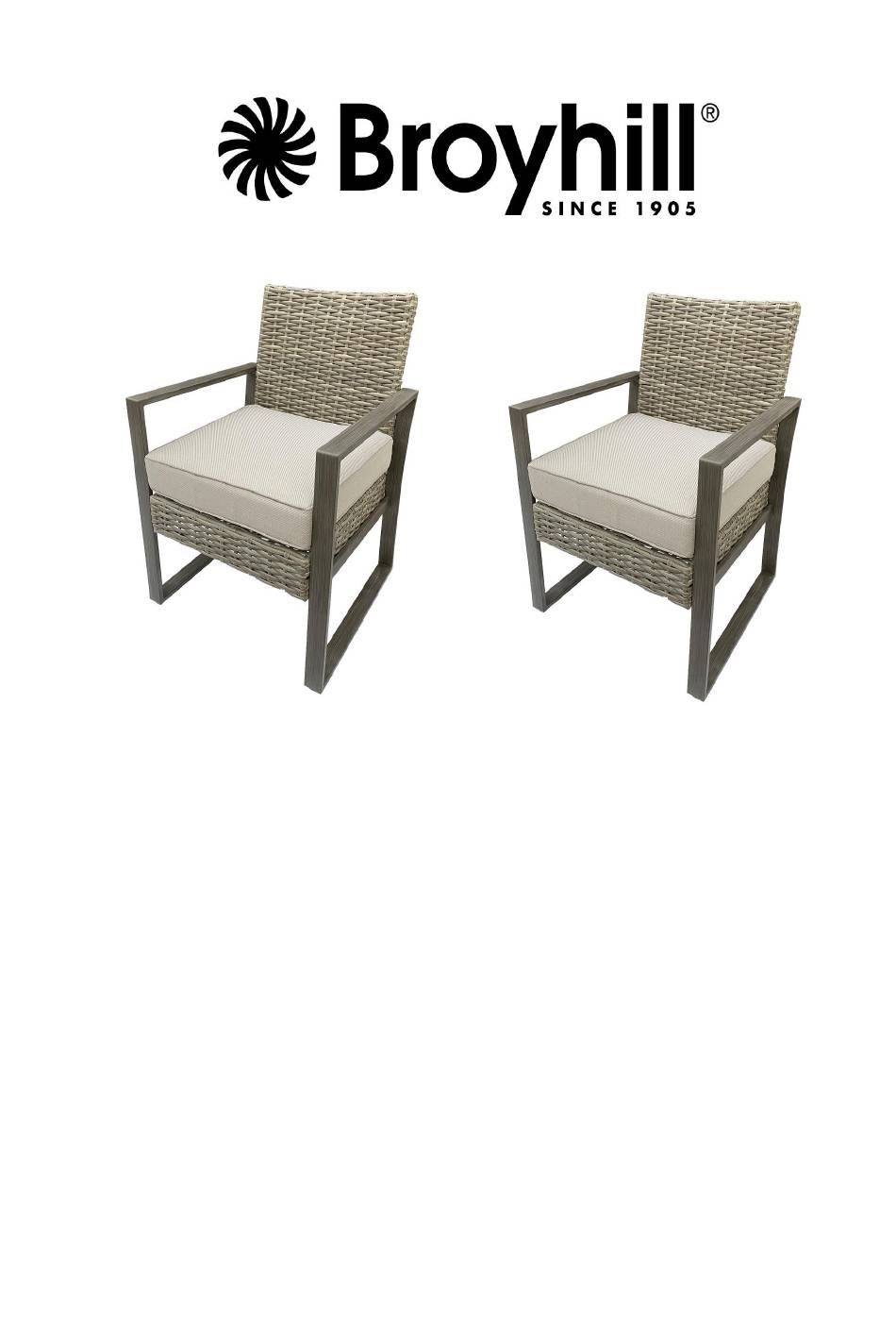

- Page 1 ASSEMBLY INSTRUCTIONS ITEM# : GBO23-908C2-B SKU# : 810588205 CRESTFIELD 2PC DINING CHAIR Need help? We are here for you! 1-888-733-8169 Toll Free Or email us at customerservice_01@yeah.net,customerservice_02@yeah.net customerservice_03@yeah.net...
- Page 2 GENERAL BEST PRACTICE FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Number of the hardware corresponds to its letter in the package Helpful hints provided along the way Retain these assembly instructions for future reference.
- Page 3 PARTS LIST FOR 1 CHAIR: PARTS LIST Part No. Part Image Part No. Part Image Chair Back Bolt (M6x31mm) Seat Panel Frame Long Bolt (M6x41mm) Right Arm Washer Left Arm Seat Cushion Tool PRODUCT FRAME MAP...
- Page 4 STEP 2 STEP 1 PART REQUIRED: 1, 2 Keep the bolts loose. STEP 3 STEP 2 PART REQUIRED: 3 Keep the bolts loose. SECOND FIRST...
- Page 5 STEP 3 STEP 4 PART REQUIRED: 4 Keep the bolts loose. SECOND FIRST STEP 4 PART REQUIRED: 8 Fully tighten all the bolts, then put the cushion (8) on the chair. Finished! Warranty One year limited warranty. Proof of purchase (dated register receipt) is required for warranty claims. It remains the customer's responsibility for freight and packing charges to and from the service center.
