Summary of Contents for National Instruments 8234

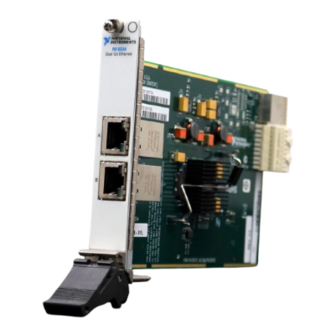

- Page 1 (217) 352-9330 | Click HERE Find the National Instruments PXIe-8234 at our website:...
-
Page 2: What You Need To Get Started
PXIe/cPCIe computer running Microsoft Windows Vista/XP/2000 with at least one available slot Note The NI 8234 card will work in any standard peripheral slot of a cPCIe chassis adhering to the PICMG CompactPCI Express EXP.0 R1.0 specification, or in a peripheral slot of a PXIe chassis that is compatible with the PXI Express Hardware Specification, Revision 1.0 or later. -
Page 3: Safety Information
Remove power from signal lines before connection to or disconnection from the device. Caution National Instruments measurement products may be classified as either Measurement Category I or II. Operate products at or below the Measurement Category level specified in the hardware specifications. -
Page 4: Installation
NI 8234. Install the NI Vision Acquisition Software before installing the NI 8234. Refer to the NI Vision Acquisition Software Release Notes for specific installation instructions. Power off and unplug the PXIe/cPCIe chassis. - Page 5 Note If you are using a PXIe chassis, the NI 8234 must be installed in a PXIe or hybrid peripheral slot. Consult your PXI chassis manual for the location of these slots. Touch a metal part of the chassis to discharge any static electricity that might be on your clothes or body.
-
Page 6: Specifications
The NI 8234 is now installed and the camera is connected. Configuring the NI 8234 After you have installed the NI 8234 and powered on your computer, Windows will recognize the device and assign resources to it. Use Measurement & Automation Explorer (MAX), the National Instruments configuration utility, to configure a GigE Vision compliant camera connected to the NI 8234 for acquisition. -
Page 7: Storage Environment
Ambient temperature range ........0 to 50 °C Operating relative humidity ........10 to 90%, noncondensing Pollution Degree ............2 Caution Do not use the NI 8234 for connection to signals within Measurement Categories II, III, or IV. Approved at altitudes up to 2,000 m. Storage Environment Ambient temperature range ........–40 to 70 °C... -
Page 8: Environmental Management
Certification column. Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers. -
Page 9: Where To Go For Support
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at ni.com/support and follow the calling instructions or dial 512 795 8248.
