Summary of Contents for National Instruments USB-8506

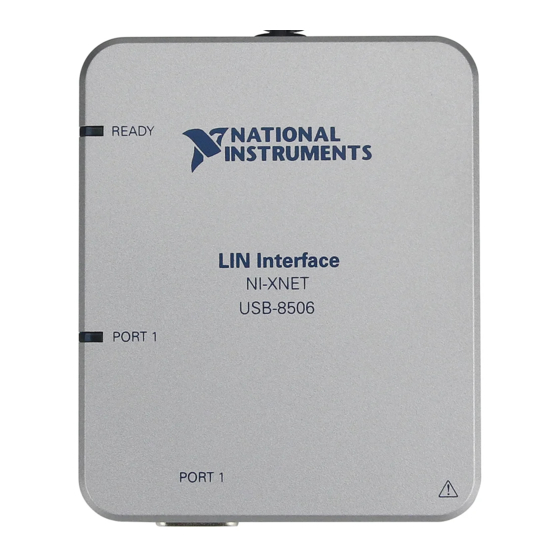

- Page 1 USB-8506...
- Page 2 디바이스를 설치하기 전에 모든 제품 관련 문서를 읽고 안전, 디바이스를 설치하기 전에 모든 제품 관련 문서를 읽고 안전, location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs) and EMC, 환경...
- Page 4 NI LabVIEW NI-XNET Install application development software (if applicable). Then install NI-XNET driver software. Connect the device to a USB 2.0 port or higher on your computer. Connect from the DB9 connectors to the LIN bus through shielded cables as described in the NI-XNET Hardware and Software Help.
- Page 5 Optional: Attach the synchronization connector plug to the device. Connect the ferrite and In Measurement & Automation Explorer (MAX), right-click the LIN interface under the device and select Bus Monitor. After selecting network parameters, click the start button to shielded signals as described in the NI-XNET Hardware and Software Help. verify functionality.
