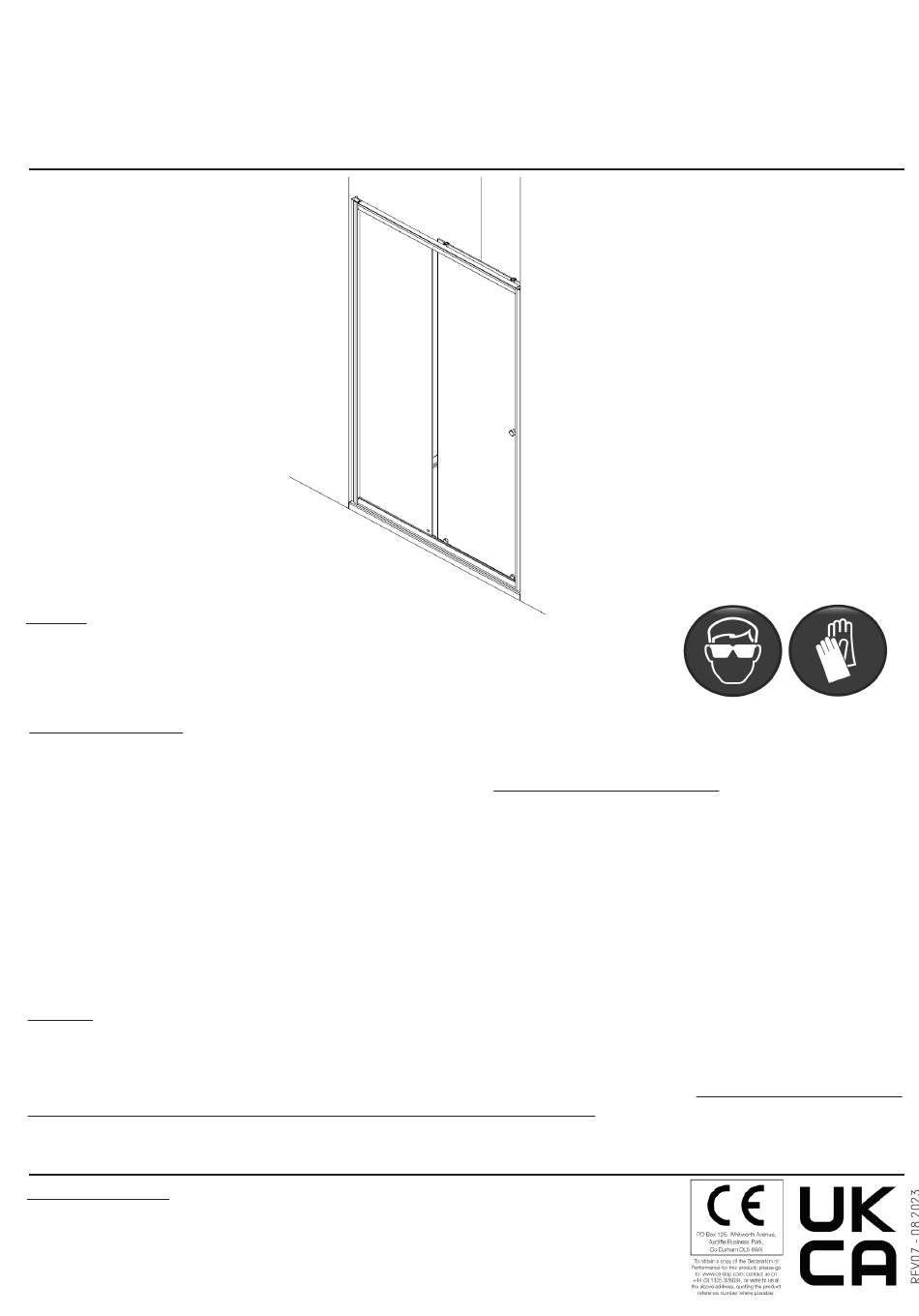

ROMAN Haven6 H3S Instructions Manual

Sliding door
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Handling
Be aware toughened glass can shatter if not handled correctly. It should not be subjected
to any sharp impact and it is essential to protect the glass by resting it on a soft protective
surface during installation such as cardboard or carpeting. It is recommended to wear PPE at
all times during installation.
Pre-Installation Checks
1.
Please take time to read these instructions prior to installing your product, including the Tray Sizes section below.
2.
Check you have the correct product, by looking at the labels on the side of the product packaging.
3.
Check all the product components and fixing kits are in the box - these are listed on the next page.
4.
Please check the product for defects or damage, once the installation has commenced we cannot accept responsibility for any
defects or damage.
5.
Before you commence any drilling check there are no hidden electrical cables and/or water pipes.
6.
No attempt should be made to re-work the toughened safety glass.
7.
The installation of the product should be performed by two persons.
8.
It is strongly recommended the product is fitted on a tiled surface or similar waterproof surface - which are tiled and grouted
before product is installed.
9.
It is strongly recommended that the walls the product is going to be installed on are vertical, and the floor/tray is level.
10. Please note that some natural misting may occur when you remove this product from its packaging, due to the addition of the
glass protection pre-coating. If this does occur this can easily be removed with a soft, dry cloth.
Tray Sizes
Important: You MUST measure your tray before you proceed with installation. Please refer to the adjustment stated in the brochure
or Step 1 of this instruction manual for the adjustment details for Haven6. If your tray exceeds this given value, you may need a
bespoke product. T Your Tray must be larger than the size given for Corner Adjustments.
Refer to Step 1 for a guide on how to measure your tray accurately before proceeding any further - Roman will not be liable if you
begin installation without correctly measuring your tray, to the realisation it doesn't fit.
Consumer Guarantee
Please make sure the purchaser/end user completes and returns the guarantee card
which is enclosed with this product. Failure to validate the Guarantee will mean only the 1
Year Statutory Guarantee will apply.
Haven6
Sliding Door
H3S#

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Haven6 H3S and is the answer not in the manual?

Questions and answers

Related Manuals for ROMAN Haven6 H3S

Summary of Contents for ROMAN Haven6 H3S

  • Page 1 T Your Tray must be larger than the size given for Corner Adjustments. Refer to Step 1 for a guide on how to measure your tray accurately before proceeding any further - Roman will not be liable if you begin installation without correctly measuring your tray, to the realisation it doesn’t fit.
  • Page 2 Equipment Checklist: Not Supplied Fixing Kit Components 6X 40mm 4X 25mm 4.5mm 90min 4X 13mm 6X 9mm 1X 2.5mm Description Qty. Description Qty. Door Handle Wall Profile Keyslot Panel Assembly Magnet Pairing Transit Block Vertical Alumnium Door Stop Bottom Bearing Assembly Top Rail Bottom Rail Panel to Rail Seal...

  • Page 3: Step 2 - Pre-Installation Checks

    Step 1 - Tray Sizes Your area must be tiled and grouted before measuring your tray - refer to your tray installation instructions and ensure this is done correctly. This is because tray measurements are taken from the tiled wall. Once tray installation is complete you can proceed to measuring the area, measure the bottom, middle and top across a 1900mm height.
  • Page 4 Step 3 - Wall Profile Positioning On both wall profiles drill three 4.5mm holes through the lip. Place them 7mm in from the ① edge and approximately 100mm from each end and the other positioned in the centre. Drill this •...

  • Page 5: Step 6 - Fitting The Enclosure

    Step 5 - Positioning the Door & Second Wall Profile Place the remaining Wall Profile at the required end of the Door. Gently lift the Door and Wall Profile onto the tray and into the already fixed Wall Profile. Where the unfixed Wall Profile will meet the tiled wall and tray apply a generous bead of sealant.

  • Page 6: Step 7 - Assembling The Door

    Step 7 - Assembling the Door Carefully dismantle the Bearing Assemblies, place the gasket on the outside ① Top Bearings of the glass (Bearing Side) then re-assemble onto the Door Glass. Make sure you have the correct bearings at the top and bottom and that the wheels are Cover on the outside of the glass.
  • Page 7 Step 9 - Door Adjustment and Sealing Close the Door and check that the Magnets meet each other along the full length, also check that the Door is running smoothly. The Door Magnet can be pulled away from the glass slightly to help with the door closure.

  • Page 8: Troubleshooting Guide

    Trouble Shooting Guide Should you experience any problems during installation please refer to the Trouble Shooting Guide or contact Customer Relations on: +44 (0) 1325 328033 To enable customer relations to provide you with an excellent level of service it is important that you quote your product Code and Reference Number - these can be found on the Guarantee card.
