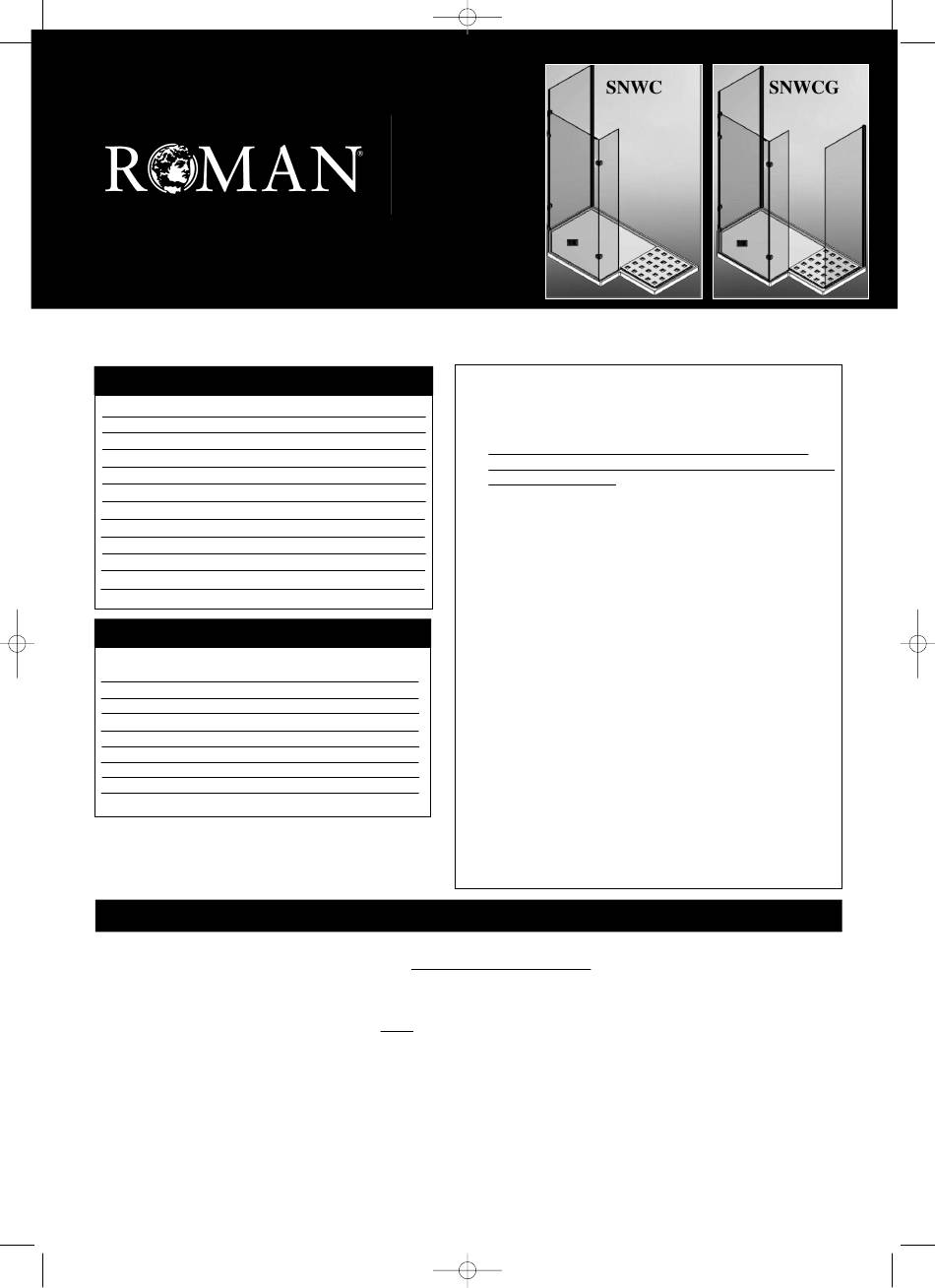

ROMAN SNWC Instruction Manual

Angled Walk-in Instruction Manual
S c u l p t u r e s
SNWC & SNWCG
Component Check List: Supplied
SNCW-SNWCG:CQB 14/5/10 11:35
Description
Glass Side Panel
Standard Cover Trims
Equipment Check List: Not Supplied
Standard Wall Profile(s)
Top Cap(s)
Return Panel
90º Degree Brackets
Front Glass Panel
45º Degree Brackets
Installation Site Preparation - Site Requirements
Angled Glass Panel
First Glass Panel
Description
PZ2 Pozidrive screwdriver
Bathroom Sealant Gun
Spirit Level (large)
Mains or battery Drill
6mm Masonry Bit
Tape Measure
Panel
Allen Keys (supplied)
Torque Wrench
Walls
The walls to which the enclosure is to be fitted to must be completely vertical with no more than 5mm deviation. A
maximum of 5mm adjustment is provided within the enclosure to take account for untrue walls.
Tray
If fitting to a tray the following requirements must be met before installation can commence:
The tray must be a Roman product.
The tray must be fitted in accordance to the Roman instruction manual supplied with the tray.
Any tiling must not overhang the tray by more than 5mm. The tray can be made offset from the wall to achieve
this (see image on next page)
Any tiling and sealing around the tray and enclosure must be completed and fully dry.
Wetroom Installation
For wetroom Installation an F20 glass / floor protector is recommended. Please contact customer relations on 01325
328034 to request your pack.
I
I
I
I
Page 1
Quantity
SNWC SNWCG
1
2 4
1 2
1 2
1 1
2 2
1 1
4 4
1 1
1 1
IMPORTANT
Please ensure the consumer guarantee card enclosed with this
product is completed and returned to Roman; please ensure the end
user retains this manual.
Please read all instructions carefully before attempting installation.
Handle the product with care to avoid damage to the product finish.
Check for hidden electrical cables and water pipes prior to
commencing any drilling work.
Images are used for illustration purposes only, product designs may
differ slightly as a result of continuing product development.
Roman Sculptures enclosures are heavy, this enclosure installation
must be carried out by a minimum of two people to avoid possible
lifting injury and damage to the large glass panels.
Roman's toughened glass is completely safe for use in our shower
enclosures and bath screens; providing our products are installed
according to our guidelines.
It is important to note, that the glass must not be mounted or
'pinched' in such a way that would cause a stress point to develop in
the glass. In addition, it must not be subjected to any sharp impact
or severe temperature fluctuation which may also cause a stress
point to develop in the glass.
Roman's toughened glass is physically and thermally significantly
stronger than standard glass. During our toughening process the
stresses contained within any glass are balanced so if in the unlikely
I
situation any of the above occurs and the glass breaks, the glass will
shatter safely into small thumbnail sized blunt fragments.
I
I
I
I
I
I
I
I
SNWCB & SNWCGB/May 10
