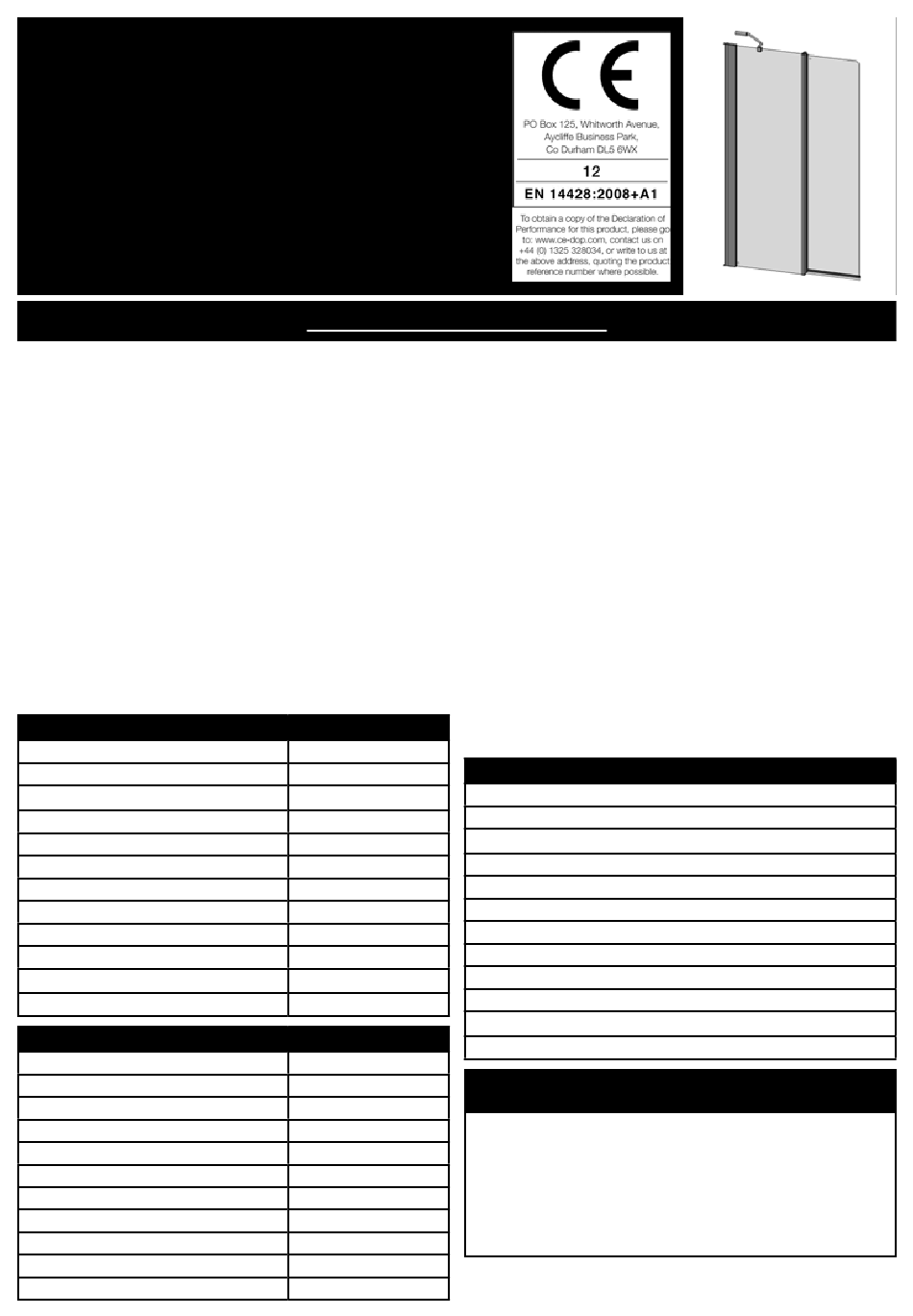

Inward Folding
Bath Screen
Instruction Manual
H2D6CS
•
Toughened glass is completely safe for use in our shower enclosures and bath screens; providing our products are installed according to our
guidelines.
•
It is important to note that the glass must not be mounted or 'pinched' in such a way that would cause a stress point to develop in the glass. In
addition, it must not be subject to any sharp impact or severe temperature fluctuation which may also cause a stress point to develop in the glass.
•
Toughened glass is physically and thermally significantly stronger than standard glass. During the toughening process the stresses contained
within any glass are balanced so if in the unlikely event situation any of the above occurs and the glass breaks, the glass will shatter safely into
small thumbnail sized blunt fragments.
prE-InStaLLatIon CHECKS
1.
Check you have the correct product. Please look at the labels on the side of the product packaging.
2.
Check all the product components are in the box and the fixing kits.
3.
Unpack your product and handle it with care.
4.
Please check the product for defects or damage. once the installation has commenced we cannot accept responsibility for any defects or damage.
5.
Please take time to read these instructions prior to installing your product.
6.
Before you commence any drilling check there are no hidden electrical cables and/or water cables.
7.
No attempt should be made to re-work the toughened safety glass.
8.
The installation of the product should be performed by two persons.
9.
It is strongly recommended that the walls the product is going to be installed on are vertical.
10. It is strongly recommended the product is fitted on a tiled surface or similar waterproof surface.
11. It is strongly recommended the walls are tiled and grouted before the product is installed.
12. If the walls and/or the tray are not level you will not achieve maximum adjustment of the product.
13. Pictures used are for illustration purposes only, product designs may alter slightly as a result of continuing product development.
14. We do not stipulate where the European Standard Kite Mark should be positioned on the glass when being factory assembled.
15. Please note that some natural misting may occur when you remove this product from its packaging, due to the addition of the glass protection pre-
Component Check List: Supplied
coating. If this does occur this can easily be removed with a soft, dry cloth.
Description
Wall Profile
Fixed Panel
Moving Panel
Bottom Seal
Brace Bar Assembly
Fixing Kit Components
Description
2.5mm Drill Bit
9mm Screws
40mm Screws
Screw Bases
Cover Caps
Top Cap (Left Hand)
Top Cap (Right Hand)
Wall Plugs (for brick and block only)
Branding Badge (where applicable)
4mm Allen Key
IMportant InForMatIon
Quantity
1
Description
1
Electric / Battery Drill
1
6mm Masonry Drill Bit
1
Bathroom Sealant Gun
1
Bathroom Sealant
Screwdriver
Spirit Level
Tape Measure
Pencil
Wall Plugs (not supplied)
Stanley Knife / Snips
Quantity
1
3
3
3
3
1
1
3
1
1
Equipment Check List: not Supplied
CONSUMER GUARANTEE
Please make sure the purchaser/end user
completes and returns the guarantee card
which is enclosed with this product. Failure
to validate the Guarantee will mean only the 1
Year Statutory Guarantee will apply.
Ref: H2D6CS- Jan 2016
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ROMAN H2D6CS
Summary of Contents for ROMAN H2D6CS
- Page 1 Inward Folding Bath Screen Instruction Manual H2D6CS IMportant InForMatIon • Toughened glass is completely safe for use in our shower enclosures and bath screens; providing our products are installed according to our guidelines. • It is important to note that the glass must not be mounted or ‘pinched’ in such a way that would cause a stress point to develop in the glass. In addition, it must not be subject to any sharp impact or severe temperature fluctuation which may also cause a stress point to develop in the glass. • Toughened glass is physically and thermally significantly stronger than standard glass. During the toughening process the stresses contained within any glass are balanced so if in the unlikely event situation any of the above occurs and the glass breaks, the glass will shatter safely into small thumbnail sized blunt fragments. prE-InStaLLatIon CHECKS Check you have the correct product. Please look at the labels on the side of the product packaging. Check all the product components are in the box and the fixing kits. Unpack your product and handle it with care. Please check the product for defects or damage. once the installation has commenced we cannot accept responsibility for any defects or damage. Please take time to read these instructions prior to installing your product. Before you commence any drilling check there are no hidden electrical cables and/or water cables. No attempt should be made to re-work the toughened safety glass. The installation of the product should be performed by two persons. It is strongly recommended that the walls the product is going to be installed on are vertical. 10. It is strongly recommended the product is fitted on a tiled surface or similar waterproof surface. 11. It is strongly recommended the walls are tiled and grouted before the product is installed. 12. If the walls and/or the tray are not level you will not achieve maximum adjustment of the product. 13. Pictures used are for illustration purposes only, product designs may alter slightly as a result of continuing product development. 14. We do not stipulate where the European Standard Kite Mark should be positioned on the glass when being factory assembled.
- Page 2 IMportant prE-InStaLLatIon CHECKS 1. Ensure the bath is completely level. 2. Check for any movement in the bath by standing in it. 3. The walls should be tiled and grouted up to the bath. 4. Fill the bath with water and check the plumbing for leaks. 5. With the bath full of water, fully seal the bath along the tiled wall with a bathroom sealant (not supplied). 6. With the water still in the bath leave the sealant to cure for at least 24 hours. • S pray the seal and joints with the shower head and check for leaks when the silicon has cured. • Check the plumbing for leaks. •...
- Page 3 Step 1 - Wall Profile Position NOTE: Two people will be required to do the following procedures. ① ② Pivot Assembly Lightly mark position using a pencil Inside edge of bath 1. Dry fit the Bath Screen on top of the Bath. Position the Fixed Panel so that the curved face of the bottom Pivot Assembly falls in line with the inside of the Bath. 2. Using a pencil lightly mark where the aluminium vertical profile touches the Bath Top (use masking tape to protect the Bath), this will determine where you need to fix the Wall Profile in Step 2. • You must ensure the glass runs parallel to the outside edge of the bath before marking the Bath top. • You will need help to hold the screen in position while you mark the tiled wall and bath top. •...
- Page 4 Step 2 - Fixing Wall Profile ① Pencil Mark ④ ⑤ ⑦ ⑥ 1. Position the inside edge of the Wall Profile onto the pencil mark you have just made. 2. Make sure the Wall Profile is vertical using a spirit level. 3. Using a pencil mark the locations for the drill holes through the holes of the Wall Profile. 4. Drill the holes using a 6mm masonry drill (not supplied); push the wall plugs (supplied) into the drilled holes. 5. Apply a bead of sealant the width of the Wall Profile at the bottom where the Wall Profile meets the tiled wall. 6. Screw fix the wall profile to the wall using the 40mm screws (supplied) ensuring it is vertical. 7. Apply a bead of sealant to the inside of the Wall Profile at the bottom where it meets the Bath top. • IMPORTANT: The Wall Profile must be completely vertical (the bubble should be in the centre of the 2 lines on the spirit level). the sealant must be applied in steps 5 and 7; failure to follow out this procedure may result in serious water damage and is not covered under the terms of the guarantee.
- Page 5 Step 3 - Fitting the Fixed panel ① ③ ④ Cover 9mm Screw Base 10mm Minimum 1. Slide the Fixed Panel fully over the Wall Profile, the Fixed Panel must overlap by at least 10mm. 2. Using a Spirit Level ensure the Fixed Panel is completely vertical and it is sitting down on top of the bath and is also parallel to the outside edge. 3. Drill three holes through the Fixed Panel into the Wall Profile with the 2.5mm drill bit (supplied). • Ensure the Fixed panel is sitting fully down on top of the bath and is completely vertical. 4. Place the bases onto the 9mm screws and screw fix the Panel to the Wall Profile. Fit the Cover Caps.
- Page 6 Step 4 - Fitting the Moveable panel ① ② Flat Face Round Face 1. Using the 4mm Allen key (supplied) remove the countersink screw and Top Pivot Assembly from the Fixed Panel. 2. Ensure that the Moveable Panel is the correct way before fitting, the “P” shaped extrusion should be positioned so that the Flat Face is to the inside of the showering area and the Round Face to the outside. 3. Offer the Moveable Panel onto the bottom Pivot Assembly then reattached the top Pivot Assembly so the panel is then secured into position. 4. With the deflector facing inward push the Bottom Seal up onto the bottom of the Moveable Panel and also along until it butts up against the aluminium profile (trim to length if required).. • please take care when cutting the bottom seal. • Make sure the bottom seal is butted up against the aluminium profile.
- Page 7 Step 5 - Fitting the Bracing ② ③ ④ ⑦ ⑤ ⑥ ⑧ 1. Place the Brace Bar over the top of the glass on the Fixed Panel; ensure the Brace Bar is completely level and in line with the panel. 2. Using a pencil, mark the wall around the barrel that is already fitted to the bracing. 3. Remove the Brace Bar from the panel and loosen the 2 set screws at the end until the locating bush can be removed ( Take notice as to which way the bush fits 4. Take the locating bush and place it in the centre of your pencil mark on the wall, mark the wall through the hole in the locating bush. 5. Drill the wall using a 6mm masonry drill (not supplied), insert the wall plug and screw fix the locating bush using the 40mm screw ( Make sure the bush is put on the correct way 6. Position the Brace Bar back onto the Fixed Panel and push the barrel over the locating bush and then tighten the set screws with the Allen key (supplied).
- Page 8 Step 6 - Sealing ① ③ Top Cap Grooves ③ Snap off here ④ Deflector 1. Seal both sides of the Wall Profile inside and outside only where it meets the tiles. 2. Fully seal the base of the Fixed Panel to the Bath top from the wall to the end of the Pivot Assembly. • IMportant: Do not seal the base on the inside. 3. The Top Cap has grooves and can be shortened by snapping off at these points (adding a small amount of sealant will help keep the cap in place). 4. Fit the Bottom Seal ensuring that it is fitted with the deflector facing inward towards the bath. Push the seal up to the aluminium then trim the seal to length as required. 5. Please allow 24 hours for the sealant to fully cure. 6. Ensure the Branding Badge is placed prominently on a none moving aluminium part (where applicable).
-
Page 9: Spare Parts
Spare parts If you need to replace any damaged parts please see illustration below for parts list then call Customer relations on 01325 328033 part no. Description Q’ty part no. Description Q’ty part no. Description Q’ty Wall Profile Tube Cap (Left Hand) Top Cap (Left Hand) Bottom Seal Fixed Panel Assembly Brace Bar Assembly Pivot Assembly (Left Hand) -
Page 10: Troubleshooting Guide
troUBLE SHootInG GUIDE problem Solution 1. Check the internal gap between the Bath and the Wall Profile has been sealed correctly. Leaking 2. Ensure the Bath is fully sealed along the tiled walls prior to installation. 3. If the Fixed Panel is sealed on the inside along the Bath top, this will cause leakage - sealant must be removed. 4. Ensure the Wall Profile on the tiled wall is sealed both vertically inside and outside. 5. Is the Wall Profile fitted where it was marked during the dry fit. 6. Ensure the deflector on the Bottom Seal is facing inward towards the Bath. 7. Check that the bath is compatible with the bath screen I.e. Flat top bath,Non sculptured bath and no hand rails. Important: this enclosure should be water tested conforming to BS En 14428 Folding Bath Screen 1. Is the Bath Screen fitted onto a tiled wall? alignment on Bath 2. Is the Wall Profile fitted where it was marked during the dry fit.
