Book Page 2 Friday, June 11, 1999 3:02 PM
3-2 C 3: 3C
HAPTER
Configuring the NIC
The NIC Configuration Settings screen appears, as shown in
Figure 3-2. The list box displays recommended configuration
settings for the NIC. You can either accept the recommended
settings or change one or more to suit your operating
environment.

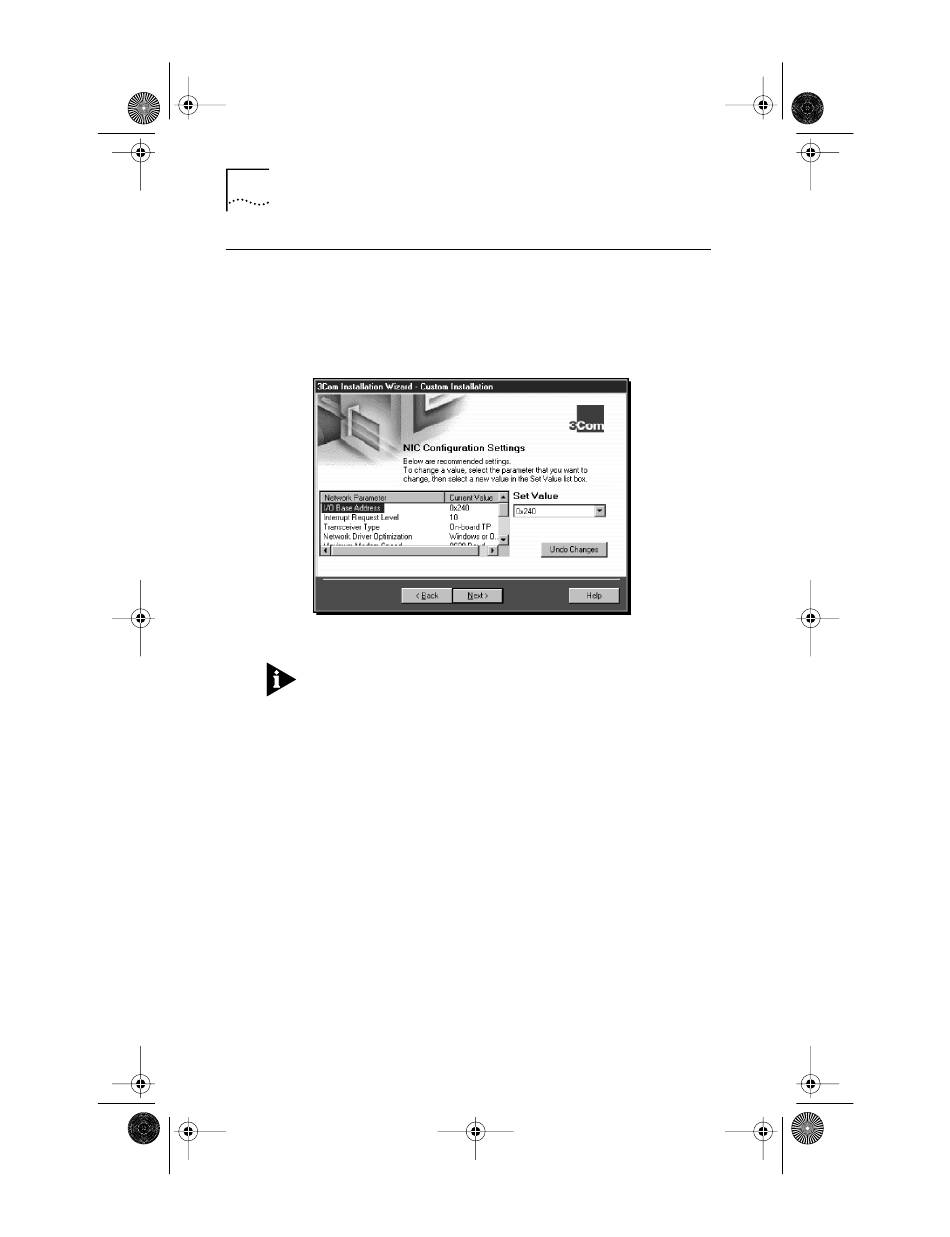

Figure 3-2 NIC Configuration Settings Screen
For Windows 95 non–Plug and Play PCs, make sure that the I/O
Base Address value shown in the list box under Current Value is
the same value that you wrote down in "Configuring the NIC" in
Chapter 2. Also make sure that the Interrupt Request Level value
is one of the available values that you wrote down in "Performing
the Preinstallation Procedure" in Chapter 2.
To Accept Configuration Settings
Follow these steps to accept the recommended configuration
settings:
1 Click Next.
2 Go to "Testing the NIC and the Network Connection" later
in this chapter.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
I W
OM NSTALLATION IZARD
