Page 1

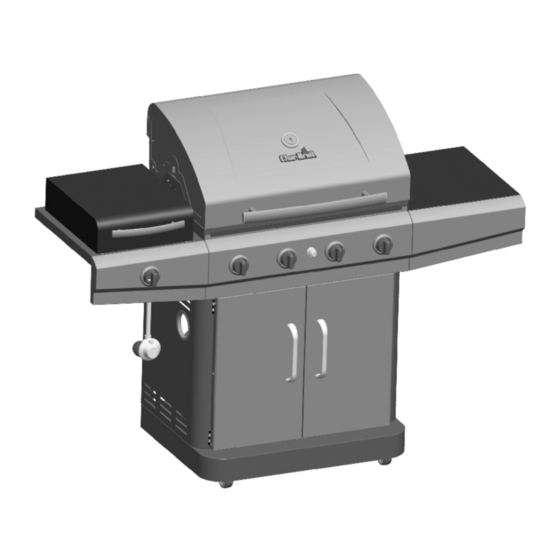

MODEL 463462108 • PRODUCT GUIDE THIS GRILL IS FOR OUTDOOR USE ONLY. CAUTION: WARNING: Read and follow all safety statements, assembly Failure to follow all manufacturer’s instructions could instructions, and use and care directions before result in serious personal injury and/or property attempting to assemble and cook.
Page 2
CAUTION CAUTION CAUTION: Indicates a potentially hazardous situation or For residential use only. Do not use for commercial unsafe practice which, if not avoided, may result in minor cooking. or moderate injury. 2 • 463462108...
• Periodic cleaning of the cooking grates also helps decrease the risk of a grease fire which can irreversibly darken the stainless steel surface. (Please note that the integrity of the steel is not affected by the flame, only the appearance.) 463462108 • 3...
Page 4
Check the telephone Retainer Strap by the sun. directory under “Gas Companies” for nearest certified LP • Do not store an LP cylinder in an area where children play. dealers. 4 • 463462108...
Nipple has to be centered into the LP cylinder valve. WARNING If “growing” bubbles appear do not use or move the LP cylinder. Contact an LP gas supplier or your fire department! 463462108 • 5...
• Do not use grill until leak-tested. • If a leak is detected at any time, STOP and call the fire department. • If you cannot stop a gas leak, immediately close LPcylinder valve and call LP gas supplier or your fire department! 6 • 463462108...
Page 7
• Always close LP cylinder valve and remove If ignitor does not work, follow match lighting instructions. coupling nut before moving LP cylinder from After Lighting: Turn knobs to HI position for warm-up. specified operation position. Lighting instructions continued on next page. 463462108 • 7...
Page 8
• Cooking surfaces: If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot. 8 • 463462108...
Page 9
• Store grill indoors ONLY if LP cylinder is turned off and Firebox disconnected, removed from grill and stored outdoors. Electrode burner • When removing grill from storage, follow “Cleaning the Burner bracket Assembly” instructions before starting grill. 463462108 • 9...
Page 10
Ideal for slow roasting and baking. resulting in failure of grill cart components. Rotisserie Cooking When using a rotisserie on your grill, you should remove the cooking grates and warming rack. This will provide adequate clearance for large foods. 10 • 463462108...
Page 11
The methods below are suggestions for cleaning stainless steel surfaces. Choose a cleaning method appropriate for your needs. It is recommended that you use a Char-Broil® grill cover to help prolong the life and prevent discoloration of your grill.
Bradley Company. Thermos® is a registered trademark of the Thermos Company and its affiliates. Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™, The Tuscan Collection™, and The Urban Grill™...
ASSEMBLY – Model No. 463462108 Attach the two locking casters at the rear of the bottom shelf and the two non-locking casters at the front. Use the provided caster wrench to fully tighten casters. Non-locking caster Locking caster Bottom shelf Attach side panels to bottom shelf using three 1/4-20x1/2”...
Page 15
32x3/8" screws at the back of tank exclusion wire first (B). Line up the front of tank exclusion wire to holes in top brace and secure with two #8-32x3/8" screws and #8-32 flange nuts. #8-32 flange nut #8-32x3/8" screw #8-32x3/8" screw 463462108 • 15...
Page 16
Make sure the regulator hose is hanging outside the cart. Insert four 1/4-20x1/2” screws through side panels and firebox in all four corners. Secure with four fiber washers and 1/4-20 flange nuts. 1/4-20 flange nut fiber washer 1/4-20x1/2" screw 16 • 463462108...
Page 17
Secure fascia to firebox using two 1/4-20x1/2" screws, 7mm lock washers and 7mm flat washers (C). CAUTION flange SHARP EDGES! Wear gloves if necessary. #8-3/8 self-tap screw 1/4-20x1/2” screw fiber washer Fascia 1/4-20x1/2” screw 7mm flat washer 7mm lock washer 463462108 • 17...
Page 18
Insert sideburner into sideburner drip pan (A), make sure burner tube engages with sideburner valve. Illustration (B) shows correct burner-to-valve engagement. Center stud on bottom of sideburner fits into center hole in sideburner drip pan. Secure with one wingnut (C). Connect sideburner ignitor wire to sideburner electrode. Sideburner Electrode Sideburner ignitor wire 18 • 463462108...
Page 19
Secure to shelf with four #8-32x3/8" screws and #8-32 flange nuts (B). Sideburner lid #8-32x3/8" screw #8-32x3/8" screw #8-32 flange nut #8-32 flange nut Place sideburner cooking grate onto drip pan. Next, place griddle onto shelf. Sideburner griddle Sideburner grate 463462108 • 19...
Page 20
Place four flame tamers over burners by inserting tabs into slots in front of firebox. Opposite ends of flame tamers rest on pins in back of firebox. Place cooking grates into grill bottom. Cooking Grates 20 • 463462108...
Page 21
Hang grease cup wire from bottom of firebox and place grease cup into grease cup wire. CAUTION Failure to install grease cup will cause hot grease to drip from bottom of grill with risk of fire or property damage. Grease Cup Wire Grease Cup 463462108 • 21...
Page 22
See Use & Care section to perform the “Burner Flame Check” and for important safety instructions before using. CAUTION Failure to install tank correctly may allow gas hose to be damaged in operation, resulting in the risk of fire Tank screw LP Cylinder (not included) 22 • 463462108...
• Wires are loose or disconnected. • Reconnect wires or replace electrode/wire assembly. • Wires are shorting (sparking) between • Replace ignitor wire/electrode assembly. ignitor and electrode. • Dead battery. • Replace with a new AA-size alkaline battery. 463462108 • 23...
Page 24
• The worn nozzles don’t have enough “bite” to engage the valve. Try cylinder. with worn threads. a second LP dealer. One burner does not • Grease buildup or food particles in • Clean carry-over tube(s) with wire brush. light from other end(s) of carryover tube(s). burner(s). 24 • 463462108...
Page 25
• Electrodes are wet. • Has moisture accumulated • Use paper towel to remove moisture. on electrode and/or in burner ports? • Electrodes cracked or • Inspect electrodes for • Replace cracked or broken electrodes. broken “sparks at cracks. crack”. 463462108 • 25...
Consumer returns will not be accepted unless a valid Return Authorization is first acquired by calling 1-800-241-7548 and then clearly marked on the outside of the package and the package is shipped freight/postage pre-paid to the address above. 26 • 463462108...
Page 27
Merci d’avoir bien voulu remplir ce questionnaire. Vos réponses nous aideront et aideront d’autres compagnies à vous communiquer des offres spéciales susceptibles de vous intéresser. Si vous préférez ne pas recevoir d’informations concernant ces offres spéciales, veuillez cocher ici 463462108 • 27...
Page 28
Always ensure control knobs are in OFF position and regulator is attached to tank BEFORE opening tank valve to avoid low flames. Perform leak test regularly. Thank You for Your Purchase! Char-Broil, LLC • Columbus, GA 31902 • Printed in China...
