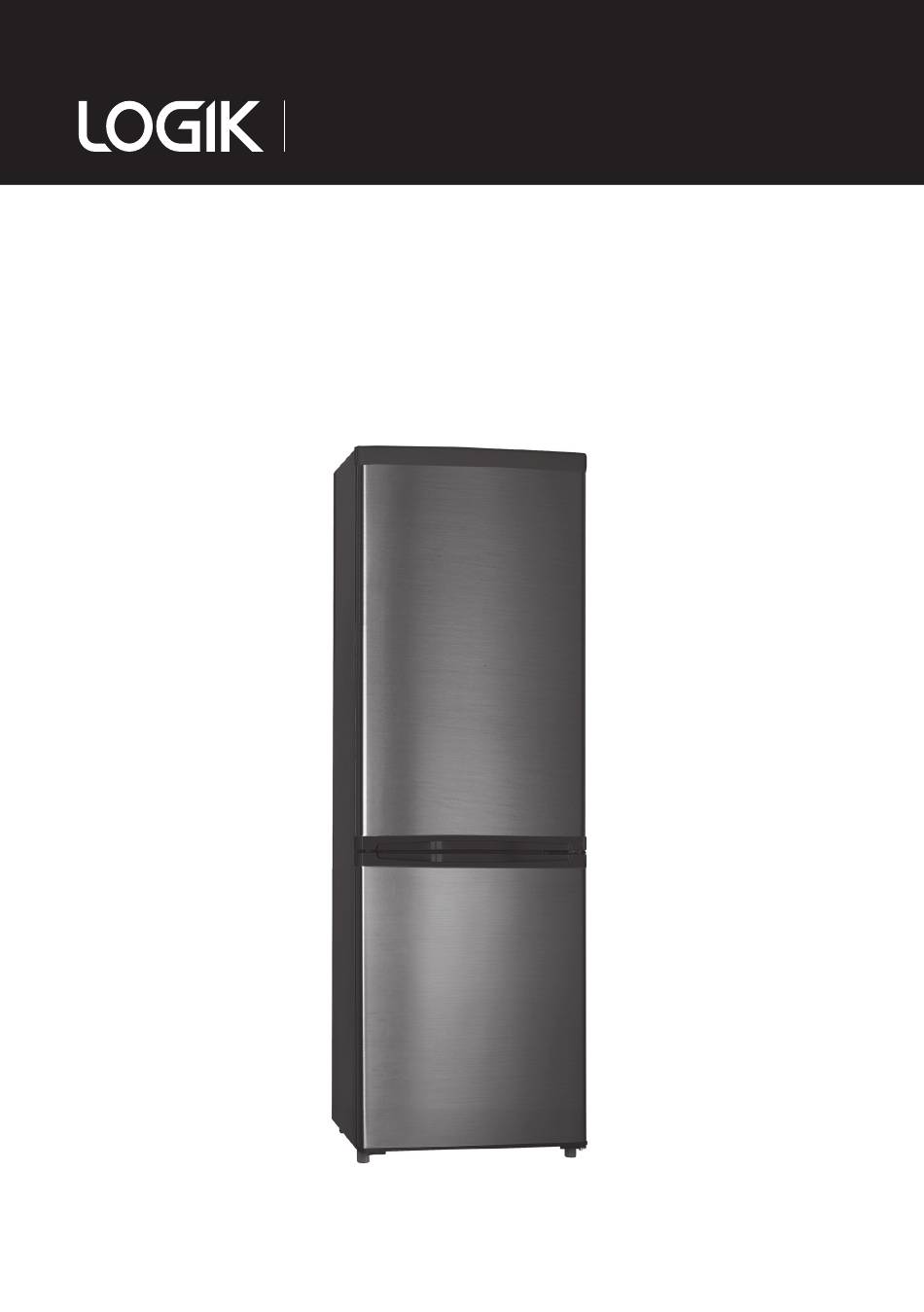

- Page 1 Instruction Manual Fridge Freezer LFC60SI14...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 6 Location ..................................7 Levelling the Unit ..............................7 Installing the Spacers ............................. 7 Free Space Requirements ............................ 7 Reversing the Door Swing ............................ 8 Cleaning Before Use .............................10 Before Using Your Unit ............................10 Product Overview ........................11 Operation ............................12 Switching On Your Unit ............................12... -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Unpacking
Thank you for purchasing your new Logik Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Location
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. -
Page 8: Reversing The Door Swing
INSTALLATION Reversing the Door Swing Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. - Page 9 INSTALLATION Remove the lower screws, hinge bracket and levelling foot from the unit bottom. Keep the matching bracket and foot together. Remove the remaining levelling foot from the 180˚ other side of the unit bottom, then reverse the position of the hinge. Transfer it to the corresponding position on the opposite side of the unit bottom.
-
Page 10: Cleaning Before Use
INSTALLATION Carefully set the upper door back into place. Fix the other, separately supplied upper door hinge into place. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. -
Page 11: Product Overview
Product Overview Internal Light, Thermostat Control Dial and Internal Fan On/Off Switch Glass Upper Shelves Balconies Salad Bin Cover Salad Bin Bottom Balcony Upper Drawers Freezer Glass Shelf Bottom Drawer Levelling Feet Egg Tray Ice Tray... -
Page 12: Operation
FD2-29吸顶灯部件 Operation FD2-29吸顶灯部件 Switching On Your Unit Before connecting the unit to the mains supply adjust the thermostat control dial to the desired position. Bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature (between 16°C and 38°C). -
Page 13: Tips For Keeping Food In The Unit
Tips for Keeping Food in the Unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. -
Page 14: Cleaning
Cleaning Defrosting Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor. Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate. Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment. -
Page 15: Maintenance
Maintenance Care When Handling / Moving Your Unit Hold the unit around its sides or base when moving it. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. -
Page 16: Specifications
Specifications Model LFC60SI14 Appliance Category Category 7 (Refrigerator – Freezer) Overall Dimension (W x D x H) 600 mm (W) x 650 mm (D) (with rear spacer) x 1850 mm (H) Fresh Food Storage Compartment 217L Volume Frozen Food Storage Volume... - Page 20 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK. IB-LFC60SI14-140122V1...
