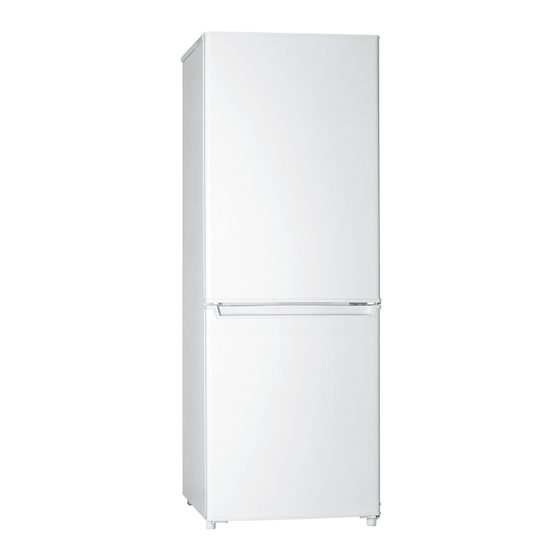

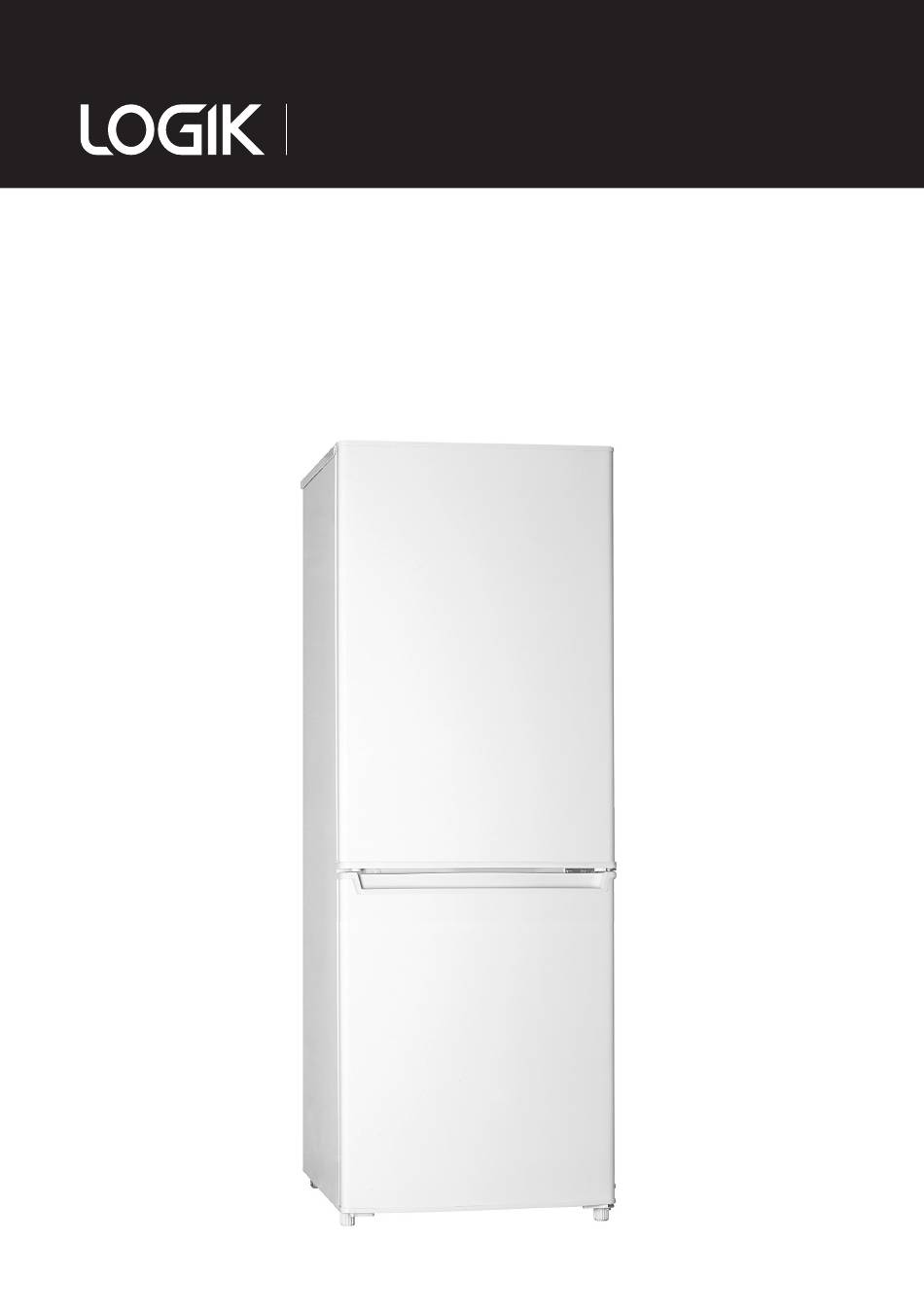

- Page 1 Instruction / Installation Manual Fridge Freezer LFC152W16...
-
Page 3: Table Of Contents
Contents Safety Warnings ................................... 4 Unpacking .................................... 6 Installation ................................... 7 Location ............................................7 Levelling the Unit ........................................7 Installing the Spacers ......................................7 Free Space Requirements ....................................7 Reversing the Door Swing ....................................8 Cleaning Before Use ......................................11 Before Using Your Unit ......................................11 Product Overview ................................12 Switching On Your Unit.......................................13 Adjusting the Temperature ....................................13... -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable) WARNING • Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
-
Page 6: Unpacking
Thank you for purchasing your new Logik Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. -
Page 8: Reversing The Door Swing
INSTALLATION Reversing the Door Swing Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. - Page 9 INSTALLATION Remove the lower screws, hinge bracket and levelling foot from the unit bottom. Keep the matching bracket and foot together. unscrew unscrew Remove the remaining levelling foot from the other side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.
- Page 10 INSTALLATION Remove and replace the pin on the reverse side 180˚ of the hinge. unscrew screw 10. Carefully set the upper door back into place. Re-attach the re-assembled upper door hinge on the opposite side of the unit. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.
-
Page 11: Cleaning Before Use
INSTALLATION Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. -
Page 12: Product Overview
Product Overview Internal Light and Thermostat Control Upper Glass Shelf Balcony Salad Bin Cover Bottom Salad Bin Balcony Upper Drawer Bottom Drawer Levelling Feet Egg Tray Ice Tray... -
Page 13: Switching On Your Unit
Switching On Your Unit Before connecting the unit to the mains supply, adjust the thermostat control to the desired position. Bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature (between 16°C and 38°C). -
Page 14: Tips For Keeping Food In The Unit
Tips for Keeping Food in the Unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. -
Page 15: Cleaning
Cleaning Defrosting Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor. Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate. Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment. -
Page 16: Maintenance
Maintenance Care When Handling / Moving Your Unit Hold the unit around its sides or base when moving it. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. -
Page 17: Specifications
Specifications Model LFC152W16 Appliance Category Category 7 (Refrigerator – Freezer) Overall Dimension (H x W x D) 1520 x 550 x 580 mm Fresh Food Storage Compartment 129L Volume Frozen Food Storage Volume Defrosting Type Fridge = Auto Defrost, Freezer = Frost-free Climate Class This appliance is intended to be used at an ambient temperature between 16°C and 38°C. - Page 20 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-LFC152W16-151222V1...
