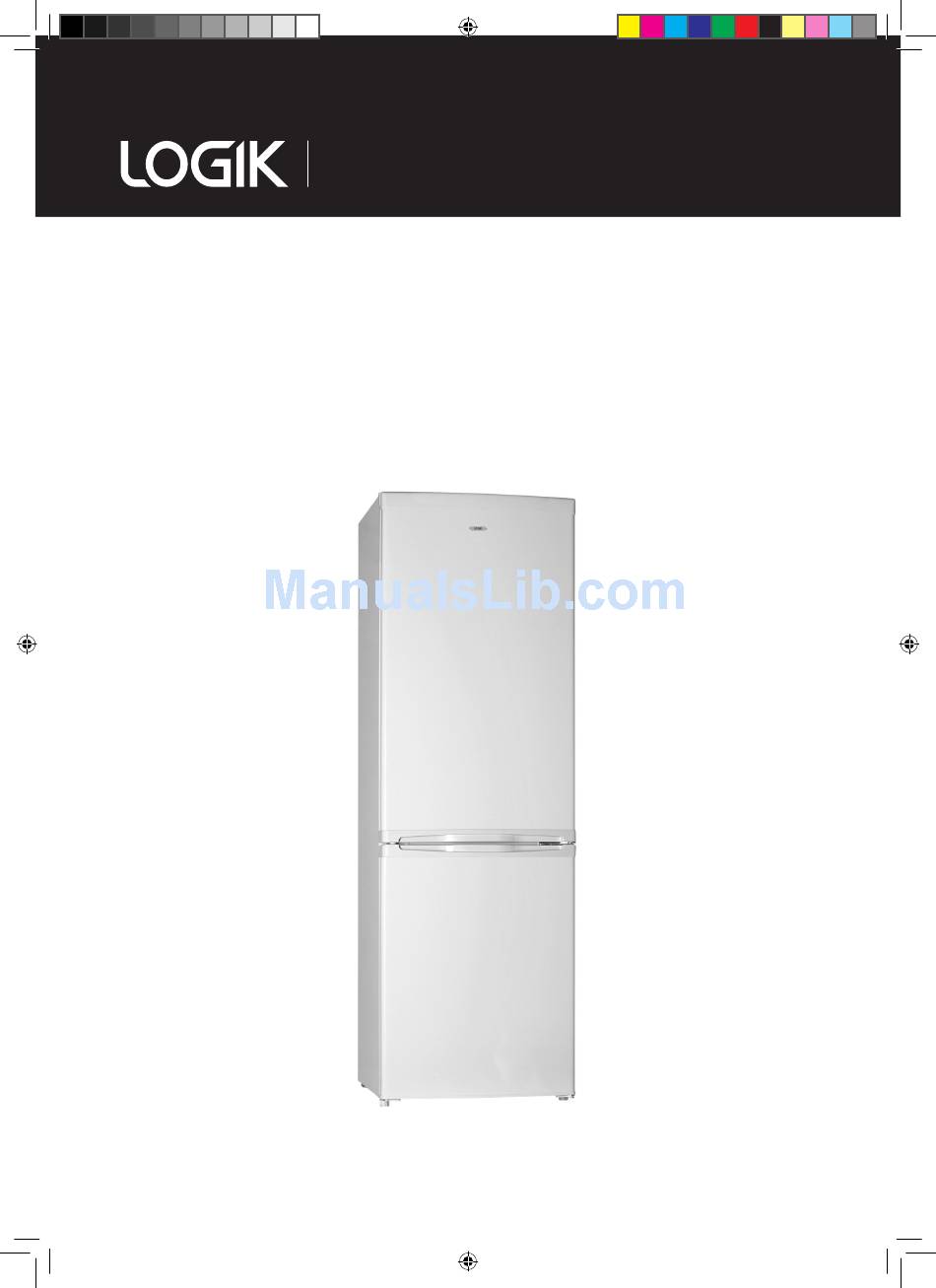

- Page 1 Instruction Manual Fridge Freezer LFC60W13 LFC60W13_IB_130124_Shaun.indd 1 24/01/2013 11:40 PM...
- Page 2 LFC60W13_IB_130124_Shaun.indd 2 24/01/2013 11:40 PM...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 5 Location ..................................6 Reversing the Door Swing .............................6 Rear Spacer .................................8 Levelling the Unit ..............................9 Cleaning Before Use ..............................9 Before Using Your Unit ............................9 Interior Accessories ..............................9 Product Overview ........................10 Operation ............................ 11 Switching On Your Unit ............................ -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. -
Page 5: Unpacking
Unpacking Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Glass shelves X3 Freezer glass shelves X1 Salad bin cover X1 Upper drawers X2 Bottom drawer X1 Salad bin X1 The Main Unit... -
Page 6: Location
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. - Page 7 INSTALLATION Remove the three screws, then remove the upper hinge that holds the door in place. Lift the upper door and place it on a padded surface to prevent it from scratching. On the top panel move the blanking plate to the side opposite of the hinge.
-
Page 8: Rear Spacer
INSTALLATION Reattach the bottom door hinge, screws and foot to the opposite side. After replacing the lower door, screw the middle hinge back onto the opposite side of the unit. Middle hinge Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge. -
Page 9: Levelling The Unit
INSTALLATION Door Space Requirements The unit’s door must be able to open fully as shown. Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. -
Page 10: Product Overview
Product Overview Internal Light and Thermostat Control Dial and Internal Fan On/Off Switch Adjustable Door Glass Shelves Shelves Salad Bin Cover Salad Bin Lower Door Shelf Upper Freezer Drawers Freezer Glass Shelf Lower Freezer Drawer Levelling Feet Egg Tray Ice Tray LFC60W13_IB_130124_Shaun.indd 10 24/01/2013 11:40 PM... -
Page 11: Operation
FD2-29吸顶灯部件 Operation FD2-29吸顶灯部件 Switching On Your Unit Before connecting the unit to the mains supply adjust the thermostat control dial to the desired position. Bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature (between 16°C and 38°C). -
Page 12: Tips For Keeping Food In The Unit
Tips for Keeping Food in the Unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. -
Page 13: Cleaning
Cleaning Defrosting Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor. Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate. Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment. -
Page 14: Maintenance
Maintenance Care When Handling / Moving Your Unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. -
Page 15: Specifications
Specifications Model LFC60W13 Appliance Category Category 7 (Refrigerator – Freezer) Overall Dimension (W x D x H) 600 mm (W) x 650 mm (D) (with rear spacer) x 1850 mm (H) Fresh Food Storage Compartment 217L Volume Frozen Food Storage Volume... - Page 16 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK IB-LFC60W13-130124V1 LFC60W13_IB_130124_Shaun.indd 16 24/01/2013 11:40 PM...
