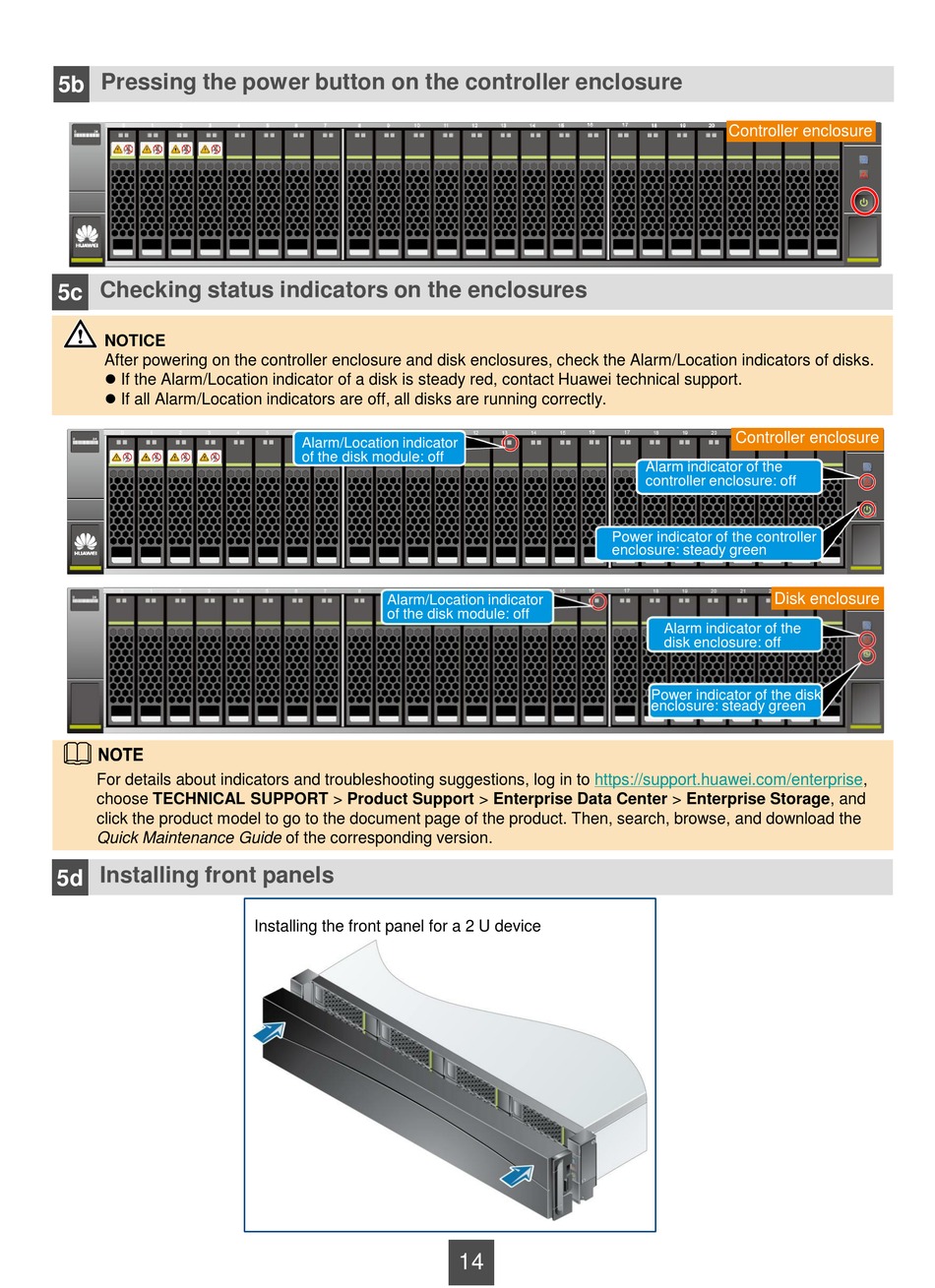

Huawei OceanStor 5110F V5 Quick Installation Manual page 14

Pressing the power button on the controller enclosure
5b
Checking status indicators on the enclosures
5c
NOTICE
After powering on the controller enclosure and disk enclosures, check the Alarm/Location indicators of disks.
 If the Alarm/Location indicator of a disk is steady red, contact Huawei technical support.
 If all Alarm/Location indicators are off, all disks are running correctly.
For details about indicators and troubleshooting suggestions, log in to https://support.huawei.com/enterprise,
choose TECHNICAL SUPPORT > Product Support > Enterprise Data Center > Enterprise Storage, and
click the product model to go to the document page of the product. Then, search, browse, and download the
Quick Maintenance Guide of the corresponding version.
Installing front panels
5d
Alarm/Location indicator
of the disk module: off
Alarm/Location indicator
of the disk module: off
Alarm/Location indicator
of the disk enclosure: off
Installing the front panel for a 2 U device
Power indicator of the controller
enclosure: steady green
14
Controller enclosure
Controller enclosure
Alarm indicator of the
controller enclosure: off
Disk enclosure
Alarm indicator of the
disk enclosure: off
Power indicator of the disk
enclosure: steady green
Alarm indicator of the
disk enclosure: off
Power indicator of the
disk enclosure:
steady green
