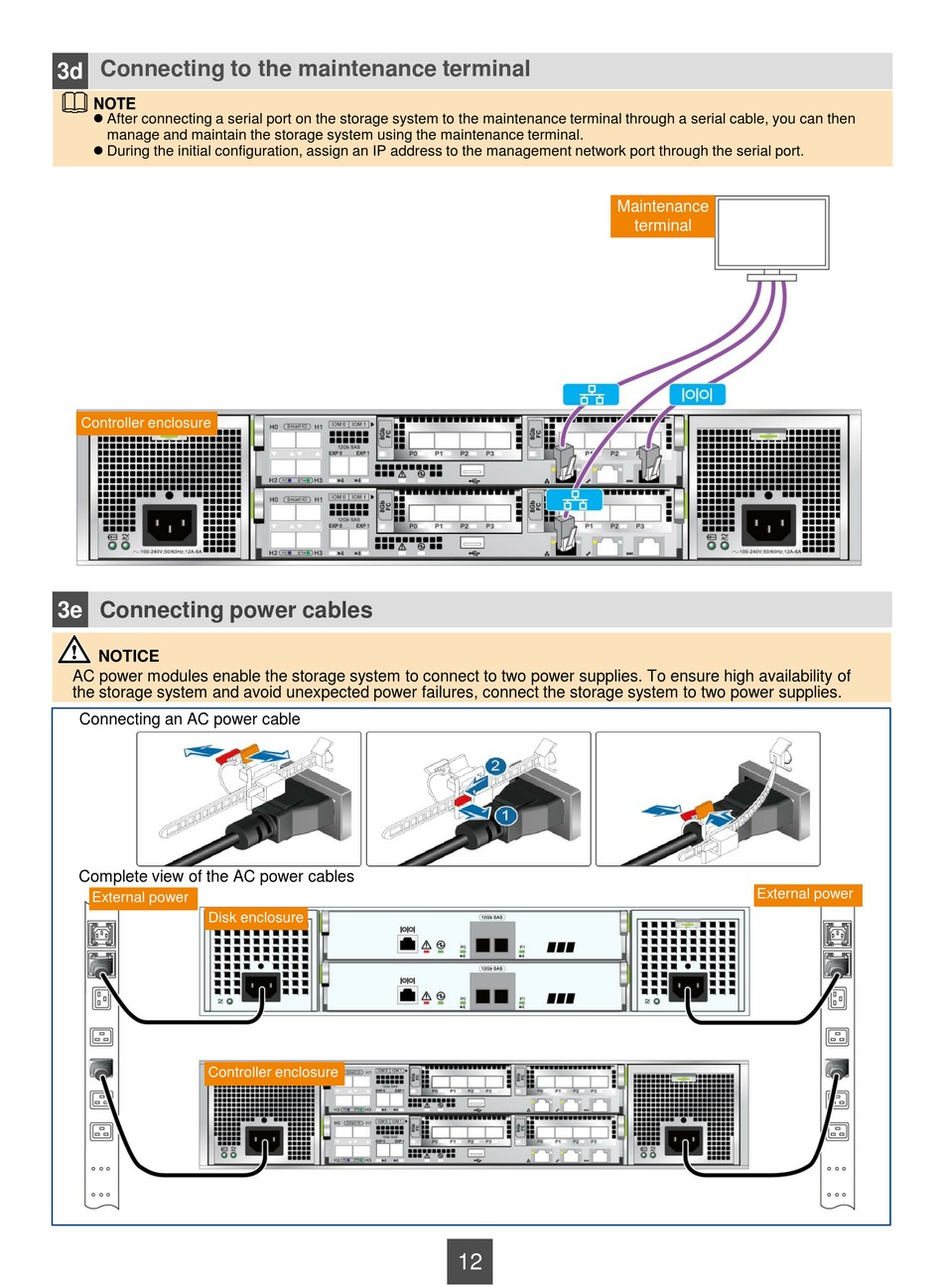

Connecting to the maintenance terminal
3d
 After connecting a serial port on the storage system to the maintenance terminal through a serial cable, you can then
manage and maintain the storage system using the maintenance terminal.
 During the initial configuration, assign an IP address to the management network port through the serial port.
Controller enclosure
3e Connecting power cables
NOTICE
AC power modules enable the storage system to connect to two power supplies. To ensure high availability of
the storage system and avoid unexpected power failures, connect the storage system to two power supplies.
Connecting an AC power cable
Complete view of the AC power cables
External power
Disk enclosure
Controller enclosure
Maintenance
terminal
12
External power
