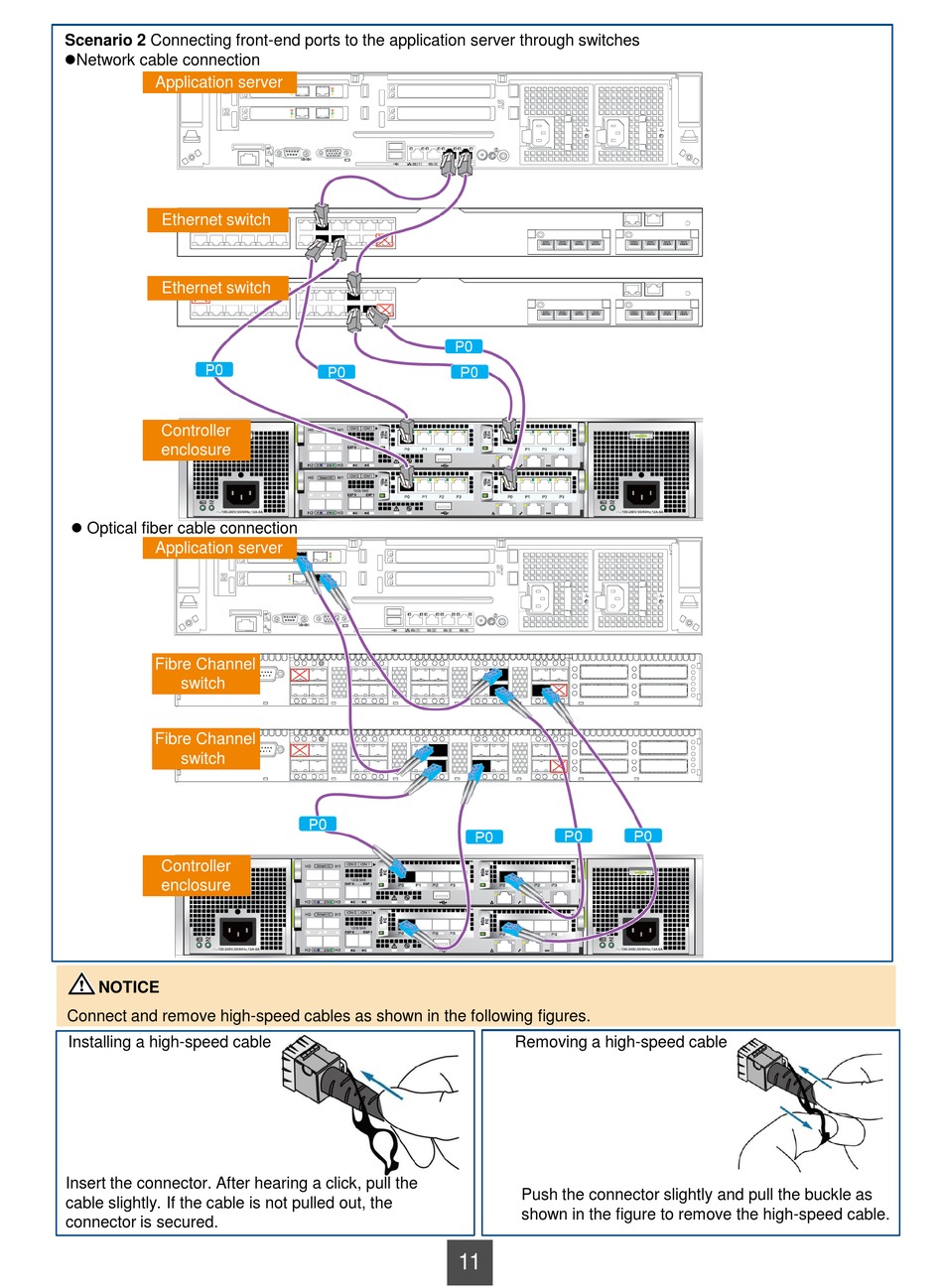

Scenario 2 Connecting front-end ports to the application server through switches
Network cable connection
Application server
Ethernet switch
Ethernet switch
Controller
enclosure
 Optical fiber cable connection
Application server
Fibre Channel
switch
Fibre Channel
switch
Controller
enclosure
NOTICE
Connect and remove high-speed cables as shown in the following figures.
Installing a high-speed cable
Insert the connector. After hearing a click, pull the
cable slightly. If the cable is not pulled out, the
connector is secured.
Removing a high-speed cable
Push the connector slightly and pull the buckle as
shown in the figure to remove the high-speed cable.
