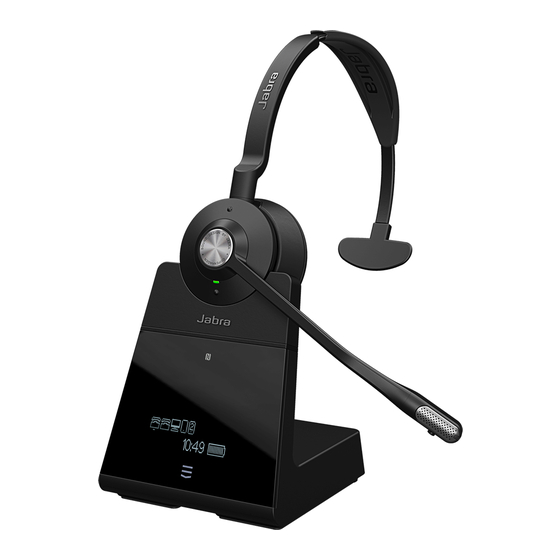

Jabra Engage 75 Mono

How do I connect my Jabra wireless headset with the Jabra

Link 14201-40 to my supported Panasonic desk phone so I

have remote call control using my headset?

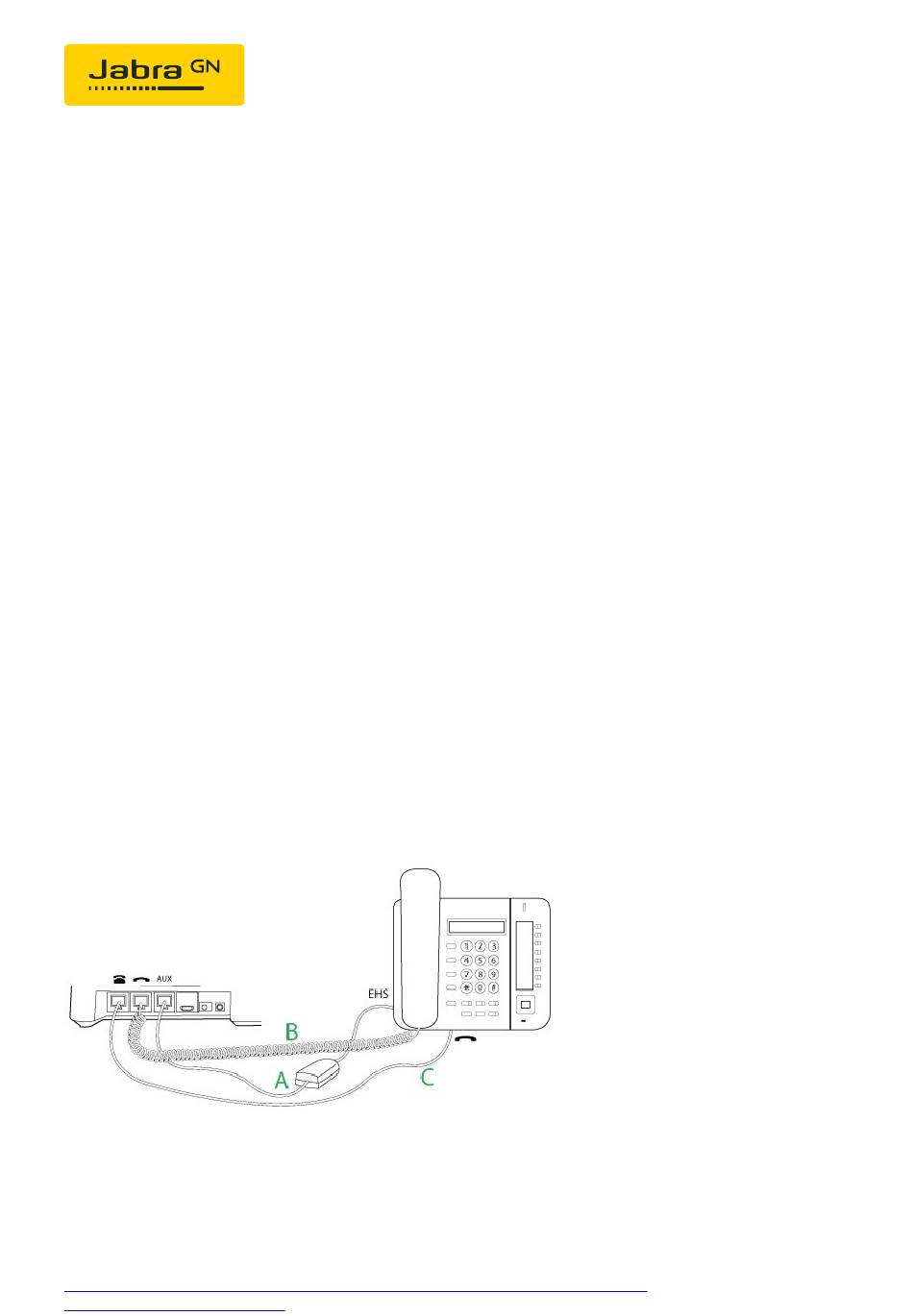

Connection:

1. Connect the AC adapter that is supplied with the headset to the

headset base. Connect the other end to an electrical outlet.

2. Unplug the Panasonic handset cord from the desk phone base.

3. Connect the Panasonic handset cord to the headset base socket

marked with a handset icon.

4. Connect the modular plug cable that is supplied with the headset to

the handset interface on your Panasonic phone. Connect the end with

the blue band to the headset base socket that is marked with a phone

icon.

5. Connect the Jabra Link 14201-40 EHS cable with the red band to the

AUX interface on the headset base. Connect the 3.5 mm plug to the

EHS interface on the Panasonic phone.

1. Follow the setup instructions for your Jabra wireless headset. If the

https://www.jabra.ie/supportpages/jabra-engage-75/9556-583-117/faq/311d504e-

e776-48f5-b882-6f384e6d7838

19/10/2023 07:44

Page 1 of 2
