Item# BP-LUCWD58

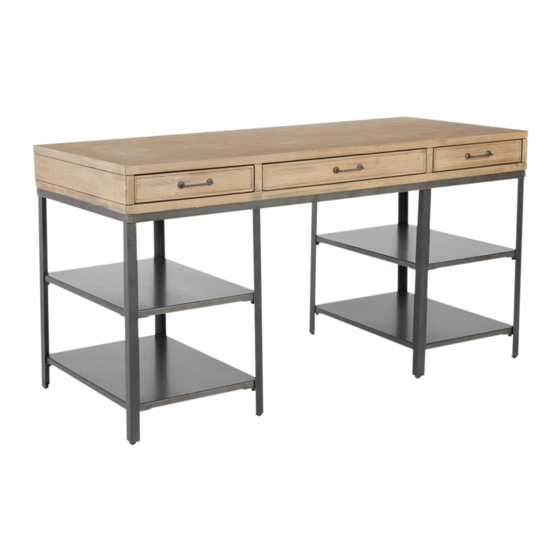

LUCCA WRITING DESK
ASSEMBLY INSTRUCTIONS
IF PARTS ARE MISSING OR DAMAGED, DO NOT RETURN TO STORE
To order missing or replacement parts, contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts
number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
Advertisement
Table of Contents
Related Manuals for Bassett INSPIRED LUCCA BP-LUCWD58
Summary of Contents for Bassett INSPIRED LUCCA BP-LUCWD58

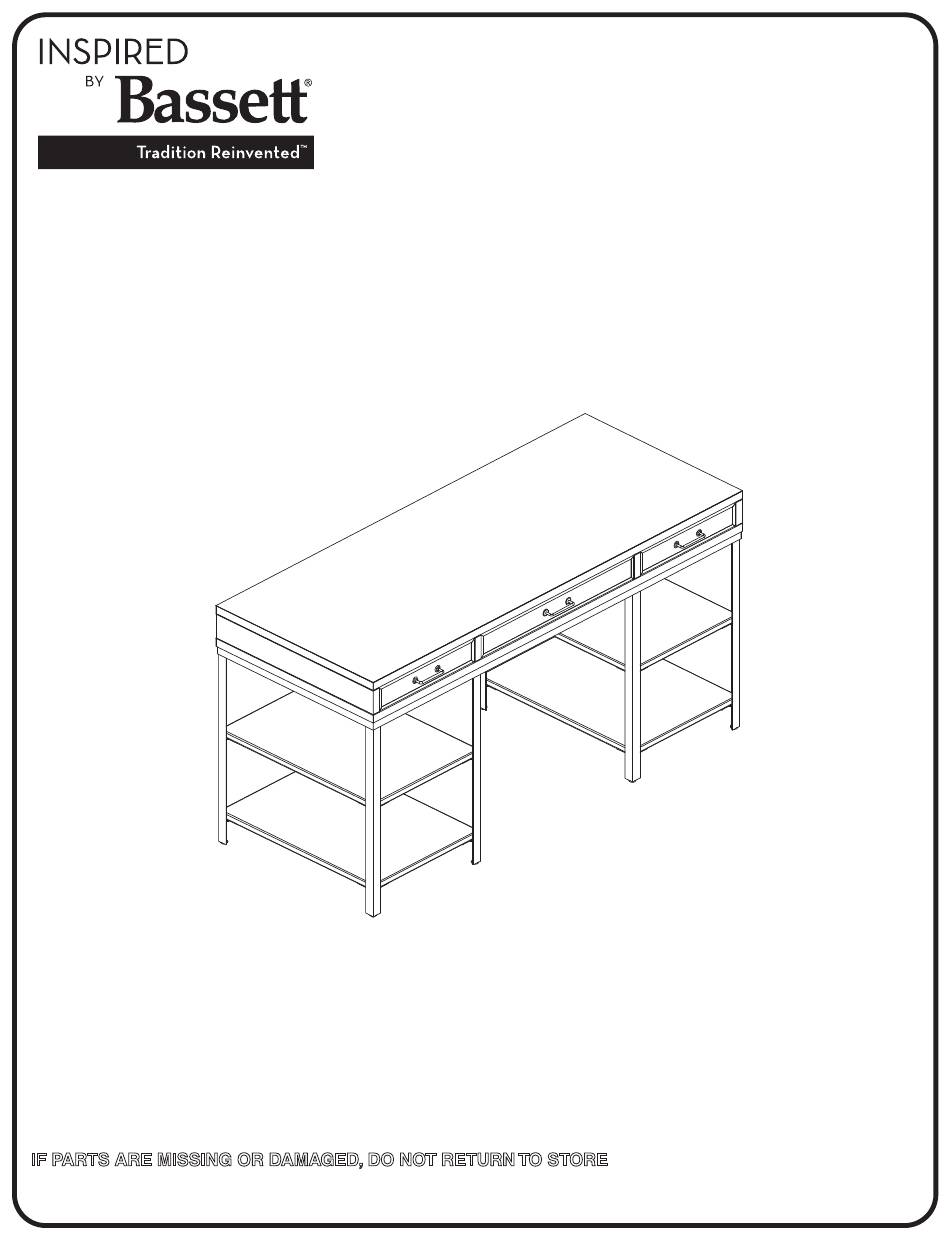

- Page 1 Item# BP-LUCWD58 LUCCA WRITING DESK ASSEMBLY INSTRUCTIONS IF PARTS ARE MISSING OR DAMAGED, DO NOT RETURN TO STORE To order missing or replacement parts, contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
- Page 2 To make a warranty claim, contact Customer Service, provide model number, sales receipt and description of the problem. It is the customer’s responsibility to prepay freight on any components returned to the factory. INSPIRED by Bassett will pay return freight on ®...
- Page 3 PARTS LIST (2) Shelf (4 PCS) (1) Table Top (1 PC) (4) Middle Drawer (1 PC) (3) Leg (8 PCS) (5) Side Drawer (2 PCS)
- Page 4 HARDWARE LIST DRAWING DESCRIPTION SIZE QTY. Bolt 5/16” x 3/4” 8 PCS 5/16” x 1/2” 16 PCS Flat Washer 5/16” x 3/4” x 0.08” 24 PCS Lock Washer 5/16” x 1/2” x 0.08” 24 PCS Allen Wrench 1/2” 1 PC THANK YOU for purchasing this quality product.
- Page 5 STEP 1: Remove Side Drawers (5) and Middle Drawer (4) from Table Top (1). STEP 2: Attach Legs (3) to Table Top (1) using one Bolt (A), one Lock Washer (D) and one Flat Washer (C) for each leg. DO NOT FULLY TIGHTEN BOLTS.
- Page 6 STEP 3: Secure Shelves (2) to Legs (3) using four Nuts (B), four Lock Washers (D) and four Flat Washers (C) for each shelf. FULLY TIGHTEN ALL BOLTS. STEP 4: Remove nuts from Drawers (4 & 5). Insert handles in front of Drawers (4 & 5) and secure using two flat washers and two nuts FULLY TIGHTEN ALL BOLTS.
- Page 7 STEP 5: Insert Side Drawers (5) and Middle Drawer (4) into assembled desk.
- Page 8 FURNITURE CARE: - Dust with a soft cloth following the grain pattern of the wood. - Dust often to remove the everyday abrasive particles from the wood surfaces. - Before dusting, moisten cloth lightly with a spray product. - Wood finishes also benefit from an occasional polishing. Contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m.
