Speco CVC-638 Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
CVC-638/170

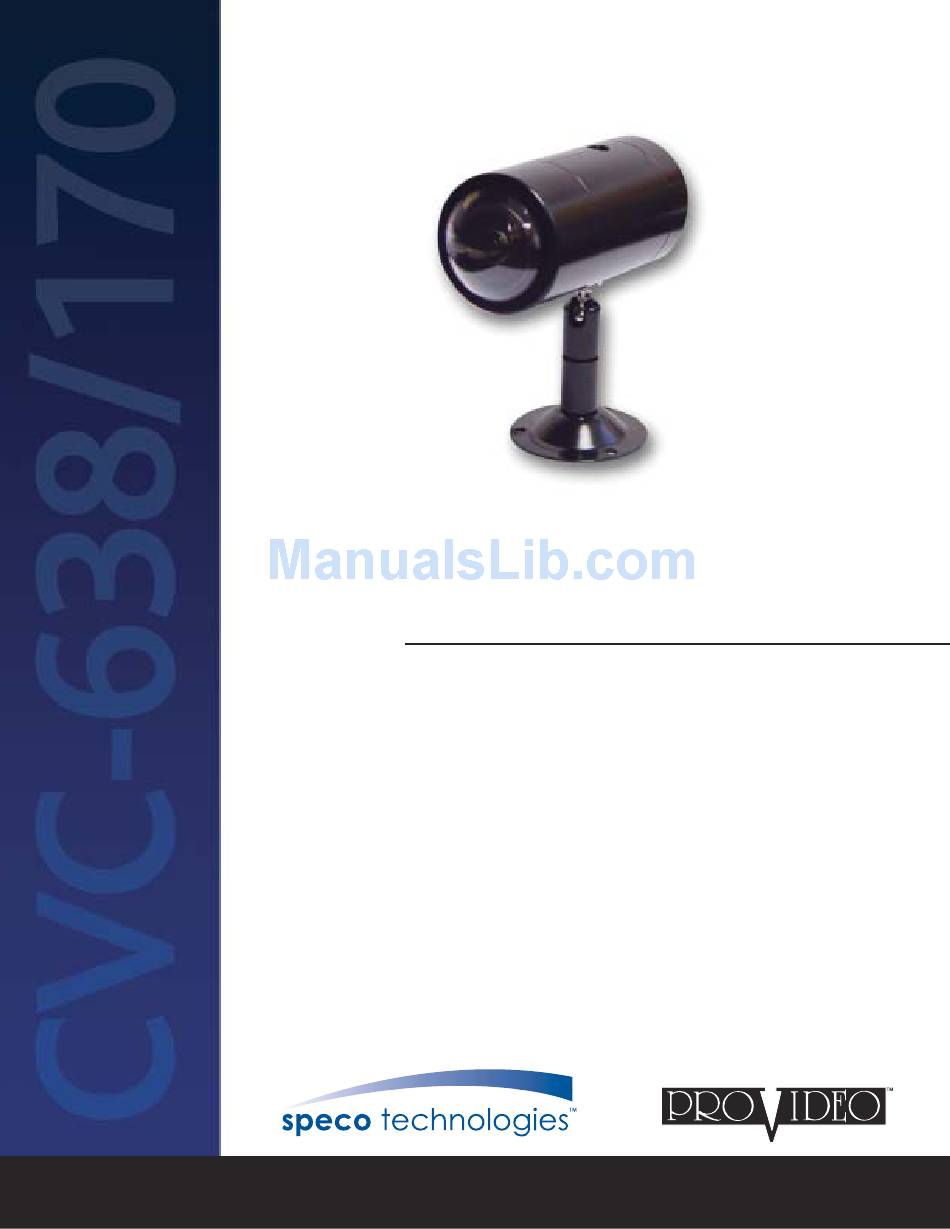

Ultra Wide Angle Color Bullet Camera
The weatherproof CVC-638/170 offers a 170-degree field of view that allows you to
see small areas like elevators, vestibules, mantraps and counting rooms without any
loss of coverage. The ultra-wide angle 2.2mm lens will fully view these small spaces
when properly installed and positioned. It will even see under itself! The CVC-638/170
comes complete with a mounting bracket (which can be attached to the top or
bottom) and power supply.

Specifications

Resolution
Image Device
Electronic Shutter Control
Lens/Angle of View
Minimum Illumination
Video Output Level
Video S/N Ratio
Effective Pixel Array
Scanning System
Scanning Frequency
Operating Temperature
Power Consumption
Power Supply
Dimensions
Weight
For more information contact us at:
380 TV lines
1/3" Color CCD
Auto 1/60-1/100,000 sec.
2.2mm, 170˚
1 lux - at F:2.0/30 IRE
Color composite video signal 1Vp-p/75Ω
Greater than 48dB
512 Hor. x 492 Ver.
NTSC Color 525 TV lines 60 fields/sec
Hor. 15.734 KHz Vert. 60 Hz
14˚F to 122˚F
115ma TYP.
Regulated 12V DC power supply
(UL and CSA listed) include
1-1/2" W x 3-1/5" L
Approx. 6.53oz.
