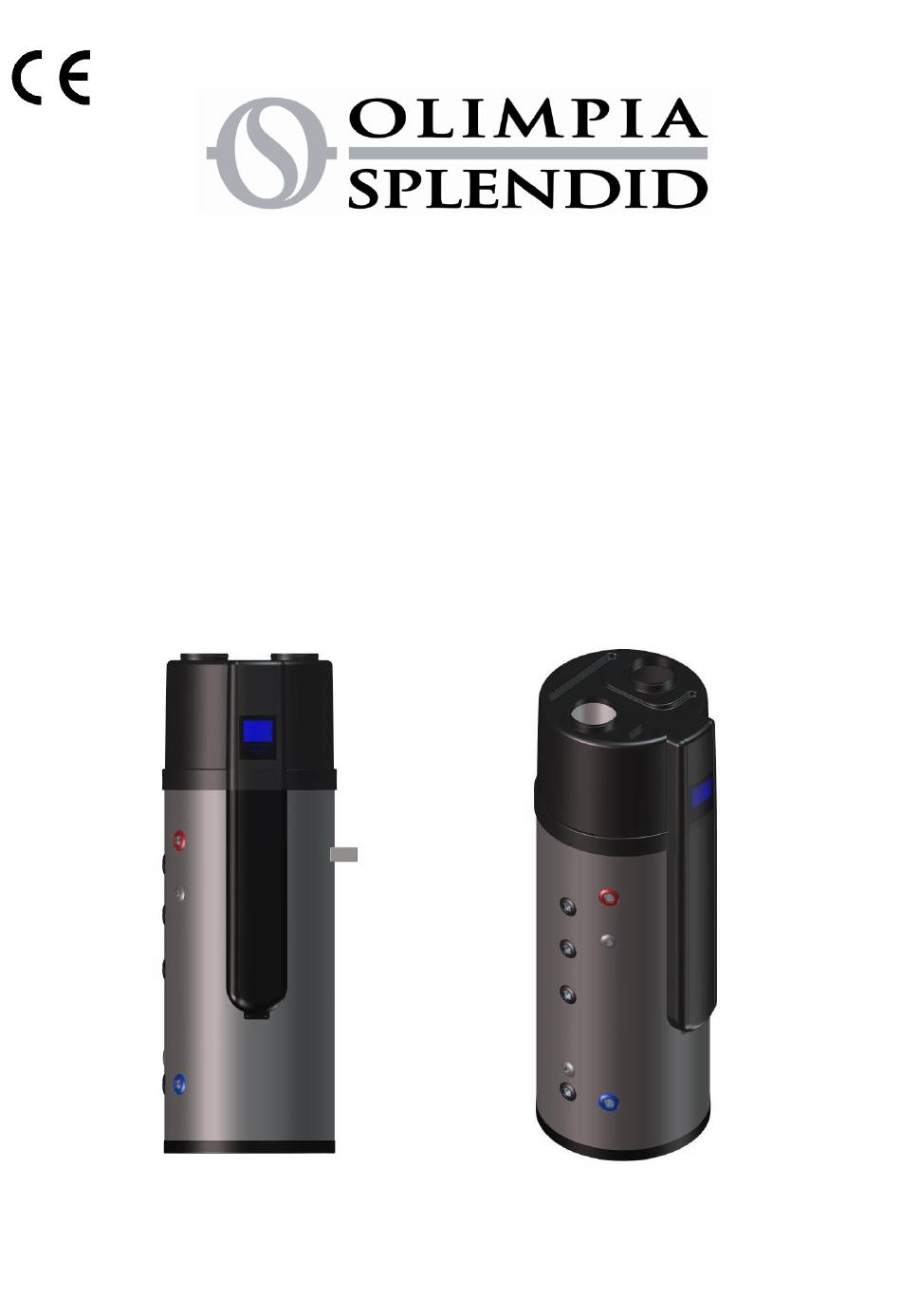

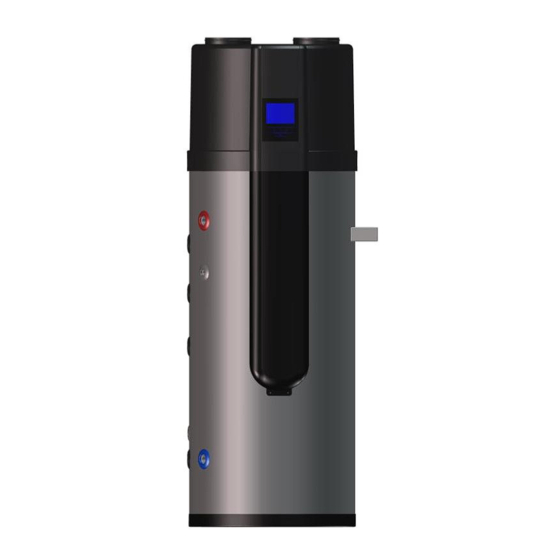

SANITARY WATER HEAT PUMP WITH WATER TANK
USER-INSTALLER MANUAL
SHERPA
SHW 200
SHW 300S
This manual has been created for informative purpose. The company declines any responsibility for the results of any projecting or any installation based on the explanations and/or on
the technical specifications provided in this manual. It is besides forbidden the reproduction under any form of the texts and of the figures contained in this manual.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Olimpia splendid SHERPA SHW 200
Summary of Contents for Olimpia splendid SHERPA SHW 200
- Page 1 SANITARY WATER HEAT PUMP WITH WATER TANK USER-INSTALLER MANUAL SHERPA SHW 200 SHW 300S This manual has been created for informative purpose. The company declines any responsibility for the results of any projecting or any installation based on the explanations and/or on the technical specifications provided in this manual.
- Page 2 SHERPA SHW Sanitary water heat pump 12-2016 A.Bonfante Inclusion of the specifications of anti-legionella cycle and the conformity. 04-2016 A.B. P.F. Adding the data for the climate conditions with heat source outside air Chapters / Paragraphs that were modified: 4.1 - 8.4 - 9.5 - 9.6 - 9.6.4 - 11.4.1 - 11.4.6 - 11.5 09-2015 D.P.
-
Page 3: Table Of Contents
SHERPA SHW Sanitary water heat pump INDEX AIM AND CONTENTS OF THIS MANUAL ......................4 HOW TO KEEP THIS MANUAL ..........................4 GRAPHIC SYMBOLS USED IN THE MANUAL ......................4 SAFETY LAWS ..............................4 PERMITTED USE ............................... 4 GENERAL SAFETY GUIDELINES .......................... 5 WORKERS’... - Page 4 SHERPA SHW Sanitary water heat pump 11.1 USER INTERFACE ..............................20 11.2 OPERATIONS ................................ 20 11.3 LCD ................................22 ICONS 11.4 MAIN LOGICS ............................... 23 11.4.1 Water temperature difference for compressor starting ................23 11.4.2 External pump .............................. 23 11.4.3 Flow switch ..............................
-
Page 5: Aim And Contents Of This Manual
SHERPA SHW Sanitary water heat pump The SHERPA SHW manual contains all the necessary information for the better use of the equipment under safety conditions for the operator. 1 AIM AND CONTENTS OF THIS MANUAL This manual provides basic information as for the installation, the operation and the maintenance of SHERPA SHW units. It is addressed to machine operators and it enables them to use the equipment efficiently, even if they do not have any previous specific knowledge of it. -
Page 6: General Safety Guidelines
SHERPA SHW Sanitary water heat pump 4 GENERAL SAFETY GUIDELINES Before beginning to operate on SHERPA SHW units every user has to be perfectly knowledgeable about the functions of the equipment and its controls and has to have read and understood the information listed in this manual. It’s strictly forbidden to remove and/or tamper with any safety device. -
Page 7: Refrigerant Safety Data Sheet
SHERPA SHW Sanitary water heat pump 4.4 REFRIGERANT SAFETY DATA SHEET Name: R134a (100% ,1,1,2-Tetrafluoroethane). RISK INDICATIONS Major risks: Asphyxia. Specific risks: The rapid evaporation may cause freezing. It can cause cardiac arrhythmia. FIRST AID General informations: Never give anything by mouth to an unconscious person. Inhalation: Move to fresh air. -
Page 8: General Characteristics
SHERPA SHW Sanitary water heat pump 5 GENERAL CHARACTERISTICS The hot water heat pump is one of the most economical systems to heat the water for family domestic use or for small business activities. Using free renewable energy from the air, the unit is highly efficient with low running costs. Its efficiency can be up to 3~4 times more than conventional gas boilers or electrical heaters. -
Page 9: Available Models
To adapt to different installation requirements, the SHERPA SHW unit is available in 2 versions: SHERPA SHW 200: standard that provides the heat pump and the electric heater as heating sources; SHERPA SHW 300S: with auxiliary coil for use in combination with solar panels;... -
Page 10: Overview Of The Unit
SHERPA SHW Sanitary water heat pump 8 OVERVIEW OF THE UNIT 8.1 PARTS AND DESCRIPTIONS 8.2 DIMENSIONS... - Page 11 SHERPA SHW Sanitary water heat pump Dimensions SHW 200 SHW 300S [mm] 1638 1888 1124 1374 1062 1312 1182 φ 177 φ 654 SHW 200 SHW 300S DIMENSIONS POS. DESCRIPTIONS SHW 200 SHW 300S Aluminium heat exchanger 3/8” 3/8” 17 mm ...
-
Page 12: Holes For Cables
SHERPA SHW Sanitary water heat pump 8.3 HOLES FOR CABLES 8.4 HOW TO REPLACE THE MAGNESIUM STICK The Magnesium stick is an anti-corrosion element. It is assembled in the water tank to avoid the creation of fur around the inside tank and to protect the tank, and other components. -
Page 13: Schematic Overview Of The Water And Gas Circuit
SHERPA SHW Sanitary water heat pump 8.6 SCHEMATIC OVERVIEW OF THE WATER AND GAS CIRCUIT 8.7 SCHEMATIC OVERVIEW OF THE GAS CIRCUIT 9 INSTALLATION WARNING: All the operations described below must be carried out only by QUALIFIED PERSONNEL. Prior to any work on the unit, make sure that the power supply is disconnected. -
Page 14: Safety Instructions
SHERPA SHW Sanitary water heat pump 9.2 SAFETY INSTRUCTIONS To prevent injury to the user, other people, or property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Install the unit only when it complies with local regulations, by-laws and standards. Check the main voltage and frequency. This unit is only suitable for earthed sockets, connection voltage 220 - 240 V ~ / 50Hz. -
Page 15: Manual Transport
SHERPA SHW Sanitary water heat pump 9.3.2 Manual transport For the manual transport, the wooden pallet can be used. Using ropes or carrying straps, a second or third handling configuration is possible. With this type of handling, it is advised that the maximum permissible inclination angle of 45 degree is not exceeded. If transport in an inclined position cannot be avoided, the unit should be taken into operation one hour after it has been moved into final position. -
Page 16: Installation Overview
SHERPA SHW Sanitary water heat pump If air inlet and/or outlet pipes are connected, portion airflow and capacity in heat pump unit will lose. If the unit connects with air ducts it should be DN 180 mm for pipes or 180 mm internal diameter flexible hose. Total length of the ducts should not be longer than 8 m or the maximum static pressure should not exceed than 60 Pa. -
Page 17: Hydraulic Connections
SHERPA SHW Sanitary water heat pump 9.6 HYDRAULIC CONNECTIONS The hydraulic connections have to be installed in accordance with national and local regulations. Pipes can be made up of multilayer pipe, polyethylene or stainless steel and must withstand at least 100°C and 10 bar. Pipes have to be designed depending on the desired water flow and on the hydraulic pressure drops of the system. -
Page 18: Water Emptying
SHERPA SHW Sanitary water heat pump 9.6.3 Water emptying If the unit needs cleaning, moving etc, the tank should be emptied. 1) Close the cold water inlet 2) Open the hot water outlet and open the manual valve of drainpipe 3) Start the water emptying. -
Page 19: Electrical Connections
SHERPA SHW Sanitary water heat pump Installation diagram in case of solar water circulation Note: solar heat exchange coil is present only in SHW 300S unit 9.7 ELECTRICAL CONNECTIONS Check out that the power supply meets the unit’s electric nominal data (tension, phases, frequency) reported on the technical label of the unit. -
Page 20: Start Up
SHERPA SHW Sanitary water heat pump To access the electrical box: 1) remove the plastic cover of the top part 2) remove the metallic cover of the electrical box unscrewing the 4 screws 3) the unit is already provided with a power supply cable connected to the electrical box. If it’s necessary to disconnect it and to connect a longer cable, or if it’s necessary to connect an ON/OFF remote signal, or an external flow switch and pump for circulating sanitary water or solar water, please refer to the wiring diagram. -
Page 21: Operation The Unit
SHERPA SHW Sanitary water heat pump 11 OPERATION THE UNIT 11.1 USER INTERFACE Electrical heater Set button ON/OFF button Clock/Timer setting button Unit ON/OFF button UP adjust button DOWN adjust button 11.2 OPERATIONS 1. Power ‘ON’ When turning ‘ON’ the power, whole icons are displayed on the controller screen for 3 seconds. After checking if everything is ok, the unit enters into the standby mode. - Page 22 SHERPA SHW Sanitary water heat pump parameter checking. Select the parameter by pressing button. Press to exit. 2) When the unit is ‘OFF’ (not on clock and timer setting status), press buttons together for 2” and insert the password confirming each field with button to entry the installer parameter setting.
-
Page 23: Lcd Icons
SHERPA SHW Sanitary water heat pump 11.3 LCD icons 1. Hot water available The icon indicates that the domestic hot water temperature reaches the set point. The hot water is available for use. Heat pump is standby. 2. Fan ventilation The icon indicates that the fan ventilation function is enabled. -
Page 24: Main Logics
SHERPA SHW Sanitary water heat pump 11.4 MAIN LOGICS 11.4.1 Water temperature difference for compressor starting Parameter 1 “water temp. difference TS6” is used to control the compressor on or off. When down tank temperature T2 is lower than setting temperature TS1-TS6, the compressor will work to heat the water until reaching the setting temperature TS1. -
Page 25: Electrical Heater
SHERPA SHW Sanitary water heat pump The logic starts to calculate t2 only when T3 has reached TS3. It’s possible to set the interval between the disinfection cycles (parameter 21). If the unit is “OFF”(and also if ON/OFF contact is opened), the disinfection starts with the same logic of “ON” unit. If the unit is disconnected from the power supply, the disinfection cycle will not occure. -
Page 26: On/Off Contact
SHERPA SHW Sanitary water heat pump E-heater turned ON or OFF condition 3: (when the unit is turned off) 1. ON：if the E-heater button on the control panel has been turned on manually when the unit is at OFF status, the E-heater will work until the tank water T3 reaches the setting temperature TS2;... -
Page 27: Parameter Checking And Adjustment
SHERPA SHW Sanitary water heat pump 11.5 PARAMETER CHECKING AND ADJUSTMENT Some parameters can be checked and adjusted by the controller. Below is the parameter list. Visibility Parameter U=user Description Range Default Remarks I=installer Adjustable (it can be also modified by Tank water setting temp. -
Page 28: Malfunctioning Of The Unit And Error Codes
SHERPA SHW Sanitary water heat pump 11.6 MALFUNCTIONING OF THE UNIT AND ERROR CODES When an error occurs or the protection mode is set automatically, the circuit board and the wired controller will both display the error message. Protection/ Error code LED indicator Possible reasons Corrective actions... -
Page 29: Maintenance And Periodical Controls
SHERPA SHW Sanitary water heat pump 12 MAINTENANCE AND PERIODICAL CONTROLS WARNING: All the operations described in this chapter HAVE TO BE CARRIED OUT BY TRAINED STAFF ONLY. Before any operation or before entering the inner components of the unit, be sure that the power supply is disconnected. -
Page 30: Environmental Protection
SHERPA SHW Sanitary water heat pump 12.1 ENVIRONMENTAL PROTECTION According to the norms dealing with the use of depleting stratospheric ozone substances, it is forbidden to release refrigerants fluids in the atmosphere. They have to be collected and delivered to the seller or to proper gathering points at the end of their operating life. -
Page 31: Technical Characteristics
SHERPA SHW Sanitary water heat pump 16 TECHNICAL CHARACTERISTICS TECHNICAL DATA SHW 200 SHW 300S Power supply V/Ph/Hz 220-240/1/50 Water tank real capacity Heating capacity 1870* (+1200**) Rated power input 503* (+1200**) Nominal current 2.23* (+5.2**) 3.72* Max power input 765 (+1200**) Max current 3.5 (+5.2**) -
Page 32: Working Limits Of Heat Pump
SHERPA SHW Sanitary water heat pump 17 WORKING LIMITS OF HEAT PUMP It’s recommended that the unit may work inside the working limits reported here below, in order to avoid the possible intervention of safety devices. In each case, regarding high temperatures (water temperature between 47 and 65°C, air temperature between 25 and 43°C), if the user sets a temperature that is out of the working envelope, the heat pump adapts automatically its water set to the limits indicated in the diagram here below. -
Page 33: Wiring Diagram
SHERPA SHW Sanitary water heat pump 18 WIRING DIAGRAM Please refer to the wiring diagram on the electric box. 18.1 STANDARD CONNECTION... -
Page 34: Connection Of An Auxiliary Heat Source
SHERPA SHW Sanitary water heat pump 18.2 CONNECTION OF AN AUXILIARY HEAT SOURCE... -
Page 35: Connection Of An Auxiliary Heat Source By Means Of An External Switch
SHERPA SHW Sanitary water heat pump 18.3 CONNECTION OF AN AUXILIARY HEAT SOURCE BY MEANS OF AN EXTERNAL SWITCH... -
Page 36: Fiche According To Regulation (Eu) No 812/2013
SHERPA SHW Sanitary water heat pump 19 FICHE ACCORDING TO REGULATION (EU) No 812/2013 Modelli / Models SHW 200 SHW 300S Profilo di carico dichiarato / Declared load profile Classe di efficienza energetica di riscaldamento dell’acqua Water heating energy efficiency class Aria interna +20°C / Indoor air +20°C 108 % 114 %... - Page 37 SHERPA SHW Sanitary water heat pump The technical data and the aesthetic characteristics of the products can undergo changes. Olimpia Splendid reserves the right to modify them at any time without notice...
