Speco CVC-325WPS Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

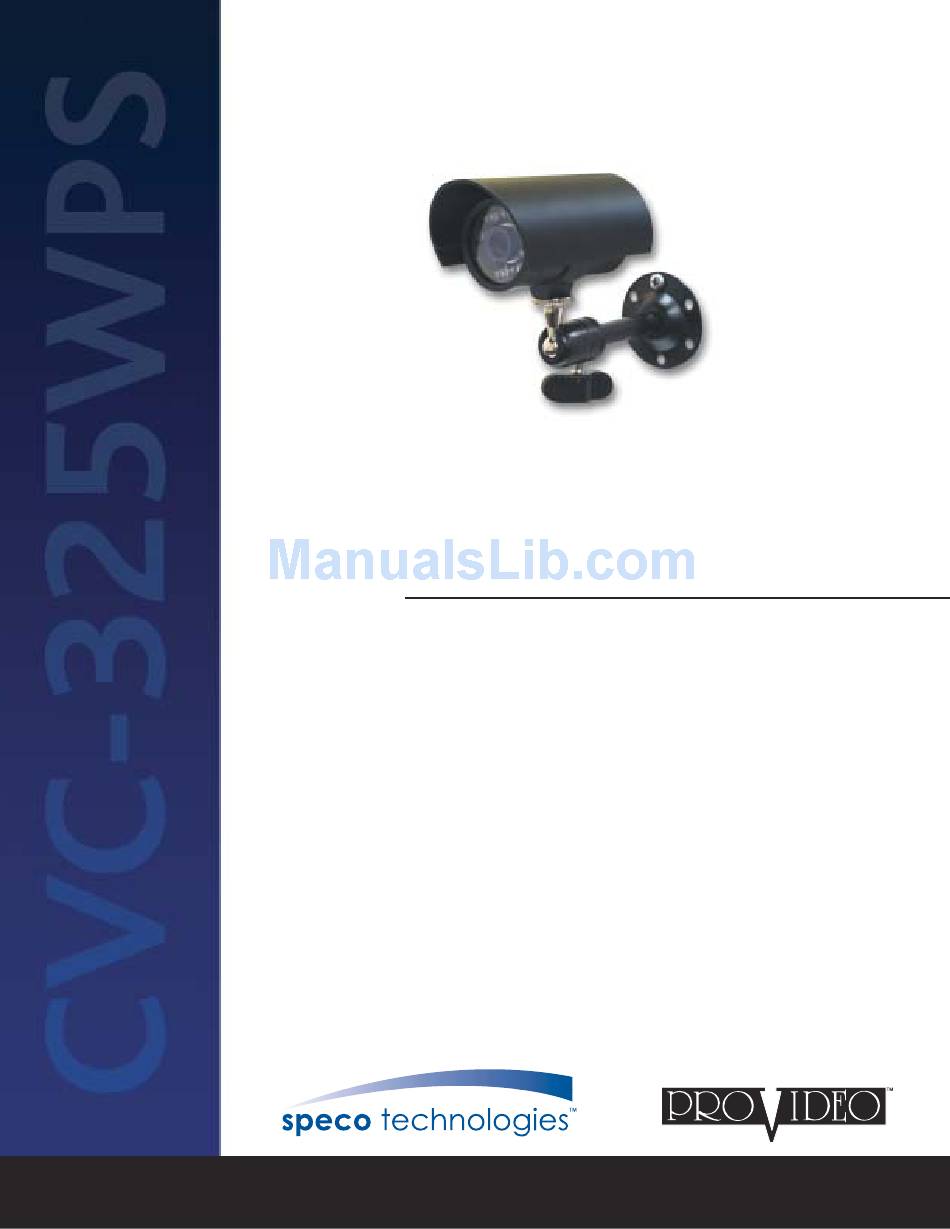

CVC-325WPS
B/W Waterproof Bullet Camera with Sunshield
and Infrared LED Lightning
Our 1/3" CCD bullet is designed to operate underwater. This series represents the best
camera for high moisture applications. The cameras can operate up to 90 feet of water,
and are well prepared to take on even the toughest weather conditions. They are fur-
nished with a protective removable sunshield to block sun glare. The six IR LEDs offer 0
lux rating for low light conditions. Included are a 12V DC power supply and 6 foot
cable. This model is encased in a black housing color, but it is also offered in silver
(CVC-325WPS/S) and white (CVC-WPS/W) housing colors.

Specifications

Resolution
Minimum Illumination
Image Sensor
Shutter Control
Lens
IR LEDS
Number of Pixels
Scanning Frequency
Scanning System
Video S/N Ratio
Operating Temperature
Humidity
Video Output Level
Outputs
Power Consumption
Power Supply
Hardware
Housing
Dimensions
Weight
For more information contact us at:
420 line horizontal
0 lux
1/3" B/W CCD image sensor
Electronic shutter auto 1/60 - 1/100,000 seconds
3.6mm
6 IR LEDs
512 horizontal x 492 vertical
15.75 kHz horizontal 60 Hz vertical
EIA standard 525 line 60 fields/second
greater than 46 dB
14 degrees F - 122 degrees F
within 95 % RH
1.0 Vp-p 75 ohm
Video-RCA with BNC adapter, power-DC jack
100mA
regulated 12V DC power supply included (UL and CSA listed)
6 foot cable included
black brass housing, 100 % waterproof,
removable sunshield included
2.95"L x 1.94"W x 1.87"H
9.9 oz
