Speco CVC-385TP Specification Sheet

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

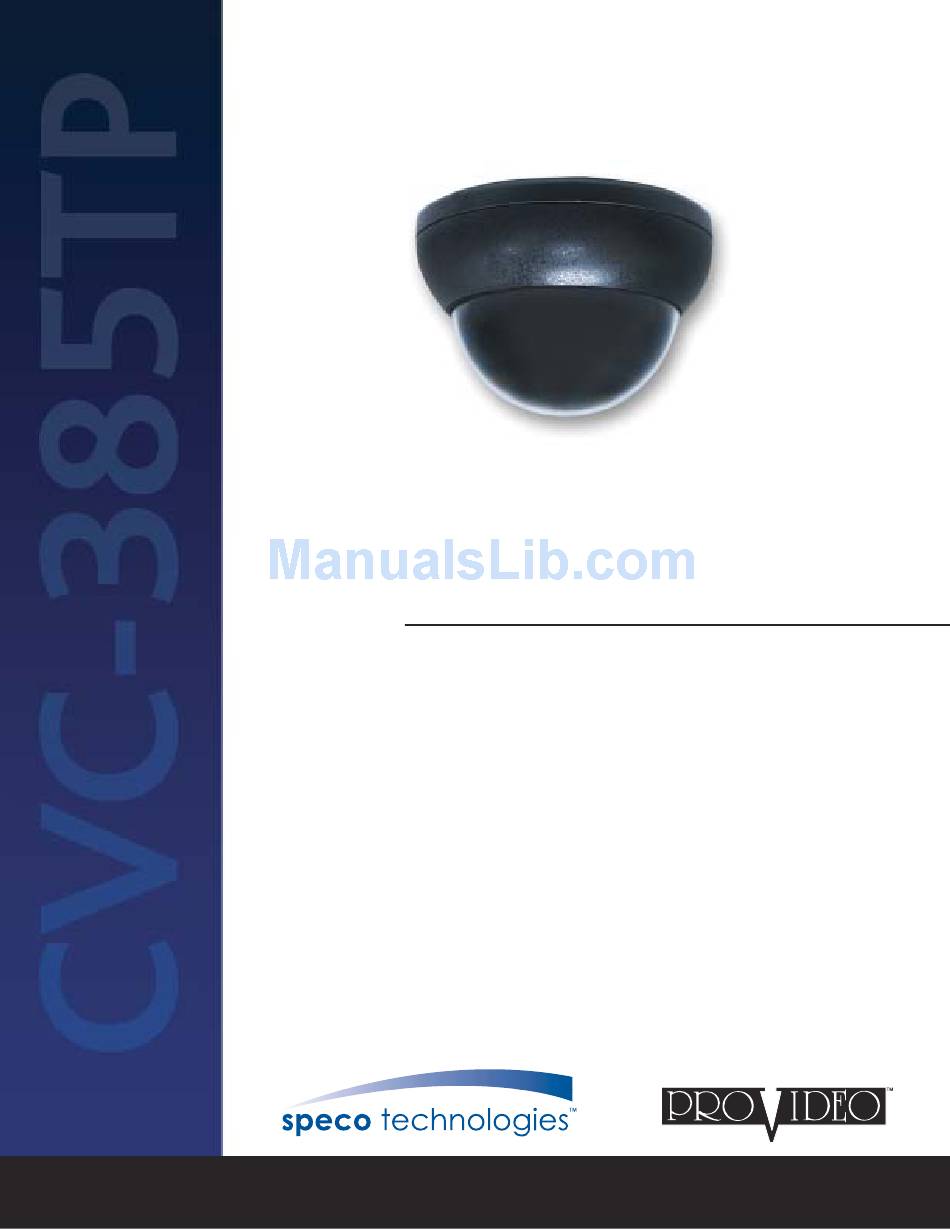

CVC-385TP
B/W Vandal Resistant Dome Camera
with Fixed Lens
Our 1/3" B/W CCD vandal resistant dome has a 3.6mm fixed lens, an ultra high
impact dome cover, and a heavy duty metal base. It is ideal for indoor, as well
as outdoor environments. It features 0.02 lux low light sensitivity with 420 lines
of resolution. A color version of this camera is available and can be found under
model number CC-745TSP. A varifocal lens version of this camera is also
available, and can be found under model numbers CC-7405P (Color) and
CC-3805TSP (B/W)

Specifications

Resolution
Image Device
Minimum Illumination
Electronic Shutter
Lens
Housing
Operating Temperature
Scanning Frequency
S/N Ratio
Video Output
Power Consumption
Power Supply
Dimensions
Weight
For more information contact us at:
Ultra high 420 line
1/3" B/W CCD image sensor
0.02 lux, f1.4
1/60 - 1/100,000 seconds
3.6mm
Ultra high impact dome cover, vandal resistant,
heavy duty metal base, black color
- 14˚ to 122˚F
Horizontal 15.75 KHz, Vertical 60Ho
Greater then 48 dBA
1.0 Vs-p 75 ohm
150 ma
Regulated 12V DC power supply
included (UL and CSA approved)
5"L x 5"W x 3.5"H
1.2 lbs.
