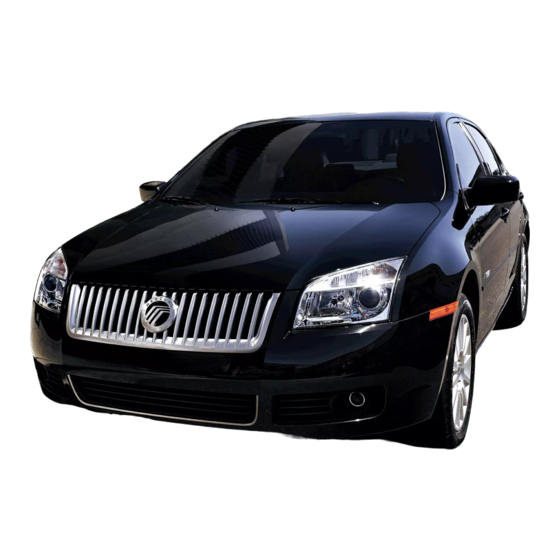

2009 Milan (mln)

Owners Guide

USA (fus)

Table of Contents

Need help?

Do you have a question about the Milan 2009 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mercury Milan 2009

Page 1: Table Of Contents
Table of Contents Introduction Instrument Cluster Warning lights and chimes Gauges Entertainment Systems How to get going AM/FM stereo with CD AM/FM stereo with in-dash six CD Auxiliary input jack (Line in) USB port Satellite radio information Navigation system SYNC Climate Controls Manual heating and air conditioning Automatic temperature control...
Page 2 Table of Contents Locks and Security Keys Locks Anti-theft system Seating and Safety Restraints Seating Safety restraints Airbags Child restraints Tires, Wheels and Loading Tire information Tire inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing Driving Starting Brakes AdvanceTrac...
Page 3 Table of Contents Customer Assistance Reporting safety defects (U.S. only) Reporting safety defects (Canada only) Cleaning Maintenance and Specifications Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories Index All rights reserved.
Page 4: Introduction
Introduction CONGRATULATIONS Congratulations on acquiring your new Mercury. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
Page 5 Introduction Warning symbols on your vehicle When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment.
Page 6 Introduction SPECIAL NOTICES New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.
Page 7 Introduction • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful...
Page 8 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Airbag - Front Child Seat Lower Airbag - Side Anchor Child Seat Tether Brake System Anchor Anti-Lock Brake System Parking Brake System Brake Fluid -...
Page 9 Introduction Vehicle Symbol Glossary Power Windows Power Window Lockout Front/Rear Child Safety Door Interior Luggage Lock/Unlock Compartment Release Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid...
Page 10: Instrument Cluster
Instrument Cluster WARNING LIGHTS AND CHIMES Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work.
Page 11 Instrument Cluster WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire. Check fuel cap: Illuminates when the fuel cap may not be properly installed.
Page 12 Instrument Cluster Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.
Page 13 Instrument Cluster Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged. Anti-theft system: Flashes when the SecuriLock™ Passive Anti-theft System has been activated. Throttle Control/Transmission: Illuminates when a powertrain or a AWD fault has been detected.
Page 14: Gauges
Instrument Cluster GAUGES Speedometer: Indicates the current vehicle speed. Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Page 15 Instrument Cluster Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.
Page 16: Entertainment Systems
Entertainment Systems AUDIO SYSTEMS Quick start — How to get going WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road.
Page 17 Entertainment Systems Listening to satellite radio (if equipped) 1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2.
Page 18 Entertainment Systems For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing. For an in-dash six CD system, if a disc is not already loaded, press LOAD.
Page 19 Entertainment Systems Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display.
Page 20: Am/Fm Stereo With Cd
Entertainment Systems AM/FM single CD/MP3 satellite compatible sound system (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road.
Page 21 Entertainment Systems In satellite radio mode (if equipped), press to tune to the next/previous channel. In CATEGORY MODE, press to scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to Category under Menu for further information. Satellite radio is available only with a valid SIRIUS subscription.
Page 22 Entertainment Systems • DELETE SONG: Press OK to delete a song from the system’s memory. Press to cycle through the saved songs. When the song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED.
Page 23 Entertainment Systems To activate, press MENU repeatedly until RBDS (ON/OFF) appears in the display. Use SEEK to toggle RBDS ON/OFF. When RBDS is OFF, you will not be able to search for RBDS equipped stations or view the station name or type. Press OK to close and return to the main menu.
Page 24 Entertainment Systems Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting. Track/Folder mode: Available only on MP3 discs in CD mode. In track mode, press SEEK to scroll through all tracks on the disc In folder mode, press SEEK, SEEK...
Page 25 Entertainment Systems In TEXT MODE, press SEEK to view the previous/additional display text. In CATEGORY MODE, press SEEK to select a category. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. (Play/Pause): Press to pause the CD that is playing.
Page 26 Entertainment Systems 12. Memory presets: To set a station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2.
Page 27 Entertainment Systems 15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16.
Page 28: Am/Fm Stereo With In-Dash Six Cd
Entertainment Systems Premium/Audiophile AM/FM in-dash six CD/MP3 satellite compatible sound system (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road.
Page 29 Entertainment Systems In satellite radio mode (if equipped), press to tune to the next/previous channel. In CATEGORY MODE, press to scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS radio subscription.
Page 30 Entertainment Systems • DELETE SONG: Press OK to delete a song from the system’s memory. Press to cycle through the saved songs. When the song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED.
Page 31 Entertainment Systems To activate, press MENU repeatedly until RBDS (ON/OFF) appears in the display. Use SEEK to toggle RBDS ON/OFF. When RBDS is OFF, you will not be able to search for RBDS equipped stations or view the station name or type. Press OK to close and return to the main menu.
Page 32 Entertainment Systems Track/Folder mode: Available only on MP3 discs in CD mode. In track mode, press SEEK to scroll through all tracks on the disc In folder mode, press SEEK to scroll through tracks within the selected folder. Press FOLDER to access the previous/next folder (if available).
Page 33 Entertainment Systems In TEXT MODE, press SEEK to view the previous/additional display text. In CATEGORY MODE, press SEEK to select a category. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability. (Play/Pause): Press to pause the CD that is playing.
Page 34 Entertainment Systems 12. Memory presets: To set a station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2.
Page 35 Entertainment Systems 15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 16.
Page 36: Auxiliary Input Jack (Line In)
Entertainment Systems Auxiliary input jack (Line in) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 37: Usb Port
Entertainment Systems 6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player, although it may be low. 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.
Page 38 Entertainment Systems Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC supplement or Navigation system supplement.
Page 39 Entertainment Systems • Wipe discs from the center out. Don’t: • Expose discs to direct sunlight or heat sources for extended periods of time. • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only.
Page 40 Entertainment Systems MP3 track and folder structure Your MP3 system recognizes MP3 individual tracks and folder structure as follows: • There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.
Page 41: Satellite Radio Information
Entertainment Systems Satellite radio information (if equipped) Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474.
Page 42 Entertainment Systems Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.
Page 43: Navigation System
Entertainment Systems Radio Display Condition Action Required NO TEXT Song title Song title information not information not available at this time on available. this channel. The system is working properly. NO TEXT Category Category information not information not available at this time on available.
Page 44: Climate Controls
Climate Controls MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Temperature selection: Controls the temperature of the airflow in the vehicle. 2. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control setting: MAX A/C: Distributes recirculated air through the instrument panel...
Page 45 Climate Controls Manual heating and air conditioning system operating tips • To reduce fog build up on the windshield during humid weather, place the air flow selector in the position. • To reduce humidity build up inside the vehicle: do not drive with the airflow selector in the O (OFF) position or with recirculated air engaged and A/C off.
Page 46: Automatic Temperature Control
Climate Controls AUTOMATIC TEMPERATURE CONTROL (ATC) SYSTEM (IF EQUIPPED) Temperature conversion: To switch between Fahrenheit and Celsius: If your vehicle is equipped with a full message center, refer to Setup menu in the Message center section of the Driver Controls chapter for more information.
Page 47 Climate Controls Recirculation control: Press to activate/deactivate air recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except (defrost).
Page 48 Climate Controls Automatic Temperature Control (ATC) system with heated seats (if equipped) Temperature conversion: To switch between Fahrenheit and Celsius: If your vehicle is equipped with a full message center, refer to Setup menu in the Message center section of the Driver Controls chapter. If your vehicle is equipped with a mini message center, see your authorized dealer for temperature conversion.
Page 49 Climate Controls : Distributes air through the windshield defroster ducts, demister outlets, and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging. : Distributes air through the floor and rear seat floor ducts. : Distributes air through the instrument panel and center console registers (if equipped) and the front and rear seat floor ducts.
Page 50 Climate Controls Automatic Temperature Control (ATC) system operating tips • To reduce fog build up on the windshield during humid weather, place the air flow selector in the position. • To reduce humidity build up inside the vehicle, do not drive with the system OFF, or with recirculated air engaged and A/C off.
Page 51: Rear Window Defroster
Climate Controls (panel) or (panel/floor) modes: • Adjust the temperature control to full cold. • Select A/C and (recirculated air). Use recirculated air with A/C to provide colder airflow. • Set highest fan speed initially, then adjust to maintain comfort. •...
Page 52: Lights
Lights HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps. Turns the low beam headlamps Autolamp control (if equipped) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
Page 53 Lights 3. Turn the ignition switch to on and then back to off. 4. Turn the headlamp switch to the autolamp position. The headlamps will turn on. 5. Wait the desired amount of time for the exit delay you want (up to three minutes), then turn the headlamp switch to off.
Page 54 Lights High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate. Flash to pass Pull toward you slightly to activate and release to deactivate. PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp...
Page 55 Lights Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full dome/on position to reset. This will ensure that your displays are visible under all lighting conditions.
Page 56: Turn Signal Control
Lights 5. Locate the vertical adjuster on each headlamp. Using a Phillips #2 screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line. 6.
Page 57: Bulb Replacement
Lights Your vehicle may also have reading lamps within the rear dome lamp(s). Press the switches on either side of the dome lamp to turn on the lamps. Ambient/Mood lighting (if equipped) Illuminates four footwells, two console cupholders and the console bin with a choice of seven colors.
Page 58 Lights Take your vehicle to dealer for service if any of the above conditions of unacceptable moisture are present. Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility.
Page 59 Lights Replacing exterior bulbs Check the operation of all the bulbs frequently. Replacing headlamp bulbs Highbeam bulb replacement 1. Make sure the headlamp switch is in the off position, then open the hood. 2. Reach over the front bolster. 3. Disengage top of flexible washer bottle filler neck from snap strap attachment and position it to gain access path to the high beam bulb...
Page 60 Lights 7. For ease of bulb socket installation into the lamp assembly, hold the bulb socket at 15 degrees clockwise from a vertical position. Use the two lead wires oriented up to represent the vertical reference position. 8. From the 15 degree position, rotate the bulb socket clockwise to a locked position.
Page 61 Lights 4. Remove screw from oval splash shield access panel from the exterior wheel well area. Lift up and rearward to release a hidden finger attachment at the lower portion of the panel (Passenger side only). 5. From the exterior wheel well area, reach arm through splash shield opening to access bulb socket (Passenger side only).
Page 62 Lights WARNING: Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated. 12.
Page 63 Lights 4. Remove the air tube from the air filter assembly (Driver side only). 5. Remove screw from oval splash shield access panel from the exterior wheel well area. Lift up and rearward to release a hidden finger attachment at the lower portion of the panel (Passenger side only).
Page 64 Lights 12. From the exterior wheel well area, reach arm through splash shield opening to install bulb socket with new bulb (Passenger side only). 13. Install new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to locked position. 14.
Page 65 Lights Replacing rear turn signal bulbs 1. Make sure the headlamp switch is in the off position and open the trunk. 2. Lift out trunk floor carpeting panel to access a luggage scuff plate (hard molding) shingles and a trunk side panel (dark grey, soft wheelhouse side trim panel) at the lamp area.
Page 66 Lights 3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 4. Pull the bulb from the socket and push in the new bulb. 5. Install the bulb socket into the lamp assembly by rotating it clockwise.
Page 67 Lights Replacing fog lamp bulbs (if equipped) 1. Make sure the fog lamp switch is in the off position. 2. From underneath the vehicle, partially remove the tire splash shield by removing four drive screws. After removing to allow free access to the front fog lamp bulb and electrical wire harness, the splash shield flap should be able to be repositioned.
Page 68: Driver Controls
Driver Controls MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers. Speed dependent wipers: When the wiper control is set on the intermittent settings, the speed of the wipers will automatically adjust with the vehicle speed.
Page 69: Steering Wheel Adjustment
Driver Controls TILT/TELESCOPE STEERING WHEEL To adjust the steering wheel: 1. Pull the lever down to unlock the steering column. 2. While the lever is in the down position, move the steering wheel up or down and in or out until you find the desired position.
Page 70 Driver Controls OVERHEAD CONSOLE The appearance of your vehicle’s overhead console will vary according to your option package. Storage compartment Press on the rear edge of the compartment door to open. The storage compartment may be used to secure sunglasses or a similar object.
Page 71 Driver Controls CLOCK Press the right (+) control to move the time display forwards. Press the left (-) control to move the time display backwards. INSTRUMENT PANEL STORAGE COMPARTMENT The storage compartment may be used to secure sunglasses or similar sized objects.
Page 72: Power Windows
Driver Controls To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.
Page 73 Driver Controls Press and pull the window switches to open and close windows. • Push down (to the first detent) and hold the switch to open. • Pull up (to the first detent) and hold the switch to close. Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise.
Page 74 Driver Controls INTERIOR MIRROR The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror UP or DOWN and from SIDE to SIDE. WARNING: Do not adjust the mirror while the vehicle is in motion.
Page 75: Mirrors
Driver Controls EXTERIOR MIRRORS Power side view mirrors WARNING: Do not adjust the mirror while the vehicle is in motion. To adjust your mirrors: 1. Rotate the control clockwise to adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.
Page 76 Driver Controls Setting speed control Note: The appearance of your vehicle’s speed control switches may vary according to your option package. The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release 2.
Page 77 Driver Controls Resuming a set speed Press the RESUME control and release it. This will automatically return the vehicle to the previously set speed. Increasing speed while using speed control There are two ways to set a higher speed: • Press and hold the SET + control until you get to the desired speed, then release the control.
Page 78 Driver Controls Turning off speed control There are two ways to turn off the speed control: • Press the OFF control. • Turn off the ignition. Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased. STEERING WHEEL CONTROLS (IF EQUIPPED) Radio control features Press MEDIA to select:...
Page 79 Driver Controls In any mode: • Press VOL + or VOL - to adjust the volume. Navigation system hands free control features (if equipped) Press and hold control briefly until the voice icon appears on the navigation display to use the voice command feature.
Page 80: Moon Roof
Driver Controls Navigation system/SYNC hands free control features (if equipped) Press control briefly until the voice icon appears on the Navigation display to use the voice command feature. Press to activate phone mode or answer a phone call. Press and hold to exit phone mode or end a call.
Page 81 Driver Controls Bounce-back: When an obstacle has been detected in the moon roof opening as the moon roof is closing, the moon roof will automatically open and stop at a prescribed position. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the moon roof will move until the bounce-back position is reached.
Page 82 Driver Controls HOMELINK WIRELESS CONTROL SYSTEM (IF EQUIPPED) The HomeLink Wireless Control System, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting.
Page 83 Driver Controls 1. Position the end of your hand-held transmitter 1–3 inches (2–8 cm) away from the HomeLink button you wish to program (located on your visor) while keeping the indicator light in view. 2. Simultaneously press and hold both the chosen HomeLink and hand-held transmitter buttons until the HomeLink indicator light changes from a slow to a rapidly blinking light.
Page 84 Driver Controls Gate Operator & Canadian Programming During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLink to accept the signal from the hand-held transmitter. After completing Step 1 outlined in the Programming section, replace Step 2 with the following: Note: If programming a garage door opener or gate operator, it is advised to unplug the device during the “cycling”...
Page 85: Message Center
Driver Controls Erasing HomeLink buttons To erase the three programmed buttons (individual buttons cannot be erased): • Press and hold the two outer HomeLink buttons until the indicator light begins to flash-after 20 seconds. Release both buttons. Do not hold for longer that 30 seconds.
Page 86 Driver Controls Selectable features Reset Press this control to select and reset functions shown in the INFO menu and SETUP menu. Info menu This control displays the following control displays: • Odometer • Trip Odometer A or B • Distance to Empty •...
Page 87 Driver Controls Average fuel economy (AFE) Select this function from the INFO menu to display your average fuel economy in miles/gallon or liters/100 km. If you calculate your average fuel economy by dividing 100 miles traveled by gallons of fuel used (kilometers traveled by liters used), your figure may be different than displayed for the following reasons: •...
Page 88 Driver Controls Compass display (if equipped) Select this function from the INFO menu. Press the INFO button repeatedly until the Compass and Odometer are displayed. (Do not select Trip, DTE, or AFE. The top of the message center must be blank). The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna.
Page 89 Driver Controls 4. Determine your magnetic zone by referring to the zone map. 7 8 9 1011 5. Press and hold the RESET until the message center display changes to show the current zone setting. 6. Release the RESET control, then slowly press RESET down again.
Page 90 Driver Controls Setup menu Press this control for the following displays: • System Check • Units (English/Metric) • Language • Easy entry/exit seat (if equipped) • Reverse sensing system (Park Aid) (if equipped) System check Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored.
Page 91 Driver Controls Units (English/Metric) 1. Select this function from the SETUP menu for the current units to be displayed. 2. Press the RESET control to change from English to Metric. Language 1. Select this function from the SETUP menu for the current language to be displayed.
Page 92 Driver Controls Reverse Sensing System (Park aid) (if equipped) This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. 1. Select this function from the SETUP menu to disable the reverse sensing system feature.
Page 93 Driver Controls Warnings Status Low fuel level Warning returns after 10 minutes Check brake system Check park aid (if equipped) Warning returns after the ignition key is turned from off to on Brake fluid level low Low tire pressure Tire pressure monitor fault Tire pressure sensor fault Trunk ajar Remove objects near pass seat...
Page 94 Driver Controls LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning.
Page 95: Locks And Security
Locks and Security KEYS Your vehicle is equipped with two Integrated Keyhead Transmitters (IKTs). The IKT functions as both a programmed ignition key that operates all the locks and starts the vehicle, and a remote keyless entry transmitter. Your IKTs are programmed to your vehicle; using a non-programmed key will not permit your vehicle to start.
Page 96 Locks and Security Recommended handling of the Integrated Keyhead Transmitter (IKT) To avoid inadvertently activating the remote entry functions of your vehicle, it is recommended that the Integrated Keyhead Transmitter (IKT) be handled properly when starting and turning off your vehicle. When inserting the IKT into the ignition cylinder, place your thumb on the center thumb rest of the IKT...
Page 97: Locks
Locks and Security POWER DOOR LOCKS • Press the control to unlock all doors. • Press the control to lock all doors. Smart locks This feature attempts to help prevent you from locking yourself out of the vehicle if your key is still in the ignition. When you open one of the front doors and you lock the vehicle with the power door lock control (on the driver or passenger door trim panel), all the doors will lock, then all doors will automatically unlock reminding...
Page 98 Locks and Security Note: This feature is configured off by default. This feature can be turned on or off using the following procedure: Before starting, ensure the ignition is in the off position and all vehicle doors are closed. You must complete Steps 1–5 within 30 seconds or the procedure will have to be repeated.
Page 99 Locks and Security Deactivating/activating autolock feature Your vehicle comes with the autolock features activated; there are three methods to enable/disable this feature: • Through your authorized dealer, • by using a power door unlock/lock sequence, or • by using the keyless entry pad (if equipped). Note: The autolock feature can be activated/deactivated independently of the autounlock feature.
Page 100 Locks and Security The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled. Autounlock feature The autounlock feature will unlock all the doors when: •...
Page 101 Locks and Security 5. Turn the ignition back to the on position. The horn will chirp one time to confirm programming mode has been entered and is active. 6. To enable/disable the autounlock feature, press the lock control, then press the unlock control. The horn will chirp once if autounlock was deactivated or twice (one short and one long chirp) if autounlock was activated.
Page 102 Locks and Security INTERIOR LUGGAGE COMPARTMENT RELEASE Your vehicle is equipped with a mechanical interior luggage compartment release handle that provides a means of escape for children and adults in the event they become locked inside the luggage compartment. Adults are advised to familiarize themselves with the operation and location of the release handle.
Page 103 Locks and Security WARNING: Do not leave children, unreliable adults, or animals unattended in the vehicle. On hot days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage.
Page 104 Locks and Security The IKT allows you to: • remotely unlock the vehicle doors. • remotely lock all the vehicle doors. • remotely open the trunk. • activate the personal alarm. • arm and disarm the perimeter anti-theft system. • operate the illuminated entry feature.
Page 105 Locks and Security Locking the doors 1. Press and release to lock all the doors. The turn lamps will flash. 2. Press and release again within three seconds to confirm that all the doors are closed. Note: The doors will lock again, the horn will chirp and the turn lamps will flash once if all the doors and trunk are closed.
Page 106 Locks and Security To replace the battery: 1. Twist a thin coin in the slot of the IKT near the key ring in order to remove the battery cover. 2. Do not wipe off any grease on the battery terminals on the back surface of the circuit board.
Page 107 Locks and Security Illuminated entry The interior lamps and puddle lamps (if equipped) illuminate when the Integrated Keyhead Transmitter is used to unlock the door(s). The illuminated entry system will turn off the interior lights if: • the ignition is turned to the on position, •...
Page 108 Locks and Security 1. Place the key in the ignition and turn the ignition to the 3 (on) position. 2. Press the power door unlock control on the door panel three times. 3. Turn the ignition from the 3 (on) position to the 1 (off) position.
Page 109 Locks and Security KEYLESS ENTRY SYSTEM (IF EQUIPPED) You can use the keyless entry keypad to: • lock or unlock the doors without using a key. • open the trunk. The keypad can be operated with the factory set 5–digit entry code; this code is located on the owner’s wallet card in the glove box and is available from your authorized dealer.
Page 110: Anti-Theft System
Locks and Security The anti-scan feature will turn off after: • one minute of keypad inactivity. • pressing the control on the remote entry transmitter portion of your Integrated Keyhead Transmitter. • the ignition is turned on. Unlocking and locking the doors using keyless entry To unlock the driver’s door, enter the factory set 5-digit code or your personal code.
Page 111 Locks and Security Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues. You need to prevent these objects from touching the coded IKT while starting the engine. These objects will not cause damage to the coded IKT, but may cause a momentary issue if they are too close to the IKT when starting the engine.
Page 112 Locks and Security Replacement Integrated Keyless Transmitters (IKT) and coded keys Note: Your vehicle comes equipped with two Integrated Keyhead Transmitters (IKTs). The IKT functions as both a programmed ignition key that operates all the locks and starts the vehicle, as well as a remote keyless entry transmitter.
Page 113 Locks and Security Please read and understand the entire procedure before you begin. 1. Insert the first previously programmed coded key into the ignition. 2. Turn the ignition from the 1 (off) position to the 3 (on) position. Keep the ignition in the 3 (on) position for at least three seconds, but no more than 10 seconds.
Page 114 Locks and Security PERIMETER ALARM SYSTEM The perimeter anti-theft system will help protect your vehicle from unauthorized entry. If there is any potential perimeter anti-theft problem with your vehicle, ensure ALL Integrated Keyhead Transmitters are brought to the authorized dealer to aid in troubleshooting. Arming the system When armed, this system will respond if unauthorized entry is attempted.
Page 115 Locks and Security Disarming the system You can disarm the system by any of the following actions: • Unlock the doors by using the remote entry transmitter portion of your Integrated Keyhead Transmitter. • Unlocking the doors using the keyless entry keypad (if equipped). •...
Page 116: Seating And Safety Restraints
Seating and Safety Restraints SEATING WARNING: Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a collision. WARNING: Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.
Page 117 Seating and Safety Restraints To adjust the head restraint, do the following: 1. Adjust the seatback to an upright driving/riding position. 2. Raise the head restraint by pulling up on the head restraint. 3. Lower the head restraint by pressing and holding the guide sleeve adjust/release button and pushing down on the head restraint.
Page 118 Seating and Safety Restraints To remove the adjustable head restraint, do the following: 1. Pull up the head restraint until it reaches the highest adjustment position. 2. Simultaneously press and hold both the adjust/release button and the unlock/remove button, then pull up on the head restraint.
Page 119 Seating and Safety Restraints WARNING: To minimize the risk of neck injury in the event of a crash, head restraints must be installed properly. Using the manual lumbar support (if equipped) The lumbar control is located on the side of the seat cushion. Turn to adjust lumbar support.
Page 120 Seating and Safety Restraints Pull lever up to adjust seatback. Folding down the front passenger seatback (if equipped) The front passenger seatback can be folded to a horizontal position to make room for a long load. To fold the seatback: 1.
Page 121 Seating and Safety Restraints Adjusting the front power seat (if equipped) WARNING: Never adjust the driver’s seat or seatback when the vehicle is moving. WARNING: Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop. WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
Page 122 Seating and Safety Restraints Move the switch in the direction of the arrows to raise or lower the front portion of the seat cushion. Move the switch in the direction of the arrows to raise or lower the rear portion of the seat cushion. Press the switch in the direction of the arrows to move the seat forward, backward, up or down.
Page 123 Seating and Safety Restraints Note: Do not do the following: • Place heavy objects on the seat • Operate the seat heater if water or any other liquid is spilled on the seat. Allow the seat to dry thoroughly. The heated seats will only function when the ignition is in the on position.
Page 124 Seating and Safety Restraints Fold the seatback(s) down. WARNING: Before returning the seatback to its original position, make sure that cargo or any objects are not trapped behind the seatback. After returning the seatback to its original position, pull on the seatback to ensure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or collision.
Page 125: Safety Restraints
Seating and Safety Restraints Seat-mounted cup holders and armrest storage compartment Your vehicle may be equipped with cup holders in the rear seat armrest. To access the cup holders, fold the armrest down. WARNING: Use only soft cups in the cup holder. Hard objects can injure you in a collision.
Page 126 Seating and Safety Restraints How does the Personal Safety System™ work? The Personal Safety System™ can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant conditions. A collection of crash and occupant sensors provides information to the Restraints Control Module (RCM).
Page 127 Seating and Safety Restraints Front passenger sensing system For airbags to do their job they must inflate with great force, and this force can pose a potentially deadly risk to occupants that are very close to the airbag when it begins to inflate. For some occupants, this occurs because they are initially sitting very close to the airbag.
Page 128 Seating and Safety Restraints Front safety belt pretensioners The safety belt pretensioners at the front outboard seating positions are designed to tighten the safety belts firmly against the occupant’s body during frontal collisions and in side collisions when the side curtains and side airbags are activated.
Page 129 Seating and Safety Restraints Safety belt precautions WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips. WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained. WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving.
Page 130 Seating and Safety Restraints WARNING: Front and rear seat occupants, including pregnant women, should wear safety belts for optimum protection in an accident. Combination lap and shoulder belts 1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch.
Page 131 Seating and Safety Restraints WARNING: Failure to inspect and replace if necessary the belt and retractor assembly after an accident could increase the risk of injury in a collision. All safety restraints in the vehicle are combination lap and shoulder belts.
Page 132 Seating and Safety Restraints When to use the automatic locking mode In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt. This mode should be used any time a child safety seat, except a booster, is installed in passenger front or rear seating positions.
Page 133 Seating and Safety Restraints Safety belt height adjustment Your vehicle has safety belt height adjustments at the front outboard seating positions. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder. To adjust the shoulder belt height, pull on the center button and slide the height adjuster up or down.
Page 134 Seating and Safety Restraints Conditions of operation If... Then... The driver’s safety belt is not The safety belt warning light buckled before the ignition illuminates 1-2 minutes and the switch is turned to the on warning chime sounds 4-8 seconds. position...
Page 135 Seating and Safety Restraints The Belt-Minder feature uses two different warning chimes. During the first minute of activation, the warning chime will sound once every second. The remaining warning chimes will sound twice every second while the system is activated. If...
Page 136 Seating and Safety Restraints The following are reasons most often given for not wearing safety belts (All statistics based on U.S. data): Reasons given... Consider... “Crashes are rare events” 36700 crashes occur every day. The more we drive, the more we are exposed to “rare”...
Page 137 Seating and Safety Restraints Reasons given... Consider... “I have an airbag” Airbags offer greater protection when used with safety belts. Frontal airbags are not designed to inflate in rear and side crashes or rollovers. “I’d rather be thrown clear” Not a good idea. People who are ejected are 40 times more likely to DIE.
Page 138 Seating and Safety Restraints The driver and front passenger Belt-Minder features can be deactivated/activated by performing the following procedure: Before following the procedure, make sure that: • The parking brake is set • The gearshift is in N (Neutral) (manual transmission) •...
Page 139: Airbags
Seating and Safety Restraints AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) Important supplemental restraint system precautions Airbags DO NOT inflate slowly or gently and the risk of injury from a deploying airbag is greatest close to the trim covering the airbag module. WARNING: All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag supplemental restraint system (SRS) is provided.
Page 140 Seating and Safety Restraints WARNING: National Highway Traffic Safety Administration (NHTSA) recommends a minimum distance of at least 10 inches (25 cm) between an occupant’s chest and the driver airbag module. WARNING: Never place your arm over the airbag module as a deploying airbag can result in serious arm fractures or other injuries.
Page 141 Seating and Safety Restraints Children and airbags Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a collision.
Page 142 Seating and Safety Restraints The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the...
Page 143 Seating and Safety Restraints • a readiness light and tone • and the electrical wiring which connects the components • Side curtain airbag system. Refer to Side curtain airbag system later in this chapter. • Front passenger sensing system. Refer to Front passenger sensing system later in this chapter.
Page 144 Seating and Safety Restraints The front passenger sensing system will turn off the passenger seat side airbag if: • the seat is empty and safety belt is unbuckled. • a child or a small person occupies the front passenger seat and the child or small person is unbuckled.
Page 145 Seating and Safety Restraints If a person of adult size is sitting in the front passenger’s seat, but the passenger airbag off or pass airbag off indicator lamp is lit, it is possible that the person isn’t sitting properly in the seat. If this happens: •...
Page 146 Seating and Safety Restraints The front passenger sensing system may detect small or medium objects placed on the seat cushion. For most objects that are in the front passenger seat, the passenger airbag will be disabled. Even though the passenger airbag is disabled, the pass airbag off lamp may or may not be illuminated according to the table below.
Page 147 Seating and Safety Restraints WARNING: To reduce the risk of possible serious injury: Do not stow objects in seat back map pocket (if equipped) or hang objects off seat back if a child is in the front passenger seat. Do not place objects underneath the front passenger seat or between the seat and the center console (if equipped).
Page 148 Seating and Safety Restraints WARNING: Any alteration/modification to the front passenger seat may affect the performance of the front passenger sensing system. Determining if the system is operational The supplemental restraint system uses a warning indicator light in the instrument cluster or a back-up tone to indicate the condition of the system.
Page 149 Seating and Safety Restraints WARNING: Do not attempt to service, repair, or modify the airbag SRS, its fuses or the seat cover on a seat containing an airbag. See your authorized dealer. WARNING: All occupants of the vehicle should always wear their safety belts even when an airbag SRS is provided.
Page 150 Seating and Safety Restraints The fact that the airbags did not inflate in a collision does not mean that something is wrong with the system. Rather, it means the forces were not of the type sufficient to cause activation. Side airbags are designed to inflate in side-impact collisions, not roll-over, rear-impact, frontal or near-frontal collisions, unless the collision causes sufficient lateral deceleration.
Page 151 Seating and Safety Restraints Side curtain airbag system WARNING: Do not place objects or mount equipment on or near the headliner at the siderail that may come into contact with a deploying side air curtain. Failure to follow these instructions may increase the risk of personal injury in the event of a collision.
Page 152 Seating and Safety Restraints How does the side air curtain system work? The design and development of the side air curtain system included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group.
Page 153 Seating and Safety Restraints passenger seat or an unbuckled child or small person in the passenger seat. The air curtain was designed to inflate between the side window area and occupant to further enhance the head protection provided to occupants in side impact collisions. The seat-mounted side airbag was designed to inflate between the door panel and occupant to further enhance the protection provided occupants in side impact collisions.
Page 154: Child Restraints
Seating and Safety Restraints Any difficulty with the system is indicated by one or more of the following: • The readiness light (same light as used for front airbag system) will either flash or stay lit. • The readiness light will not illuminate immediately after ignition is turned to the on position.
Page 155 Seating and Safety Restraints Recommendations for Safety Restraints for Children Recommended Child size, height, weight, or age restraint type Infants Children weighing 40 lb (18 kg) or Use a child safety seat less (generally age four or younger) (sometimes called an toddlers infant carrier, convertible seat, or...
Page 156 Seating and Safety Restraints Recommendations for attaching child safety restraints for children Use any attachment method as indicated below by “X” LATCH LATCH Safety Safety belt Safety (lower (lower belt and LATCH belt Restraint Child anchors anchors (lower only Type Weight only) anchors...
Page 157 Seating and Safety Restraints WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision, which may result in serious injury or death.
Page 158 Seating and Safety Restraints restrained properly, then restrain the child in the child safety seat or with the belt-positioning booster. Remember that child seats and belt-positioning boosters vary and may be designed to fit children of different heights, ages and weights. Children who are too large for child safety seats or belt-positioning boosters (as specified by your child safety seat manufacturer) should always properly wear safety belts.
Page 159 Seating and Safety Restraints When installing a child safety seat with combination lap/shoulder belts: • Use the correct safety belt buckle for that seating position. • Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.
Page 160 Seating and Safety Restraints 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until...
Page 161 Seating and Safety Restraints 8. Remove remaining slack from the belt. Force the seat down with extra weight, e.g., by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the additional weight of the child is...
Page 162 Seating and Safety Restraints forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat. Ford Motor Company recommends the use of a child safety seat having a top tether strap.
Page 163 Seating and Safety Restraints Use of inboard lower anchors from the outboard seating positions (center seating use) The lower anchors at the center of the second row rear seat are spaced 460 mm (18 inches) apart. The standardized spacing for LATCH lower anchors is 280 mm (11 inches) center to center.
Page 164 Seating and Safety Restraints Attaching child safety seats with tether straps Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats.
Page 165 Seating and Safety Restraints 3. Open the tether anchor cover. 4. Clip the tether strap to the anchor as shown. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision. 5.
Page 166 Seating and Safety Restraints Booster seats position a child so that vehicle lap/shoulder safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably at the edge of the cushion, while minimizing slouching.
Page 167 Seating and Safety Restraints Types of booster seats There are generally two types of belt-positioning booster seats: backless and high back. Always use booster seats in conjunction with the vehicle lap/shoulder belt. • Backless booster seats If your backless booster seat has a removable shield, remove the shield.
Page 168 Seating and Safety Restraints Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder.
Page 169 Seating and Safety Restraints Move a child to a different seating location if the shoulder belt does not stay positioned on the shoulder during use. Follow all instructions provided by the manufacturer of the booster seat. WARNING: Never place, or allow a child to place, the shoulder belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a collision.
Page 170: Tires, Wheels And Loading
Tires, Wheels and Loading INFORMATION ABOUT UNIFORM TIRE QUALITY GRADING Tire Quality Grades apply to new pneumatic passenger car tires. The Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: •...
Page 171 Tires, Wheels and Loading WARNING: The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning or peak traction characteristics. Temperature A B C The temperature grades are A (the highest), B and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 172: Tire Inflation
Tires, Wheels and Loading Increasing the inflation pressure beyond this pressure will not increase the tire’s load carrying capability. • kPa: Kilopascal, a metric unit of air pressure. • PSI: Pounds per square inch, a standard unit of air pressure. •...
Page 173 Tires, Wheels and Loading WARNING: Under-inflation is the most common cause of tire failures and may result in severe tire cracking, tread separation or blowout , with unexpected loss of vehicle control and increased risk of injury. Under-inflation increases sidewall flexing and rolling resistance, resulting in heat buildup and internal damage to the tire.
Page 174 Tires, Wheels and Loading Note: If you have to drive a distance to get air for your tire(s), check and record the tire pressure first and add the appropriate air pressure when you get to the pump. It is normal for tires to heat up and the air pressure inside to go up as you drive.
Page 175 Tires, Wheels and Loading Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Inspect all your tires, including the spare, frequently, and replace them if one or more of the following conditions exist: Tire wear When the tread is worn down to 1/16th of an inch (2 mm), tires must be replaced to help prevent your vehicle from skidding and...
Page 176 Tires, Wheels and Loading U.S. DOT Tire Identification Number (TIN) Both U.S. and Canada Federal regulations require tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a U.S. DOT Tire Identification Number for safety standard certification and in case of a recall.
Page 177 Tires, Wheels and Loading WARNING: When mounting replacement tires and wheels, you should not exceed the maximum pressure indicated on the sidewall of the tire to set the beads without additional precautions listed below. If the beads do not seat at the maximum pressure indicated, re-lubricate and try again.
Page 178 Tires, Wheels and Loading • Do not run over curbs or hit the tire against a curb when parking WARNING: If your vehicle is stuck in snow, mud, sand, etc., do not rapidly spin the tires; spinning the tires can tear the tire and cause an explosion.
Page 179 Tires, Wheels and Loading • Front Wheel Drive (FWD)/All Wheel Drive (AWD) vehicles (front tires at top of diagram) Sometimes irregular tire wear can be corrected by rotating the tires. Note: If your tires show uneven wear ask an authorized dealer to check for and correct any wheel misalignment, tire imbalance or mechanical problem involved before tire rotation.
Page 180 Tires, Wheels and Loading Information on “P” type tires P215/65R15 95H is an example of a tire size, load index and speed rating. The definitions of these items are listed below. (Note that the tire size, load index and speed rating for your vehicle may be different from this example.) 1.
Page 181 Tires, Wheels and Loading Note: You may not find this information on all tires because it is not required by federal law. Letter rating Speed rating - mph (km/h) 81 mph (130 km/h) 87 mph (140 km/h) 99 mph (159 km/h) 106 mph (171 km/h) 112 mph (180 km/h) 118 mph (190 km/h)
Page 182 Tires, Wheels and Loading 12. Treadwear, Traction and Temperature Grades • Treadwear: The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 ⁄...
Page 183 Tires, Wheels and Loading Additional information contained on the tire sidewall for “LT” type tires “LT” type tires have some additional information beyond those of “P” type tires; these differences are described below. Note: Tire Quality Grades do not apply to this type of tire. 1.
Page 184 Tires, Wheels and Loading Information on “T” type tires “T” type tires have some additional information beyond those of “P” type tires; these differences are described below: T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
Page 185: Tire Pressure Monitoring System (Tpms)
Tires, Wheels and Loading TIRE PRESSURE MONITORING SYSTEM (TPMS) Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)
Page 186 Tires, Wheels and Loading The Tire Pressure Monitoring System complies with part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 187 Tires, Wheels and Loading Understanding your Tire Pressure Monitoring System (TPMS) The Tire Pressure Monitoring System measures pressure in your four road tires and sends the tire pressure readings to your vehicle. The Low Tire Pressure Warning Lamp will turn ON if the tire pressure is significantly low.
Page 188 Tires, Wheels and Loading When you believe your system is not operating properly The main function of the Tire Pressure Monitoring System is to warn you when your tires need air. It can also warn you in the event the system is no longer capable of functioning as intended.
Page 189 Tires, Wheels and Loading Low Tire Pressure Possible cause Customer Action Required Warning Light Flashing Warning Spare tire in Your temporary spare tire is in Light use. Repair the damaged road wheel and re-mount it on the vehicle to restore system functionality.
Page 190 Tires, Wheels and Loading SNOW TIRES AND CHAINS WARNING: Snow tires must be the same size, load index, speed rating as those originally provided by Ford. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 191: Vehicle Loading
Tires, Wheels and Loading VEHICLE LOADING This section will guide you in the proper loading of your vehicle to keep your loaded vehicle weight within its design rating capability. Properly loading your vehicle will provide maximum return of vehicle design performance.
Page 192 Tires, Wheels and Loading Example only: Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) – including vehicle curb weight and all payload. 2009 Milan (mln) Owners Guide USA (fus)
Page 193 Tires, Wheels and Loading GAWR (Gross Axle Weight Rating) – is the maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door. The total load on each axle must never exceed its GAWR.
Page 194 Tires, Wheels and Loading WARNING: Do not use replacement tires with lower load carrying capacities than the original tires because they may lower the vehicle’s GVWR and GAWR limitations. Replacement tires with a higher limit than the original tires do not increase the GVWR and GAWR limitations.
Page 195: Trailer Towing
Tires, Wheels and Loading • A final example for your vehicle with 1400 lb. (635 kg) of cargo and luggage capacity. You and one of your friends decide to pick up cement from the local home improvement store to finish that patio you have been planning for the past 2 years.
Page 196 Tires, Wheels and Loading Front Wheel Drive (FWD) vehicles with manual transmissions: If your vehicle is equipped with a manual transmission, shifting the transmission into neutral (N) permits “flat-towing” (all wheels on the ground) for pulling behind a motorhome. Before you tow your vehicle: •...
Page 197: Driving
Driving STARTING Positions of the ignition 1. Off— locks the gearshift lever and allows key removal. This position also shuts the engine and all electrical accessories off. 2. Accessory— allows the electrical accessories such as the radio to operate while the engine is not running.
Page 198 Driving WARNING: Do not start your vehicle in a closed garage or in other enclosed areas. Exhaust fumes can be toxic. Always open the garage door before you start the engine. See Guarding against exhaust fumes in this chapter for more instructions. WARNING: If you smell exhaust fumes inside your vehicle, have your dealer inspect your vehicle immediately.
Page 199 Driving • Make sure the gearshift is in P (Park). If starting a vehicle with a manual transmission: • Make sure the parking brake is set. • Push the clutch pedal to the floor. 3. Turn the key to 3 (on) without turning the key to 4 (start).
Page 200 Driving Starting the engine 1. Turn the key to 3 (on) without turning the key to 4 (start). 2. Turn the key to 4 (start), then release the key as soon as the engine begins cranking. Your vehicle has a computer assisted cranking system that assists in starting the engine.
Page 201 Driving WARNING: Failure to follow engine block heater instructions could result in property damage or physical injury. WARNING: To reduce the risk of electrical shock, do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters. Prior to using the engine block heater, follow these recommendations for proper and safe operation: •...
Page 202: Brakes
Driving • Finally, have the engine block heater system checked during your fall tune-up to be sure it’s in good working order. How to use the engine block heater Ensure the receptacle terminals are clean and dry prior to use. To clean them, use a dry cloth.
Page 203 Driving ABS warning lamp The ABS lamp in the instrument cluster momentarily illuminates when the ignition is turned on. If the light does not illuminate during start up, remains on or flashes, the ABS may be disabled and may need to be serviced. Even when the ABS is disabled and the ABS light is on, normal braking is still effective.
Page 204: Advancetrac
Driving WARNING: Always set the parking brake fully and make sure that the gearshift is securely latched in P (Park) (automatic transmission) or in 1 (First) (manual transmission). WARNING: If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly.
Page 205 Driving WARNING: If a failure has been detected within the AdvanceTrac system, the sliding car icon will illuminate steadily. Verify that the AdvanceTrac system is not manually disabled (push the AdvanceTrac “Off “ button located on the center of the instrument panel).
Page 206 Driving When an event occurs that activates AdvanceTrac you may experience the following: • A slight deceleration of the vehicle • The “sliding car” indicator light will flash. • A vibration in the pedal when your foot is on the brake pedal •...
Page 207 Driving Electronic Stability Control (ESC) Electronic Stability Control (ESC) may enhance your vehicle’s directional stability during adverse maneuvers, for example when cornering severely or avoiding objects in the roadway. ESC operates by applying brakes to one or more of the wheels individually and, if necessary, reducing engine power if the system detects that the vehicle is about to skid or slide laterally.
Page 208: Traction Control
Driving AdvanceTrac Features “Sliding car” Traction Button functions icon Control Illuminated Default at start-up during bulb Enabled Enabled check Button pressed Illuminated solid Enabled Disabled momentarily Button pressed again after Not illuminated Enabled Enabled deactivation TRACTION CONTROL™ (IF EQUIPPED) The Traction Control™ system helps you maintain the stability and steerability of your vehicle, especially on slippery road surfaces such as snow- or ice-covered roads and gravel roads.
Page 209 Driving The Traction Control™ switch is located on the instrument panel. The Traction Control™ system will automatically turn on every time the ignition is turned off and on. The Traction Control™ system should normally be left on. If you should become stuck in snow or ice or on a very slippery road surface, try switching the Traction Control™...
Page 210: Transmission Operation
Driving If the steering wanders or pulls, check for: • an improperly inflated tire • uneven tire wear • loose or worn suspension components • loose or worn steering components • improper steering alignment A high crown in the road or high crosswinds may also make the steering seem to wander/pull.
Page 211 Driving If you cannot move the gearshift lever out of P (Park) with ignition in the on position and the brake pedal depressed: 1. Apply the parking brake, turn ignition key to off, then remove the key. 2. Using a screwdriver (or similar tool), remove the protective cover to the interlock release access hole on the console.
Page 212 Driving Understanding the gearshift positions of the 5–speed automatic transmission (if equipped) P (Park) This position locks the transmission and prevents the front wheels from turning. To put your vehicle in gear: • Depress the brake pedal • Move the gearshift lever into the desired gear To put your vehicle in P (Park): •...
Page 213 Driving N (Neutral) With the gearshift lever in N (Neutral), the vehicle can be started and is free to roll. Hold the brake pedal down while in this position. D (Drive) The normal driving position for the best fuel economy. Transmission operates in gears one through five.
Page 214 Driving To put your vehicle in gear: • Depress the brake pedal • Move the gearshift lever into the desired gear To put your vehicle in P (Park): • Come to a complete stop • Move the gearshift lever and securely latch it in P (Park) WARNING: Always set the parking brake fully and make sure the gearshift is latched in P (Park).
Page 215 Driving MANUAL TRANSMISSION OPERATION (IF EQUIPPED) Using the clutch Manual transmission vehicles have a starter interlock that prevents cranking the engine unless the clutch pedal is fully depressed. To start the vehicle: 1. Make sure the parking brake is fully set. 2.
Page 216 Driving Recommended shift speeds Do not downshift into 1 (First) when your vehicle is moving faster than 15 mph (24 km/h). This will damage the clutch. Upshift according to the following chart: Recommended upshifts (for best fuel economy) when accelerating 5-speed manual transmission Shift from: 1 - 2...
Page 217: Reverse Sensing System
Driving REVERSE SENSING SYSTEM (IF EQUIPPED) The Reverse Sensing System (RSS) sounds a tone to warn the driver of obstacles near the rear bumper when the R (Reverse) is selected and the vehicle is moving at speeds less than 3 mph (5 km/h). The system is not effective at speeds above 3 mph (5 km/h) and may not detect certain angular or moving objects.
Page 218 Driving The RSS detects obstacles up to six feet (two meters) from the rear bumper with a decreased coverage area at the outer corners of the bumper, (refer to the figures for approximate zone coverage areas). As you move closer to the obstacle, the rate of the tone increases.
Page 219 Driving ALL WHEEL DRIVE (AWD) SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a full-time All Wheel Drive (AWD) system. The AWD system is an active system, meaning it not only responds to wheel slip between the front and rear axles but also has the ability to anticipate wheel slip and transfer torque to the rear wheels before slip occurs.
Page 220 Driving If your vehicle goes off the edge of the pavement • If your vehicle goes off the edge of the pavement, slow down, but avoid severe brake application, ease the vehicle back onto the pavement only after reducing your speed. Do not turn the steering wheel too sharply while returning to the road surface.
Page 221 Driving Emergency maneuvers • In an unavoidable emergency situation where a sudden sharp turn must be made, remember to avoid “over-driving” your vehicle (i.e., turn the steering wheel only as rapidly and as far as required to avoid the emergency). Excessive steering will result in less vehicle control, not more.
Page 222 Driving When driving through water, determine the depth; avoid water higher than the bottom of the wheel rims (for cars) or the bottom of the hubs (for trucks) (if possible) and proceed slowly. If the ignition system gets wet, the vehicle may stall. Once through water, always try the brakes.
Page 223 Driving When climbing a steep slope or hill, start in a lower gear rather than downshifting to a lower gear from a higher gear once the ascent has started. This reduces strain on the engine and the possibility of stalling. If you do stall out, do not try to turnaround because you might roll over.
Page 224 Driving your vehicle is equipped with a four wheel anti-lock brake system (ABS), do not “pump” the brakes. Refer to the Brakes section of this chapter for additional information on the operation of the anti-lock brake system. Maintenance and Modifications The suspension and steering systems on your vehicle have been designed and tested to provide predictable performance whether loaded or empty and durable load carrying capability.
Page 225: Roadside Emergencies
• winch out – available within 100 feet (30.5 meters) of a paved or county maintained road, no recoveries. • towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized dealer within 35 miles (56.3 km) of the disablement location or to the nearest authorized dealer.
Page 226: Hazard Flasher Switch
Owner Guide portfolio in the glove compartment. In Canada, the card is found in the Customer Information Guide in the glove compartment. U.S. Ford, Mercury and Lincoln vehicle customers who require Roadside Assistance, call 1-800-241-3673. Canadian customers who require roadside assistance, call 1-800-665-2006.
Page 227: Fuel Pump Shut-Off Switch
Roadside Emergencies FUEL PUMP SHUT-OFF SWITCH This device stops the electric fuel pump from sending fuel to the engine when your vehicle has had a substantial jolt. After an accident, if the engine cranks but does not start, this switch may have been activated.
Page 228 Roadside Emergencies Standard fuse amperage rating and color COLOR Cartridge Fuse Mini Standard Maxi Fuse link maxi rating fuses fuses fuses cartridge fuses Grey Grey — — — Violet Violet — — — Pink Pink — — — — — —...
Page 229 Roadside Emergencies The fuses are coded as follows. Fuse/Relay Fuse Amp Protected Circuits Location Rating Backup lamps (automatic transmission), Electrochromatic mirror Horns Battery saver: Interior lamps, Puddle lamps, Trunk lamp, Power windows Parklamps, Side markers, License plate lamps — Not used —...
Page 230 Roadside Emergencies Fuse/Relay Fuse Amp Protected Circuits Location Rating 7.5A Delay accessories: Radio head units, Moon roof, Lock switch illumination, Electrochromatic mirrors, Ambient lighting 7.5A Cluster, Analog clock, Climate control head units Washer pump Cigar lighter Door lock actuator, Decklid lock solenoid Subwoofer Radio head units, OBDII connector...
Page 231 Roadside Emergencies Power distribution box The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads. WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the Power Distribution Box before reconnecting the battery or refilling fluid reservoirs.
Page 232 Roadside Emergencies Fuse/Relay Fuse Amp Protected Circuits Location Rating 40A** Powertrain power, PCM relay coil 40A** Blower motor — Not used 40A** Rear window defroster, Heated mirrors 40A** PETA Pump (PZEV) power feed 40A** ABS pump 20A** Wipers 30A** ABS Valves 20A** Heated seats —...
Page 233 Roadside Emergencies Fuse/Relay Fuse Amp Protected Circuits Location Rating — Not used 30A** Driver power seat 20A** Moon roof — Not used — Not used PCM diode One Touch Integrated Start (OTIS) diode — Not used — Not used — Not used Relay Fog lamp relay...
Page 234: Changing Tires
Roadside Emergencies CHANGING THE TIRES If you get a flat tire while driving, do not apply the brake heavily. Instead, gradually decrease your speed. Hold the steering wheel firmly and slowly move to a safe place on the side of the road. Note: The tire pressure monitoring system (TPMS) indicator light will illuminate when the spare tire is in use.
Page 235 Roadside Emergencies 2. Full-size dissimilar spare with label on wheel: This spare tire has a label on the wheel that states: “THIS TIRE AND WHEEL FOR TEMPORARY USE ONLY” When driving with one of the dissimilar spare tires listed above, do not: •...
Page 236 Roadside Emergencies • Wet weather driving capability • All-Wheel driving capability (if applicable) • Load leveling adjustment (if applicable) When driving with the full-size dissimilar spare tire/wheel additional caution should be given to: • Towing a trailer • Driving vehicles equipped with a camper body •...
Page 237 Roadside Emergencies Tire change procedure WARNING: To help prevent the vehicle from moving when you change a tire, be sure the parking brake is set, then block (in both directions) the wheel that is diagonally opposite (other side and end of the vehicle) to the tire being changed. WARNING: If the vehicle slips off the jack, you or someone else could be seriously injured.
Page 238 Roadside Emergencies 3. Put the jack in the jack locator next to the tire you are changing. Turn the jack handle clockwise until the wheel is completely off the ground. Note: To avoid structural damage to the vehicle, ensure that the jack is centered between the two markings (1) on the bottom of the rocker flange.
Page 239: Wheel Lug Nut Torque
Roadside Emergencies 7. Remove the jack and fully tighten the lug nuts in the order shown. Refer to Wheel lug nut torque specifications later in this chapter for the proper lug nut torque specification. 8. Unblock the wheels. Stowing the wheel and jack 1.
Page 240: Jump Starting
Roadside Emergencies WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Ensure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel.
Page 241 Roadside Emergencies Preparing your vehicle When the battery is disconnected or a new battery is installed, the automatic transmission must relearn its shift strategy. As a result, the transmission may have firm and/or soft shifts. This operation is considered normal and will not affect function or durability of the transmission.
Page 242 Roadside Emergencies 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 2009 Milan (mln) Owners Guide USA (fus)
Page 243 Roadside Emergencies 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system. Do not use fuel lines, engine rocker covers or the intake manifold as grounding points. WARNING: Do not connect the end of the second cable to the negative (-) terminal of the battery to be jumped.
Page 244 Roadside Emergencies Removing the jumper cables Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the ground metal surface. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2.
Page 245 Roadside Emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 246: Wrecker Towing
Roadside Emergencies WRECKER TOWING If you need to have your vehicle towed, contact a professional towing service or, if you are a member of a roadside assistance program, your roadside assistance service provider. It is recommended that your vehicle be towed with a wheel lift or flatbed equipment.
Page 247 Roadside Emergencies Emergency towing In case of a roadside emergency with a disabled vehicle (without access to wheel dollies, car hauling trailer, or flatbed transport vehicle) your vehicle (regardless of transmission powertrain configuration) can be flat towed (all wheels on the ground) under the following conditions: •...
Page 248: Customer Assistance
GETTING THE SERVICES YOU NEED Warranty repairs to your vehicle must be performed by an authorized Ford, Lincoln, or Mercury dealer. While any authorized dealer handling your vehicle line will provide warranty service, we recommend you return to your selling authorized dealer who wants to ensure your continued satisfaction.
Page 249 Customer Assistance In Canada: Mailing Address (Ford vehicles) Customer Relationship Centre Ford Motor Company of Canada, Limited P.O. Box 2000 Oakville, Ontario L6J 5E4 Telephone 1-800-565-3673 (FORD) Online www.ford.ca Mailing Address (Lincoln vehicles) Lincoln Centre Ford Motor Company of Canada, Limited P.O.
Page 250 Customer Assistance In the United States, a warranty dispute must be submitted to the BBB AUTO LINE before taking action under the Magnuson-Moss Warranty Act, or to the extent allowed by state law, before pursuing replacement or repurchase remedies provided by certain state laws. This dispute handling procedure is not required prior to enforcing state created rights or other rights which are independent of the Magnuson-Moss Warranty Act or state replacement or repurchase laws.
Page 251 Customer Assistance THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. If a warranty concern has not been resolved using the three-step procedure outlined on the first page of the Customer Assistance section, you may be eligible to participate in the BBB AUTO LINE program.
Page 252 Customer Assistance UTILIZING THE MEDIATION/ARBITRATION PROGRAM (CANADA ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 253 Customer Assistance If you did not take advantage of the Ford Extended Service Plan at the time of purchasing your vehicle, you may still be eligible. Since this information is subject to change, please ask your authorized dealer for complete details about Ford Extended Service Plan coverage options, or visit the Ford ESP website at www.ford-esp.com.
Page 254: Reporting Safety Defects (U.s. Only)
Customer Assistance ORDERING ADDITIONAL OWNER’S LITERATURE To order the publications in this portfolio, contact Helm, Incorporated at: HELM, INCORPORATED P.O. Box 07150 Detroit, Michigan 48207 Or call: For a free publication catalog, order toll free: 1-800-782-4356 Monday-Friday 8:00 a.m. - 6:00 p.m. EST Helm, Incorporated can also be reached by their website: www.helminc.com.
Page 255: Reporting Safety Defects (Canada Only)
Customer Assistance To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153); go to http://www.safercar.gov; or write to: Administrator 1200 New Jersey Avenue, Southeast Washington, D.C. 20590 You can also obtain other information about motor vehicle safety from http://www.safercar.gov.
Page 256: Cleaning
Cleaning WASHING THE EXTERIOR Wash your vehicle regularly with cool or lukewarm water and a neutral pH shampoo, such as Motorcraft Detail Wash (ZC-3-A), which is available from your authorized dealer. • Never use strong household detergents or soap, such as dish washing or laundry liquid.
Page 257 Cleaning WAXING • Wash the vehicle first. • Do not use waxes that contain abrasives; use Motorcraft Premium Liquid Wax (ZC-53-A), which is available from your authorized dealer, or an equivalent quality product. • Do not allow paint sealant to come in contact with any non-body (low-gloss black) colored trim, such as grained door handles, roof racks, bumpers, side moldings, mirror housings or the windshield cowl area.
Page 258 Cleaning ENGINE Engines are more efficient when they are clean because grease and dirt buildup keep the engine warmer than normal. When washing: • Take care when using a power washer to clean the engine. The high-pressure fluid could penetrate the sealed parts and cause damage.
Page 259 Cleaning 3.0L DOHC ENGINE PLASTIC (NON-PAINTED) EXTERIOR PARTS Use only approved products to clean plastic parts. These products are available from your authorized dealer. • For routine cleaning, use Motorcraft Detail Wash (ZC-3-A). • If tar or grease spots are present, use Motorcraft Bug and Tar Remover (ZC-42).
Page 260 Cleaning WINDOWS AND WIPER BLADES The windshield, rear and side windows and the wiper blades should be cleaned regularly. If the wipers do not wipe properly, substances on the vehicle’s glass or the wiper blades may be the cause. These may include hot wax treatments used by commercial car washes, water repellent coatings, tree sap, or other organic contamination;...
Page 261 Cleaning • Be certain to wash or wipe your hands clean if you have been in contact with certain products such as insect repellent and suntan lotion in order to avoid possible damage to the interior painted surfaces. • Do not use household or glass cleaners as these may damage the finish of the instrument panel, interior trim and cluster lens.
Page 262 Cleaning WARNING: Do not use cleaning solvents, bleach or dye on the vehicle’s safety belts, as these actions may weaken the belt webbing. WARNING: On vehicles equipped with seat-mounted airbags, do not use chemical solvents or strong detergents. Such products could contaminate the side-airbag system and affect performance of the side airbag in a collision.
Page 263 Cleaning FORD AND LINCOLN MERCURY CAR CARE PRODUCTS Your Ford or Lincoln Mercury authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and appearance of your vehicle.
Page 264: Maintenance And Specifications
Maintenance and Specifications SERVICE RECOMMENDATIONS To help you service your vehicle, we provide scheduled maintenance information which makes tracking routine service easy. If your vehicle requires professional service, your authorized dealer can provide the necessary parts and service. Check your Warranty Guide/Customer Information Guide to find out which parts and services are covered.
Page 265 Maintenance and Specifications WARNING: To reduce the risk of vehicle damage and/or personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running. OPENING THE HOOD 1. Inside the vehicle, pull the hood release handle located under the bottom of the instrument panel near the steering column.
Page 266: Engine Compartment
Maintenance and Specifications IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 2.3L I4 engine 1. Engine coolant reservoir 2. Engine oil filler cap 3. Engine oil dipstick 4. Brake/Clutch fluid reservoir 5. Transmission fluid dipstick (automatic transmission only) 6. Battery 7. Power distribution box 8.
Page 267 Maintenance and Specifications 3.0L V6 Duratec engine 1. Engine coolant reservoir 2. Power steering fluid reservoir 3. Brake fluid reservoir 4. Transmission fluid dipstick (automatic transmission only) 5. Battery 6. Power distribution box 7. Air filter assembly 8. Coolant bleed valve 9.
Page 268 Maintenance and Specifications WINDSHIELD WASHER FLUID Add fluid to fill the reservoir if the level is low. In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specification WSB-M8B16-A2. Do not use any special washer fluid such as windshield water repellent type fluid or bug wash.
Page 269: Engine Oil
Maintenance and Specifications CHANGING THE WIPER BLADES 1. Pull the wiper arm away from the vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.
Page 270 Maintenance and Specifications • 2.3L I4 engine • 3.0L DOHC V6 Duratec engine 6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again. On 2.3L I4 engine, be sure the notch in the dipstick flange is aligned with the V on the engine when reinserting it.
Page 271 Maintenance and Specifications • 2.3L I4 engine • 3.0L DOHC V6 Duratec engine •If the oil level is within this range, the oil level is acceptable. DO NOT ADD OIL. • 2.3L I4 engine • 3.0L DOHC V6 Duratec engine •If the oil level is below this mark, engine oil must be added to raise the level within the normal operating range.
Page 272 Maintenance and Specifications • 3.0L DOHC V6 Duratec engine • If required, add engine oil to the engine. Refer to Adding engine oil in this chapter. • 2.3L I4 engine • 3.0L DOHC V6 Duratec engine •Do not overfill the engine with oil. Oil levels above this mark may cause engine damage.
Page 273 Maintenance and Specifications Adding engine oil 1. Check the engine oil. For instructions, refer to Checking the engine oil in this chapter. 2. If the engine oil level is not within the normal operating range, add only certified engine oil of the recommended viscosity. Remove the engine oil filler cap and use a funnel to pour the engine oil into the opening.
Page 274: Battery
Maintenance and Specifications Do not use supplemental engine oil additives, cleaners or other engine treatments. They are unnecessary and could lead to engine damage that is not covered by Ford warranty. Change your engine oil and filter according to the appropriate schedule listed in scheduled maintenance information.
Page 275 Maintenance and Specifications It is recommended that the negative battery cable terminal be disconnected from the battery if you plan to store your vehicle for an extended period of time. This will minimize the discharge of your battery during storage. Note: Electrical or electronic accessories or components added to the vehicle by the dealer or the owner may adversely affect battery performance and durability.
Page 276: Engine Coolant
Maintenance and Specifications 4. Allow the engine to idle for at least one minute. 5. Turn the A/C on and allow the engine to idle for at least one minute. 6. Drive the vehicle to complete the relearning process. • The vehicle may need to be driven 10 miles (16 km) or more to relearn the idle and fuel trim strategy.
Page 277 Maintenance and Specifications Your vehicle was factory-filled with a 50/50 engine coolant and water concentration. If the concentration of coolant falls below 40% or above 60%, the engine parts could become damaged or not work properly. A 50/50 mixture of coolant and water provides the following: •...
Page 278 Maintenance and Specifications WARNING: Do not add engine coolant when the engine is hot. Steam and scalding liquids released from a hot cooling system can burn you badly. Also, you can be burned if you spill coolant on hot engine parts. WARNING: Do not put engine coolant in the windshield washer fluid container.
Page 279 Maintenance and Specifications WARNING: To reduce the risk of personal injury, make sure the engine is cool before unscrewing the coolant pressure relief cap. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Add the proper mixture of coolant and water to the cooling system by following these steps: 1.
Page 280 Maintenance and Specifications 7. Close the bleed valve and reinstall the cap on the coolant reservoir. Turn the cap until it is tightly installed to prevent coolant loss. After any coolant has been added, check the coolant concentration. Refer to the Checking engine coolant section. If the concentration is not 50/50 (protection to –34°F [–36°C]), drain some coolant and adjust the concentration.
Page 281 Maintenance and Specifications • Refer to the chart on the coolant container to ensure the coolant concentration in your vehicle will provide adequate freeze protection at the temperatures in which you drive in the winter months. If you drive in extremely hot climates: •...
Page 282 Maintenance and Specifications When this occurs the vehicle will still operate. However: • The engine power will be limited. • The air conditioning system will be disabled. Continued operation will increase the engine temperature and the engine will completely shut down, causing steering and braking effort to increase.
Page 283: Fuel Information
Maintenance and Specifications WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS Important safety precautions WARNING: Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire. WARNING: The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 284 Maintenance and Specifications • Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury.
Page 285 Maintenance and Specifications • DO NOT fill a fuel container while it is in the vehicle (including the cargo area). • Keep the fuel pump nozzle in contact with the fuel container while filling. • DO NOT use a device that would hold the fuel pump handle in the fill position.
Page 286 Maintenance and Specifications WARNING: The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out and injure you or others. WARNING: If you do not use the proper fuel filler cap, excessive vacuum in the fuel tank may damage the fuel system or cause the fuel cap to disengage in a collision, which may result in...
Page 287 Maintenance and Specifications Do not add aftermarket fuel additive products to your fuel tank. It should not be necessary to add any aftermarket products to your fuel tank if you continue to use high quality fuel of the recommended octane rating.
Page 288 Maintenance and Specifications NOT accurate as a measure of fuel economy. We do not recommend taking fuel economy measurements during the first 1,000 miles (1,600 km) of driving (engine break-in period). You will get a more accurate measurement after 2,000 miles–3,000 miles (3,000 km–5,000 km).
Page 289 Maintenance and Specifications 3. After at least three to five tank fill-ups, fill the fuel tank and record the current odometer reading. 4. Subtract your initial odometer reading from the current odometer reading. 5. Follow one of the simple calculations in order to determine fuel economy: Calculation 1: Divide total miles traveled by total gallons used.
Page 290 Maintenance and Specifications • Resting your foot on the brake pedal while driving may reduce fuel economy. • Combine errands and minimize stop-and-go driving. Maintenance • Keep tires properly inflated and use only recommended size. • Operating a vehicle with the wheels out of alignment will reduce fuel economy.
Page 291 Maintenance and Specifications EMISSION CONTROL SYSTEM Your vehicle is equipped with various emission control components and a catalytic converter which will enable your vehicle to comply with applicable exhaust emission standards. To make sure that the catalytic converter and other emission control components continue to work properly: •...
Page 292 Maintenance and Specifications Do not make any unauthorized changes to your vehicle or engine. By law, vehicle owners and anyone who manufactures, repairs, services, sells, leases, trades vehicles, or supervises a fleet of vehicles are not permitted to intentionally remove an emission control device or prevent it from working.
Page 293 Maintenance and Specifications Readiness for Inspection/Maintenance (I/M) testing Some state/provincial and local governments may have Inspection/Maintenance (I/M) programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Your vehicle may not pass the I/M test if the Service engine soon indicator is on or not working properly (bulb is burned out), or if the OBD-II system has determined...
Page 294 Maintenance and Specifications POWER STEERING FLUID Refer to scheduled maintenance information for the service interval schedules. • 2.3L I4 Engine • 3.0L V6 Engine 1. Start the engine and let it run until it reaches normal operating temperature (the engine coolant temperature gauge indicator will be near the center of the normal area between H and C).
Page 295 Maintenance and Specifications BRAKE/CLUTCH FLUID Brake and clutch systems are supplied from the same reservoir. The fluid level will drop slowly as the brakes wear, and will rise when the brake components are replaced. Fluid levels between the “MIN” and “MAX”...
Page 296 Maintenance and Specifications 6. Install the dipstick making sure it is fully seated in the filler tube. 7. Remove the dipstick and inspect the fluid level. The fluid should be in the designated areas for normal operating temperature. Low fluid level Do not drive the vehicle if the fluid level is below the lower notch on the dipstick and the outside...
Page 297 Maintenance and Specifications If necessary, add fluid in 1/2 pint (250 mL) increments through the filler tube until the level is correct. If an overfill occurs, excess fluid should be removed by an authorized dealer. An overfill condition of transmission fluid may cause shift and/or engagement concerns and/or possible damage.
Page 298 Maintenance and Specifications 5. Remove the dipstick, wiping it clean with a clean, dry, lint-free rag. If necessary, refer to Identifying components in the engine compartment in this chapter for the location of the dipstick. 6. Install the dipstick making sure it is fully seated in the filler tube. 7.
Page 299 Maintenance and Specifications Note: Only one ATF fluid specification has been tested and approved for use with the automatic 6-speed: Premium Automatic Transmission fluid. Mercon fluids cannot be used with the automatic 6-speed without damage or voiding warranty. Use of a non-approved automatic transmission fluid may cause internal transmission component damage.
Page 300: Air Filter(S)
Maintenance and Specifications AIR FILTER Refer to scheduled maintenance information for the appropriate intervals for changing the air filter element. When changing the air filter element, use only the Motorcraft air filter element listed. Refer to Motorcraft part numbers in this chapter. WARNING: To reduce the risk of vehicle damage and/or personal burn injuries do not start your engine with the air cleaner removed and do not remove it while the engine is running.
Page 301 Maintenance and Specifications • 2.3L I4 engine • 3.0L DOHC V6 Duratec engine 3. Remove the air filter element from the air filter housing. 4. Wipe the air filter housing and cover clean to remove any dirt or debris and to ensure good sealing. 5.
Page 302: Part Numbers
Maintenance and Specifications MOTORCRAFT PART NUMBERS Component 2.3L I4 engine 3.0L DOHC V6 Duratec engine Air filter element FA-1785 FA-1786 Battery BXT-96R BXT-40R Oil filter FL-2017-B FL-500-S PCV valve Spark Plugs When changing oil filter you must also replace the filter cap O-ring. The oil filter drain plug O-ring must also be replaced whenever the oil filter drain plug is removed.
Page 303: Maintenance Product Specifications And Capacities
Maintenance and Specifications 2009 Milan (mln) Owners Guide USA (fus)
Page 304 Maintenance and Specifications 2009 Milan (mln) Owners Guide USA (fus)
Page 305 Maintenance and Specifications 2009 Milan (mln) Owners Guide USA (fus)
Page 306: Engine Data
Maintenance and Specifications ENGINE DATA Engine 2.3L I4 engine 3.0L DOHC V6 Duratec engine Cubic inches Required fuel 87 octane 87 octane Firing order 1-3-4-2 1-4-2-5-3-6 Ignition system Coil on plug Coil on plug Spark plug gap 0.049–0.053 inch 0.052–0.056 inch (1.25–1.35 mm) (1.32–1.42 mm) Compression ratio...
Page 307 Maintenance and Specifications IDENTIFYING YOUR VEHICLE Safety Compliance Certification Label The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label is located on the structure (B-Pillar) by the trailing edge of the driver’s...
Page 308 Maintenance and Specifications The Vehicle Identification Number (VIN) contains the following information: 1. World manufacturer identifier 2. Brake system / Gross Vehicle Weight Rating (GVWR) / Restraint System 3. Vehicle line, series, body type 4. Engine type 5. Check digit 6.
Page 309: Accessories
Accessories GENUINE MERCURY ACCESSORIES FOR YOUR VEHICLE A wide selection of Genuine Mercury Accessories are available for your vehicle through your local Mercury or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
Page 310 Accessories Wheel locks For maximum vehicle performance, keep the following information in mind when adding accessories or equipment to your vehicle: • When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front or rear axle (GVWR or GAWR as indicated on the Safety Compliance Certification label).
Page 311: Index
Index fluid, refill capacities ....303 fluid, specification ....303 Accessory delay ......73 Auxiliary input jack (Line in) ..36 AdvanceTrac ......204 Axle Air cleaner filter ....300, 302 lubricant specifications ..303 Air conditioning ....46, 48 Airbag supplemental restraint system ......139, 148, 151 Battery ........274 and child safety seats ....141 acid, treating emergencies ..274 description ....139, 148, 151...
Page 312 Index in rear seat ......158 Customer Assistance ....225 LATCH ........161 Ford Extended Service recommendations ....156 Plan ..........252 Getting assistance outside the Child safety seats - booster U.S. and Canada .....253 seats ...........166 Getting roadside assistance ...225 Cleaning your vehicle Getting the service you engine compartment ....258 need .........248 Ordering additional owner’s...
Page 313 Index service points ....266–267 safety information relating to automotive fuels .....283 starting after a collision ..227 Fuel pump shut-off switch ..227 Engine block heater ....200 Fuses ........227–228 Engine oil ........269 change oil soon warning, message center .......269 checking and adding ....269 Gas cap (see Fuel cap) ....285 dipstick ........269 filter, specifications ..273, 302...
Page 314 Index Inspection/maintenance (I/M) Load limits .........191 testing ........293 Locks Instrument panel ......71 autolock ........98 cleaning ........260 childproof ........101 cluster ........10 doors ..........97 lighting up panel and Lubricant specifications ...303 interior ........54 Lug nuts ........239 Lumbar support, seats .....119 Jack ..........234 positioning .......234 storage ........234 Manual transmission ....215...
Page 315 Index Parts (see Motorcraft parts) ..302 Safety defects, reporting ..254–255 Passenger Occupant Safety restraints ..125, 129–133 Classification Sensor ....127 Belt-Minder ......134 extension assembly ....133 Power distribution box for adults ......130–132 (see Fuses) .......231 for children ......154 Power door locks ......97 Occupant Classification Sensor ........127 Power mirrors ......75...
Page 316 Index Steering wheel fluid, checking and adding (manual) .........299 controls ........78 tilting .........69 Transmission ......210 brake-shift interlock (BSI) ..210 SYNC ..........43 fluid, refill capacities ....303 lubricant specifications ..303 manual operation ....215 Trunk .........102 Tilt steering wheel ......69 remote release ....94, 105 Tire Pressure Monitoring Turn signal ........56 System (TPMS)

Mercury Milan 2009 Manual

Quick Links

Table of Contents

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercury Milan 2009

Summary of Contents for Mercury Milan 2009

Table of Contents
