- Page 1 Operating Instructions 11/2011 MN04802005Z-EN XV-112 MICRO PANEL...
- Page 2 All brand and product names are trademarks or registered trademarks of the owner concerned. Copyright © Eaton Automation AG, CH-9008 St. Gallen All rights reserved, also for the translation. None of this document may be reproduced or processed, duplicated or distributed by electronic systems in any form (print, photocopy, microfilm or any other process) without the written permission of Eaton Automation AG, St.
-
Page 3: Table Of Contents
Preparation of cables with D-Sub connector............... 5.3.3 Power supply....................... 5.3.4 RS232 (System Port) ....................5.3.5 Ethernet........................5.3.6 USB Device......................... 5.3.7 USB Host ........................5.3.8 CAN..........................5.3.9 RS485 ......................... Mounting ........................5.4.1 Mounting the device ....................MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 4 Dimensions and weights ..................... 9.1.1 5.7" devices......................... 9.1.2 7.0" devices......................... Display ........................Touch sensor ......................System ........................Interfaces ........................9.5.1 Power supply....................... Enclosure ratings ......................Agency approvals and standards................Applicable standards and regulations ................. Ambient conditions...................... MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 5: General

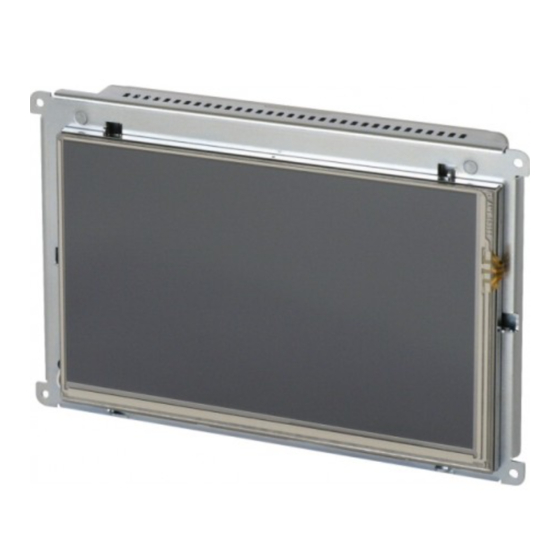

Purpose of these Operating Instructions These Operating Instructions contain the information required for the correct and safe use of the MICRO PANELs XV-112. The Operating Instructions are part of the devices and must therefore be kept nearby. These Operating Instructions describe all aspects of the devices: transport, installation, commissioning, operation, maintenance, storage and disposal. - Page 6 1 General 1.3 Additional documentation MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 7: Device Description
1 × RS232 1 × USB Host WVGA Communication interfaces Tab. 1 Device versions 1) The CAN interfaces of XV-112-DB-… are electrically isolated. The CAN interfaces of all other device versions are not elec- trically isolated. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 8: Package Contents
2 Device description 2.4 Package contents Package contents The package contents of the MICRO PANELs XV-112 consist of the following: Designation MICRO PANEL: XV-112-…-57TVR… or XV-112-…-70TWR… Power supply connector Stylus Tab. 2 Package contents Accessories Different accessories are available. Use only original accessories. -
Page 9: Safety Regulations
Read this chapter before working with the device. This contains important information for your personal safety. This chapter must be read and understood by all persons work- ing with this device. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 10: Meaning Of Symbols
Signal word CAUTION without safety alert symbol Indicates a situation which, if not avoided, could result in material damage. Indicates useful information. The danger symbol used and the text indicate the actual danger and the related preventative measures. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 11: Mandatory Requirements, Personnel
It must be ensured that the device is properly connected, mounted, maintained and disposed of in compliance with all relevant standards and safety regulations. 3.3.5 Prohibited use The implementation of safety functions (relating to the protection of personnel and machinery) using the device is prohibited. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 12: Requirements For Proper Operation
Failure or malfunction of the device Improper handling or use Failure to observe the Operating Instructions Conversions, modifications and repairs to the device Repairs, see Chapter 7.3.1 Repairs, 45. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 13: Device Related Hazards
Avoid contact with components (such as connector pins) that are susceptible to electrostatic discharge. Discharge (by touching a grounded metal object) any static charge accumulated in your body before touching the device. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 14 CAUTION UV light When exposed to UV light, plastics can embrittle and the lifespan of the device is reduced. Protect the device against direct sunlight (UV rays). MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
- Page 15 Do not use any pointed or sharp objects (e.g. knife) for cleaning. Do not use any aggressive or abrasive cleaning agent or solvent. Avoid any liquid entering the device (risk of short-circuit). MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
- Page 16 3 Safety regulations 3.4 Device related hazards MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 17: Operating And Indication Elements
These devices are operated by touching the operating elements with your finger or with a stylus. C SD slot 0 Slot for SD card. D Control button Function depends on the software used. Tab. 3 Operating and indication elements MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 18 4 Operating and indication elements 4.1 Overview MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 19: Installation
5 Installation 5.1 Safety regulations Installation Safety regulations Read Chapter 3 Safety regulations, 9 before installing and commissioning the device. This contains important information for your personal safety. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 20: Requirements For The Place Of Installation
55. Properties of the mounting surfaces: Material thickness at the mounting cutout min. 3 mm Flatness ≤ 0.5 mm (this requirement must also be fulfilled when the device is mounted!) MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 21: Interfaces
Any generally applicable regulations and standards must be fulfilled. CAUTION Non-isolated interfaces The device may be damaged due to potential differences. The GND terminals of all bus stations must be connected. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 22: Overview Of Interfaces
→ Chapter 5.3.4, 26 RS485 → Chapter 5.3.9, 33 → Chapter 5.3.3, 25 E Power supply F DIAG Only for service tasks G Jumper UPD/RUN Only for service tasks Tab. 4 Overview of interfaces MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 23: Preparation Of Cables With D-Sub Connector
The folded back shield braid end must be covered by the heat shrinkable tubing or by the rubber grommet. Fit the D-Sub connector to the cable end: The exposed metal shield braid must be clamped to the connector casing with the cable clamp. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 24 B Heat shrinkable tubing or rubber grommet E D-Sub connector C Cable clamp F Mounting screw UNC The EMC values stated in the technical data (immunity and emission) can only be guar- anteed by observing the prescribed cable preparation! MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 25: Power Supply
/ max. 2.5 mm (lead or wire) min. AWG18 / max. AWG12 Stripping length 7 mm Max. tightening torque 0.6…0.8 Nm / 5…7 Lb. In. Tab. 6 Preparing the wiring of the connector MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 26: Rs232 (System Port)
The maximum baud rate depends on the cable length: Cable length Max. baud rate 2.5 m 115200 Bit/s 57600 Bit/s 10 m 38400 Bit/s 15 m 19200 Bit/s 30 m 9600 Bit/s Tab. 8 Relationship of cable length / baud rate MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 27 5 Installation 5.3 Interfaces When preparing the cables, ensure that there is a low-resistance connection between the cable shield and the connector casing (→ Chapter 5.3.2, 23). MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 28: Ethernet
Communication can be disturbed and the connection mechanics damaged if the Ethernet interface is exposed to severe vibration or the RJ45 plug connection is pulled. Protect the RJ45 connection from severe vibration. Protect the RJ45 connection from pulling on the socket. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 29: Usb Device
5.3.7 USB Host The USB Host interface supports USB 2.0. Fig. 12 USB Host interface (USB Host, type A) Cable Only use shielded USB standard cable. Maximum cable length: 5 m. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 30: Can
Pins 1, 4, 5, 8 and 9 must not be connected. The CAN bus drivers are fed internally with power. No power supply for third-party devices is implemented on the CAN connector. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 31 The bus segment must be terminated at both ends. No more than two terminations must be provided on each bus segment. Transmission faults can occur if operation is carried out without the correct termina- tion. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
- Page 32 5 Installation 5.3 Interfaces Fig. 14 Bus segment with four bus stations MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 33: Rs485
Fig. 15 RS485 interface (9-pin, D-Sub, male, UNC) Signal Assignment Line B Ground Line A Tab. 13 Pin assignment of the RS485 interface nc: Pins 1, 2, 4, 6, 8 and 9 must not be connected. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 34 No more than two terminations must be provided on each bus segment. Transmission faults can occur if operation is carried out without the correct termina- tion. Fig. 16 Bus segment with four bus stations MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 35: Mounting
The device is not provided with an On/Off switch. If the power supply is not provided with a switch, the device will start up (boot) as soon as it is connected to the power sup- ply. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 36: Mounting The Device
Window size 117 × 88.2 mm (±0.1 mm), edge radius ≤ 1.0 mm Mounting holes: Distance horizontal 164 mm Distance vertikal 106 mm Diameter 3.2 mm Tab. 15 Important dimensions of the 5.7" devices MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 37 154 × 93.0 mm (±0.1 mm), edge radius ≤ 1.0 mm Window size Mounting holes: Distance horizontal 180 mm Distance vertikal 114 mm Diameter 3.2 mm Tab. 16 Important dimensions of the 7.0" devices MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
- Page 38 5 Installation 5.4 Mounting MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 39: Operation
If condensation is present on the device, or if it was exposed to temperature fluc- tuations, it must be allowed to adjust to room temperature (do not expose the de- vice to the direct heat of heating devices) prior to commissioning. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 40: Starting The Device
Adjust the system settings of the device. Install the required application programs. The lifespan of the backlight can be increased by reducing the brightness (→ Document «MN05010007Z-EN System Description Windows CE»). Switching off the device De-energize the device. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 41: Inserting And Removing An Sd Card
Push the SD card in the SD slot (A) all the way in. This releases the lock mechanism and the SD card comes out of the SD slot a little. Remove the SD card from the SD slot. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 42 6 Operation 6.4 Inserting and removing an SD card MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
-
Page 43: Maintenance And Service
7 Maintenance and service 7.1 Safety regulations Maintenance and service Safety regulations Read Chapter 3 Safety regulations, 9 before working with the device. This contains im- portant information for your personal safety. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 44: Maintenance
The resistive touch is already calibrated when delivered. However, it must be recalibrated if it does not respond correctly to touch operation. Touch calibration, see Document «MN05010007Z-EN System Description Windows CE». 7.2.3 Battery The integrated battery cannot be exchanged. Lifespan, see Chapter 9.4 System, 52. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 45: Service
Repairs The device must only be opened by the manufacturer or by an authorized repair center. Contact your local supplier or Eaton technical support for repairs. Only the original packaging should be used for transporting the device. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 46: Troubleshooting
Incorrect operation of the operating elements Remove all objects from the area of the display. on the display. Device is faulty. Send in your device for repair. Tab. 17 Troubleshooting MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 47: Storage, Transport And Disposal
Damage to the device must be prevented during transport (use an appropriate packaging). The ambient conditions must be fulfilled even when the device is transported. See Chapter 9.9 Ambient conditions, 55. Check the device on arrival for damage in transit. MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 48: Disposal
The materials used for our housings are halogen-free. Materials used in the packaging Packaging Material External packaging Cardboard Internal packaging Cardboard Plastic bag: Polyethylene (PE) Tab. 19 Materials used in the packaging MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 49: Technical Data
Fig. 20 Mechanical dimensions of the 5.7" devices in mm Property XV-112 5.7" Height 115 mm Width 172 mm Depth 38.5 mm Weight Approx. 0.7 kg Tab. 20 Dimensions and weights of the 5.7" devices MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 50: Devices
Fig. 21 Mechanical dimensions of the 7.0" devices in mm Property XV-112 7.0" Height 123 mm Width 188 mm Depth 38.5 mm Weight Approx. 0.9 kg Tab. 21 Dimensions and weights of the 7.0" devices MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 51: Display
100 % … 20 % brightness Lifespan Normally 40 000 h Resistive touch back panel Touch sensor (glass with foil) Tab. 22 Display Touch sensor Property XV-112 Type Resistive touch Technology 4-wire Tab. 23 Touch sensor MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 52: System
USB 2.0 (1.5 / 12 / 480 MBit/s), not electrically isolated RS232 (System Port) RS232, not electrically isolated CAN, not electrically isolated Exception: The CAN interfaces of XV-112-DB-… are electri- cally isolated. RS485 RS485, not electrically isolated Power supply → Chapter 9.5.1, 53... -
Page 53: Power Supply
Protection against reverse polarity Fuse Yes (replacement only by the manufacturer or by an authorized repair center) Potential isolation Tab. 26 Power supply Enclosure ratings Property XV-112 Housing IP20, Enclosure Type 1 Tab. 27 Enclosure ratings MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 54: Agency Approvals And Standards
(Engineering conditions of acceptability by UL, → Kapitel 5.2.1, 20) Product standards EN 50178 Electronic equipment for use in power installations IEC/EN 61131-2 Programmable logic controllers, equipment require- ments and tests Tab. 29 Applicable standards and regulations MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... -
Page 55: Ambient Conditions
9…60 Hz: 0.15 mm Acceleration: 60…150 Hz: 2 g Schock in accordance with IEC/EN 60068-2-27 15 g / 11 ms Fall test In accordance with IEC/EN 60068-2-31 Tab. 30 Ambient conditions MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com... - Page 56 9 Technical data 9.9 Ambient conditions MICRO PANEL XV-112 11/2011 MN04802005Z-EN www.eaton.com...
