Chapter 5 - Splice Option

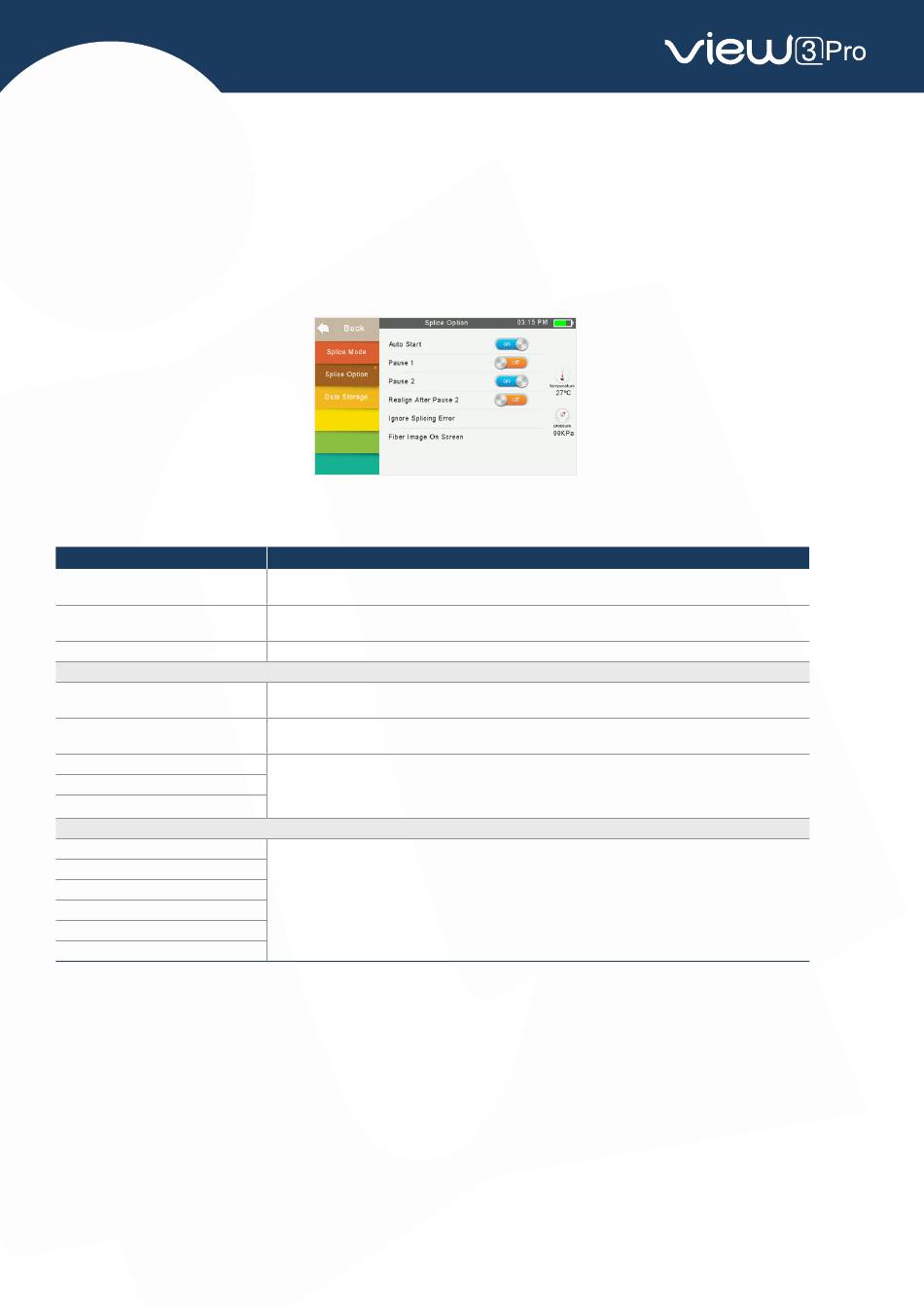

5.1 Splice Mode Setting

1 Select [Splice option] in menu.
2 Select a parameter to be changed.
Parameter
Auto start
Pause 1
Pause 2
Cleave angle
Core angle
Loss
Fat
Thin
Pause 1
Align
Pause 2
Arc
Estimate
Gap set
If "Auto start" is set to ON, splicing starts automatically as soon as the wind protector is
closed. Fibers should be prepared and placed into the splicer in advance.
If "Pause 1" is set to ON, splicing operation pauses when fibers are forwarded to gap-set
position. Cleave angles are displayed during the pause.
If "Pause 2" is set to ON, splicing operation pauses after fiber alignment is completed.
Ignore splice error
Setting to "OFF" ignores the faults and continues to complete the splicing even if the mes-
sage "Cleave Angle Error" appears.
Setting to "OFF" ignores the faults and continues to complete the splicing even if the mes-
sage "Core Angle Error" appears.
Setting to "OFF" ignores the faults and continues to complete the splicing even if the mes-
sage "Loss Error" , "Cleave Shape Error" , "Fat Error" , or "Thin Error" appears.
Fiber immage on screen
Set the displaying method of the fiber image on the screen during splicing operation.
