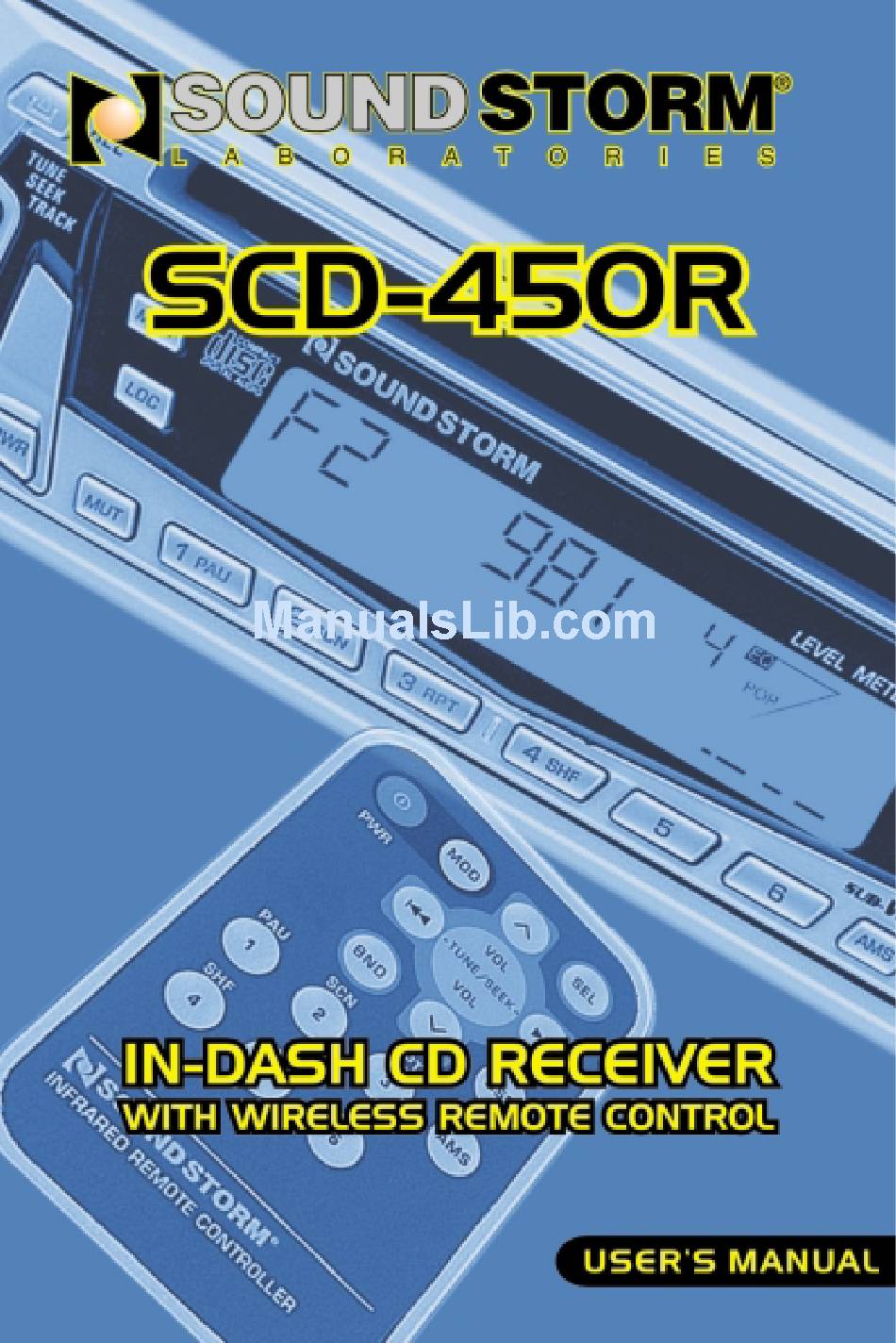

Sound Storm SCD-450R User Manual

In-dash cd receiver with wireless remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCD-450R and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Storm SCD-450R

Summary of Contents for Sound Storm SCD-450R

  • Page 2: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function. • Before final installation, connect the wiring temporarily and make sure the unit and the system work properly. • Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 3: Din Rear-Mount (Method B)

    (Fig. 2) Removing the unit DIN REAR-MOUNT (Method B) Installation using the screw holes on the sides of the unit. 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw (5 x 28mm) 6. Backstrap Be sure to use the backstrap to secure the back of the unit in place.

  • Page 4: How To Remove And Install The Front Panel

    HOW TO REMOVE AND INSTALL THE FRONT PANEL 1. Press the release button and pull-off the front panel. Keep front panel into the case. 2. To install the front panel, insert the panel into the housing and make sure the panel is properly installed, otherwise, abnormalities occurs on the display or some keys will not function properly.

  • Page 5: Wiring Connection

    WIRING CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (B+) YELLOW MEMORY BACK-UP BLACK GROUND (B–) POWER ANTENNA 2-SPEAKERS SYSTEM 4-SPEAKERS SYSTEM WHITE FRONT Lch SPK. SPK. REAR Lch SPK. GREEN/BLACK Note: 1. For 2-speakers system, green, violet, white/black and grey/black wire leads are unconnected and isolated.

  • Page 6: General Operation

    OPERATION GENERAL OPERATION • ON/OFF Switch on the unit by pressing any button (except When system is on, hold PWR button (9) to turn off the unit. • FACEPLATE RELEASE Press REL button (7) to detach the removable faceplate. • SOUND ADJUSTMENT Press SEL button (10) to select the desired adjustment mode.
  • Page 7 The adjustment mode will change in the following order: Volume By pressing VOL button (11) or VOL desired level. • LOUDNESS Press BND/LOU button (13) for several seconds to reinforce the bass output. The display will show “LOUD”. Press it for several seconds again to defeat this function. •...

  • Page 8: Radio Operation

    RADIO OPERATION • BAND SELECTION For tuner mode, press BND/LOU button (13) briefly to select the desired band. The reception band will change in the following order: • STATION SELECTION Press TUNE/SEEK/TRACK (17) briefly to activate automatic seek function. Press for several seconds until “MANUAL” appears on the display. The manual tuning mode is now active.
  • Page 9 CD OPERATION • SELECT TRACKS During CD operation, press TUNE/SEEK/TRACK TUNE/SEEK/TRACK track. Track number shows on the display. During CD operation, hold TUNE/SEEK/TRACK TUNE/SEEK/TRACK from when you release the button. • PAUSE PLAYING Press PAU button (20) to pause CD player. Press it again to resume play. •...

  • Page 10: Remote Control Handset

    REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL = Power ON/OFF Button = Display Button = Select Button = Volume Up Button = Volume Down Button = Band Select Button = Mode Button TUNE/SEEK = Tune/Seek Down Button TUNE/SEEK = Tune/Seek Up Button 10.

  • Page 11: Specification

    SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Consumption Weight CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB)

  • Page 12: Troubleshooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of disc already loaded or ejected.
