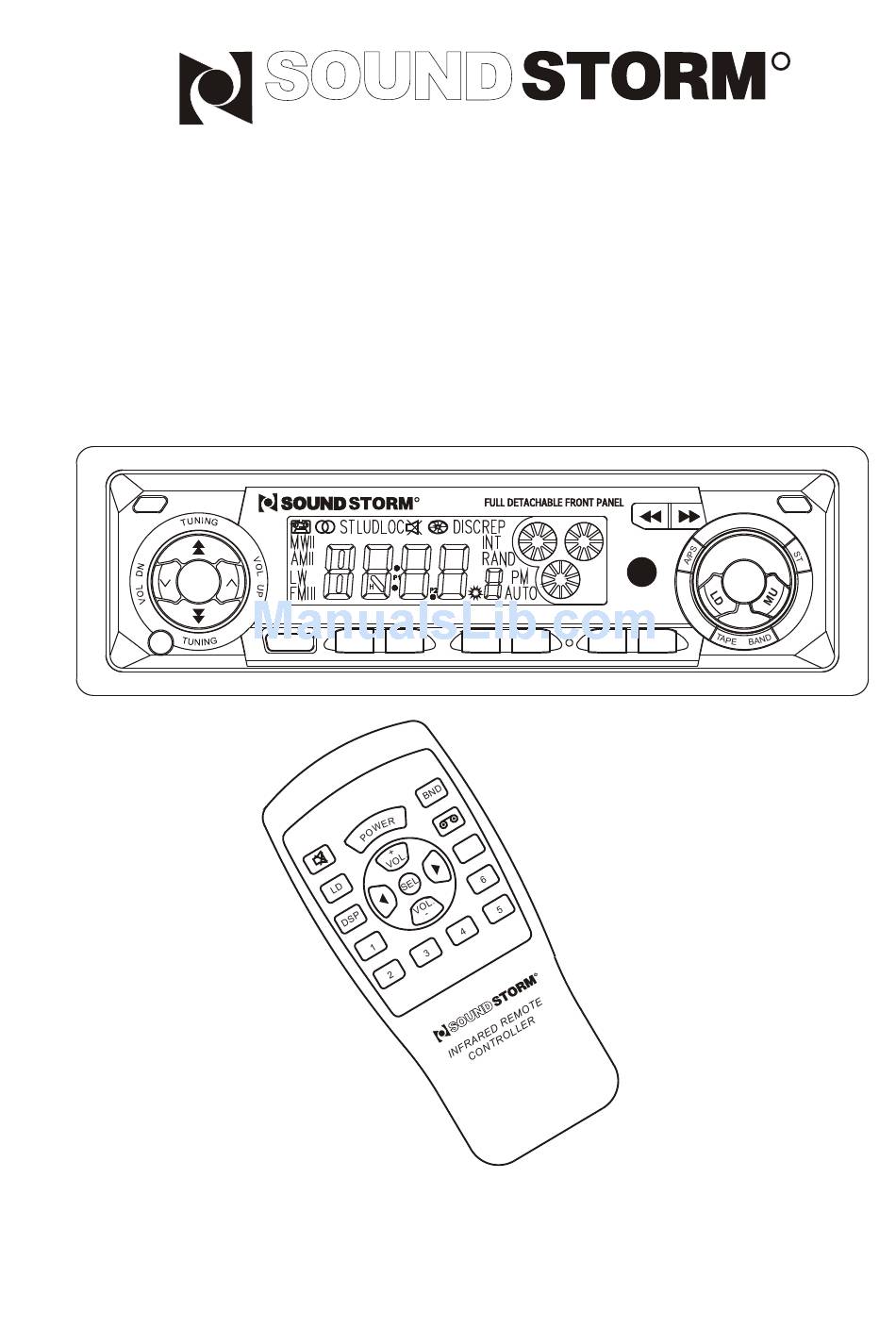

- Page 1 SCP260R OWNER'S MANUAL SCP260R F/CL FOLD DOWN ELECTRONICALLY TUNED AM/FM/MPX RADIO W/ REMOTE CONTROL AUTO-REVERSE STEREO CASSETTE PLAYER...
- Page 2 OPERATION HOW TO OPERATE INSTALLATION Mechanical Installation CAUTION & MAINTENANCE ELECTRICAL CONNECTION SPECIFICATIONS...
- Page 3 Also press for more than 2 seconds and release to select frequency automatically for down. LCD DISPLAY Indicates all the functions selected. SCP260R F/CL F/CL SELECT PROGRAM AND FAST FORWARD /REWIND (FF/REW) Press these two knobs simultaneously to change tape side and direction, Press"...
- Page 4 HOW TO OPERATE ST BUTTON(STEREO) Press it for stereo or mono mode. MU BUTTON(MUTE) Press the button will decrease the audio output. BAND BUTTON To select FM1,FM2,FM3 and AM1, AM2, press the "BAND" button and the selected band indication will be displayed on the LCD. TAPE BUTTON 1.To insert a tape into the deck, hold the cassette with the exposed tape edge to the right and...
- Page 5 INSTALLATION Even through the unit will be mounted in the dashboard, be sure to mount the unit firmly .It is important to make the mounting as sturdy as possible. Use the mounting case and strap bracket. Be sure to use the screws and nuts applied for installation.
- Page 6 Remove the front panel by pulling its middle-hand outward. Insert till the tab of the key catches onto the metal fixture of the unit. (Point the tab of the key upward.) The unit can be released from the dashboard by pulling the unit.
-
Page 7: Replacing The Front Panel
REPLACING THE FRONT PANEL Push the front panel into the main body. When replacing the front panel, do not put pressure on the display or control buttons. Front Panel PRECAUTIONS Do not touch the contacts on the front panel or on the unit body, since this way result in poor electrical contact. -
Page 8: Specifications
WIRING INSTRUCTIONS ANTENNA YELLOW (BACK UP) RED B+ BATTERY B+ BLACK GROUND (-) FUSE GREEN/BLACK PURPLE/BLACK WHITE GREY WHITE/BLACK GREY/BLACK FRONT RIGHT SPEAKER FRONT LEFT SPEAKER GREEN PURPLE REAR RIGHT SPEAKER REAR LEFT SPEAKER Power Output 4x40W CAUTIONS DO NOT CONNECT SPEAKERS (-) TO GROUND &...
