Summary of Contents for Sound Storm SCD-750R

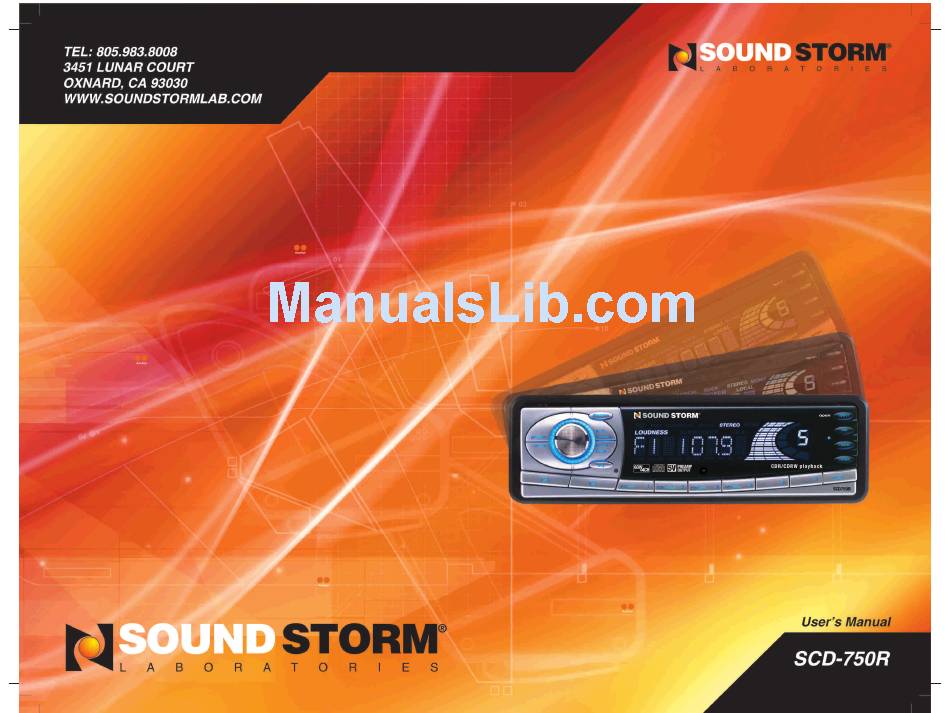

- Page 1 SIZE: 140x210mm SIZE: 140x210mm...
- Page 2 SIZE: 140x210mm SIZE: 140x210mm (Fig.1)
-
Page 3: Detaching The Front Panel
SIZE: 140x210mm Release Button Before removing the bezel, press the RELEASE button to remove the front panel. Then insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard. -
Page 4: General Controls
SIZE: 140x210mm FRONT RCA OUTPUT REAR RCA OUTPUT AUXILIARY INPUT FEATURE This CD Receiver features an Auxiliary Input jack on the back side of the unit. An external audio source such as a portable audio player or a DVD player may be connected via this input jack. -
Page 5: Audio Controls
SIZE: 140x210mm AUDIO CONTROLS EQ Press repeatedly to cycle through five modes: FLAT, CLASSICAL, POP M, JAZZ M or DSP OFF. LOUDNESS Press and hold to increase the level of bass output. SUB Press and hold to engage output ("SUBWOOFER" will appear in display). -
Page 6: Controls Behind Faceplate
SIZE: 140x210mm CONTROLS BEHIND FACEPLATE RESET LED This LED flashes when the faceplate is removed. RESET BUTTON Press this button with a ballpoint pen or other thin object. Use it: after initial installation of the unit, when all wiring is complete when the function buttons do not operate when the display is showing "ERROR"... - Page 7 SIZE: 140x210mm...
