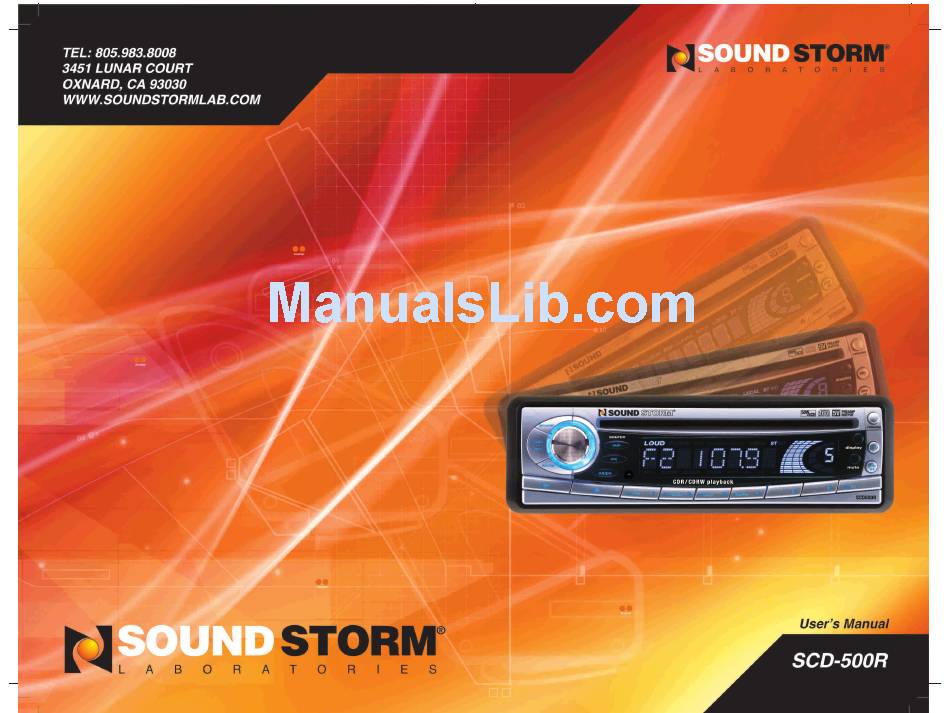

- Page 1 SIZE: 140x210mm SIZE: 140x210mm...
- Page 2 SIZE: 140x210mm SIZE: 140x210mm (Fig.1)
- Page 3 SIZE: 140x210mm Release Button Before removing the bezel, press the RELEASE button to remove the front panel. Then insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard.
- Page 4 DISPLAY To set clock, press and hold, then press the TUNE/TRACK to change hours, for minutes. SCD-500R RADIO CONTROLS STATION PRESETS Press any preset to select a station. To store a station in memory, tune to it, and press and hold your choice of preset button for several seconds.
- Page 5 PAUSE Press to pause CD playback. Press again to resume playback. TUNE/TRACK BUTTONS Press and release to advance to next track or to return to the SCD-500R beginning of the current track (track number will be displayed). Press and hold to fast forward or reverse.
- Page 6 SIZE: 140x210mm CONTROLS BEHIND FACEPLATE RESET LED This LED flashes when the faceplate is removed. RESET BUTTON Press this button with a ballpoint pen or other thin object. Use it: after initial installation of the unit, when all wiring is complete when the function buttons do not operate when the display is showing "ERROR"...
- Page 7 SIZE: 140x210mm...
