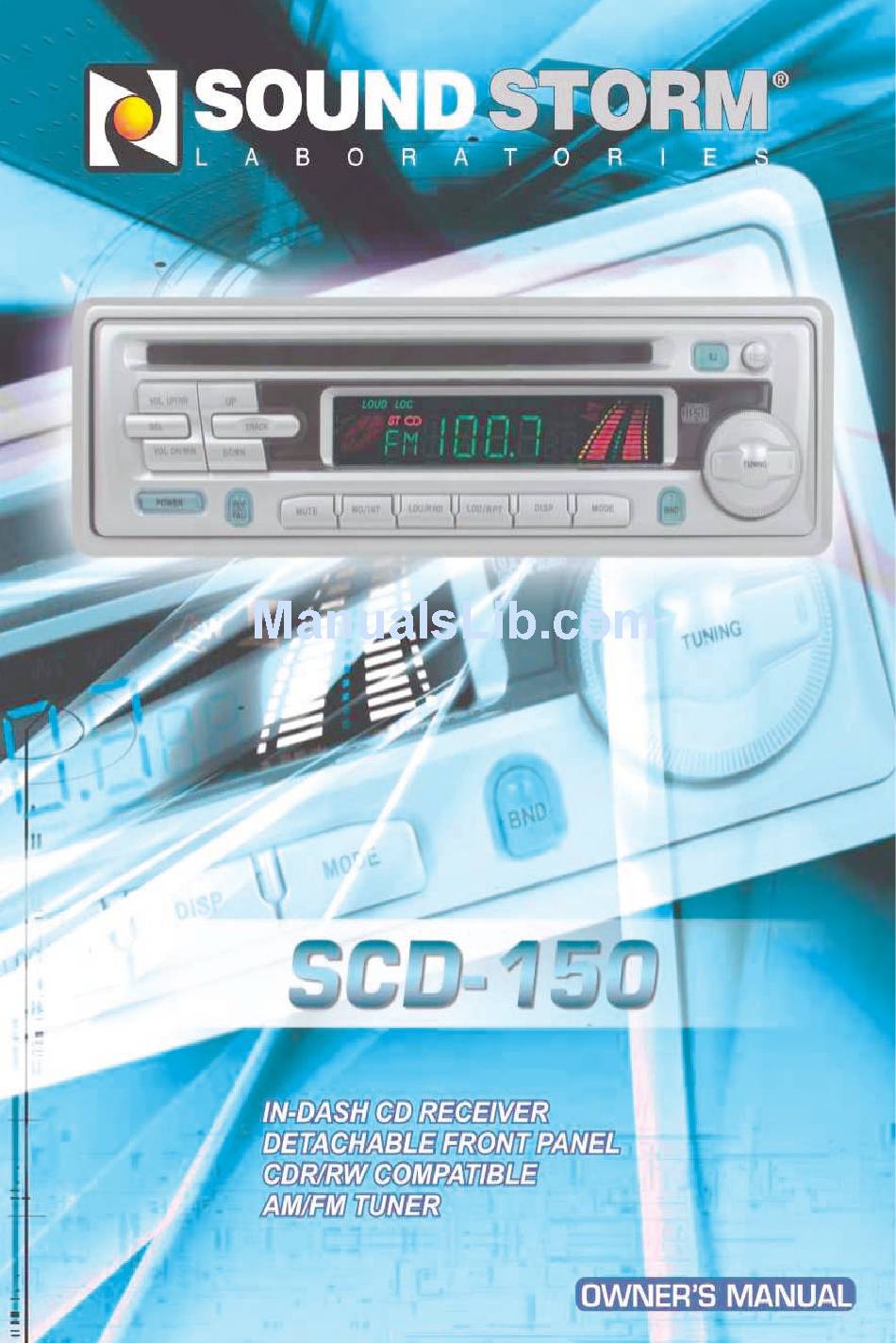

Sound Storm SCD-150 Owner's Manual

In-dash cd receiver detachable front panel cdr/rw compatible am/fm tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCD-150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sound Storm SCD-150

Summary of Contents for Sound Storm SCD-150

  • Page 3: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •...

  • Page 4: Din Rear-Mount (Method B)

    (Fig. 2) Removing the unit DIN REAR-MOUNT (Method B) Installation using the screw holes on the sides of the unit. 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place.

  • Page 5: How To Remove And Install The Front Panel

    HOW TO REMOVE AND INSTALL THE FRONT PANEL 1. Press the release button and pull-off the front panel. When it is detached keep the front panel in the protective carrying case. 2. To install the front panel, insert the left side of the panel into the unit and gently press the right side until it “clicks”...

  • Page 6: Wiring Connection

    WIRING CONNECTION ANTENNA CONNECTOR FUSE IGNITION SWITCH (B+) YELLOW MEMORY BACK-UP CHOKE BLACK GROUND (B–) POWER ANTENNA 2-SPEAKERS SYSTEM 4-SPEAKERS SYSTEM WHITE FRONT Lch SPK. SPK. REAR Lch SPK. GREEN/BLACK Note: 1. For 2-speakers system, green, violet, white/black and grey/black wire leads are unconnected and isolated.

  • Page 7: Location And Function Of Controls

    LOCATION AND FUNCTION OF CONTROLS 4 22 17 23 GENERAL OPERATION • ON/OFF Press POWER button (1) to turn on the unit. Press it again to turn it off. • FACEPLATE RELEASE Press REL button (2) to detach the removable faceplate. •...

  • Page 8: Set The Clock

    • SET THE CLOCK Press DSP button (9) to change the display to clock display. Press it again to return to previous display. In clock display, press and hold the DSP button (9) for several seconds until the clock display flashes. Press VOL DN (5) to change minutes or VOL UP (4) to change hours.

  • Page 9: Radio Operation

    RADIO OPERATION • BAND Press BND button (10) to change bands as below: • SELECT STATION Rotate TUNING knob (11) clockwise or counterclockwise to adjust the frequency upward or downward. • LOCAL/DISTANT Press the LOC/RPT button (12) to select between local setting for reception of strong station and distant setting for reception of weak stations when tuning.

  • Page 10: Specification

    SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Weight Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Comsumption CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB)

  • Page 11: Troubleshooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
  • Page 12 88-C1010-12...
