Sound Storm SCD-550R User Manual

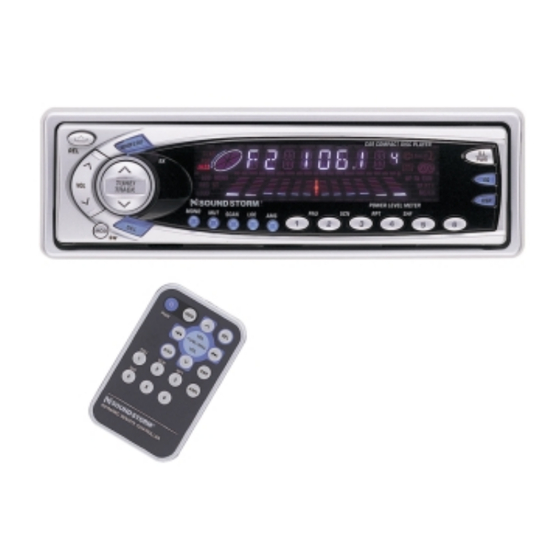

In-dash cd receiver with wireless remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCD-550R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sound Storm SCD-550R

Summary of Contents for Sound Storm SCD-550R

  • Page 2: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function. • Before final installation, connect the wiring temporarily and make sure the unit and the system work properly. • Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 3: Din Rear-Mount (Method B)

    (Fig. 2) Removing the unit DIN REAR-MOUNT (Method B) Installation using the screw holes on the sides of the unit. 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw (5 x 28mm) 6. Backstrap Be sure to use the backstrap to secure the back of the unit in place.

  • Page 4: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL To Detach the Front Panel 1. Press the release button (REL), the front panel will drop down. 2. Remove the front panel by pulling it outward. 3. For safekeeping, store the front panel in the supplied protective case immediately after being removed.
  • Page 5 To Reinstall the Front Panel 1. Push the front panel into the main body. A ‘click’ sound should be heard. 2. Note that if the front panel fails to lock in position properly, control buttons may not function and the display may be missing some segments. Push the release button and reinstall the front panel again.

  • Page 6: Wiring Connection

    WIRING CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (B+) YELLOW MEMORY BACK-UP BLACK GROUND (B–) POWER ANTENNA 2-SPEAKERS SYSTEM 4-SPEAKERS SYSTEM WHITE FRONT Lch SPK. SPK. REAR Lch SPK. GREEN/BLACK Note: 1. For 2-speakers system, green, violet, white/black and grey/black wire leads are unconnected and isolated.

  • Page 7: General Operation

    OPERATION 7 17 GENERAL OPERATION • ON/OFF/ILLUMINATE Switch on the unit by pressing any button [except EJECT button (4) and REL button (7)]. When system is on, press ILL/PWR button (9) shortly to control the brightness of VFD. Hold it for several seconds to turn off the unit. •...
  • Page 8 The adjustment mode will change in the following order. Volume By pressing VOL button (11) or VOL desired level. • LOUDNESS Press BND/LOU button (13) for several seconds to reinforce the bass output. The display will show “LOUD”. Press it for several seconds again to defeat this function. •...

  • Page 9: Radio Operation

    RADIO OPERATION • BAND SELECTION For tuner mode, press BND/LOU button (13) briefly to select the desired band. The reception band will change in the following order: • STATION SELECTION Press TUNE/TRACK automatic seek function. Press for several seconds until “MANUAL” appears on the display.
  • Page 10 CD OPERATION • SELECT TRACKS During CD operation, press TUNE/TRACK (17) to move to the previous track or the following track. Track number shows on the display. During CD operation, hold TUNE/TRACK (17) to fast reverse or fast forward. CD play starts from when you release the button.

  • Page 11: Remote Control Handset

    REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL TUNE/SEEK TUNE/SEEK 10. AMS 11. M1 - M6 12. PAU 13. SCN 14. RPT 15. SHF = Power ON/OFF Button = Display Button = Select Button = Volume Up Button = Volume Down Button = Band Select Button = Mode Button = Tune/Seek Down Button...

  • Page 12: Specification

    SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Consumption Weight CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB)

  • Page 13: Troubleshooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of disc already loaded or ejected.
  • Page 14 88-C0930-45...
