LEGRAND 6338 23 Quick Start Manual

4 line-in/12 line-out telcom module
6338 23

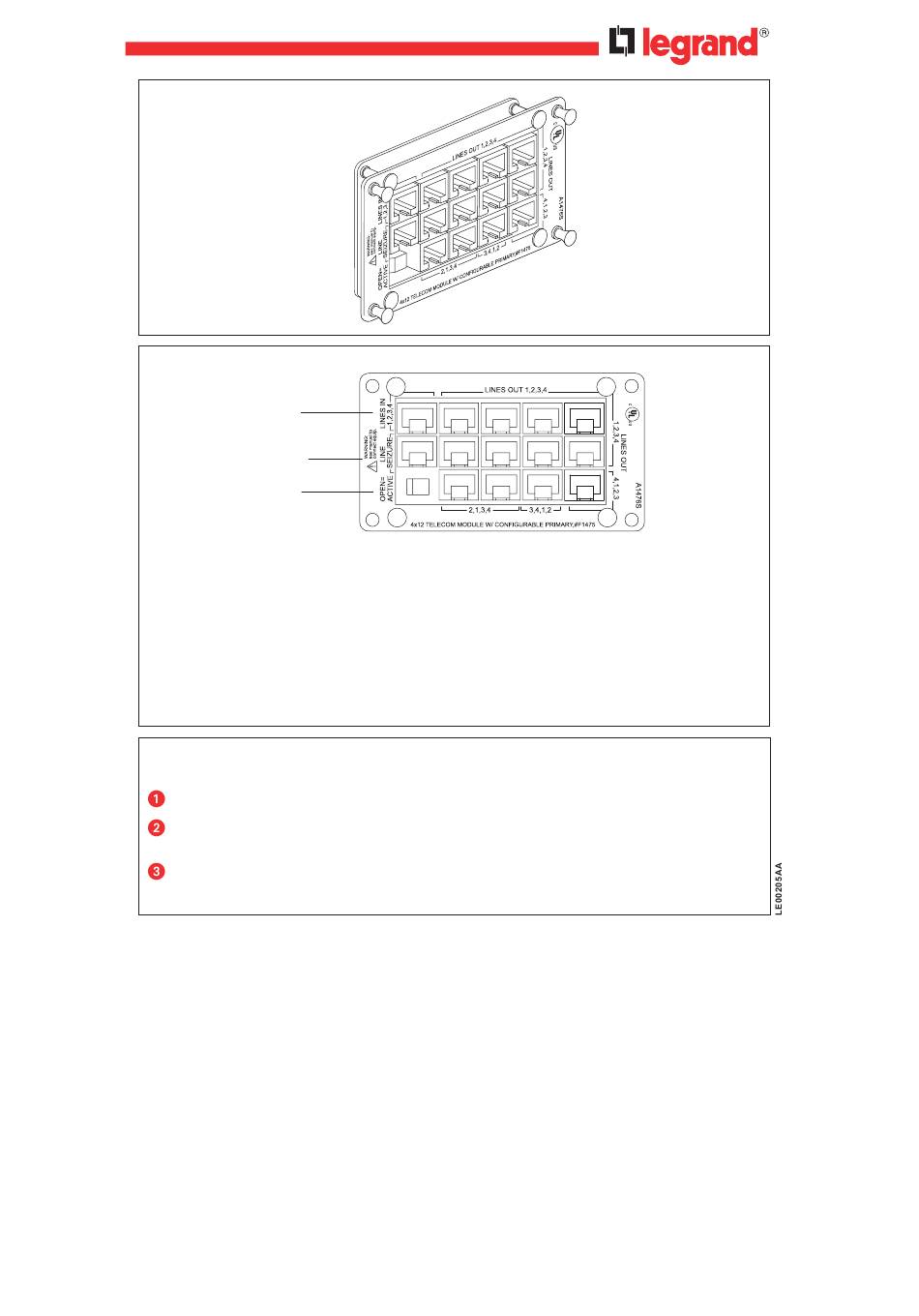

Description

Lines In 1 - 4
from Telephone
Company (NID)
To Security Panel
(optional)
Line Seizure
DIP Switches

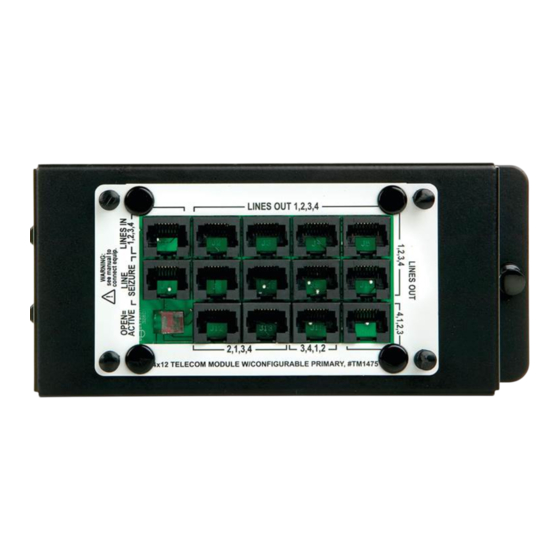

The Legrand 4 x 12 Telecom Modules distribute four incoming telephone lines to as many as 12
locations throughout the home. The module's plug and connect design makes line reconfiguration
simple, and offers the following benefits:
- Line 1 is available at 8 locations
- All connectors 8-Pin 8-Conductor (RJ45) wired to T568A
- All ports meet TIA 568A Category 3 specifications
- Verified to comply with FCC Part 68 for unregistered equipment
- 50 microns gold plated contact points
- Accepts four incoming telephone lines
- Advanced surge protection with automatically resetting fuse

Installation

Mount the 4 x 12 telecom distribution module into the enclosure
- Pull out each of the plungers which are located at each corner of the 4 x 12 Telecom Module
- Insert the module into the included single bay bracket and depress each of the four plungers to
secure the module to the bracket
- To mount the bracket (with module) into the enclosure, insert the tabs on the left side of the bracket
into the slots in the enclosure and push the bracket pushpin into an appropriate hole in the enclosure to
secure the bracket (with module) to the enclosure
