www.ahlborn.com

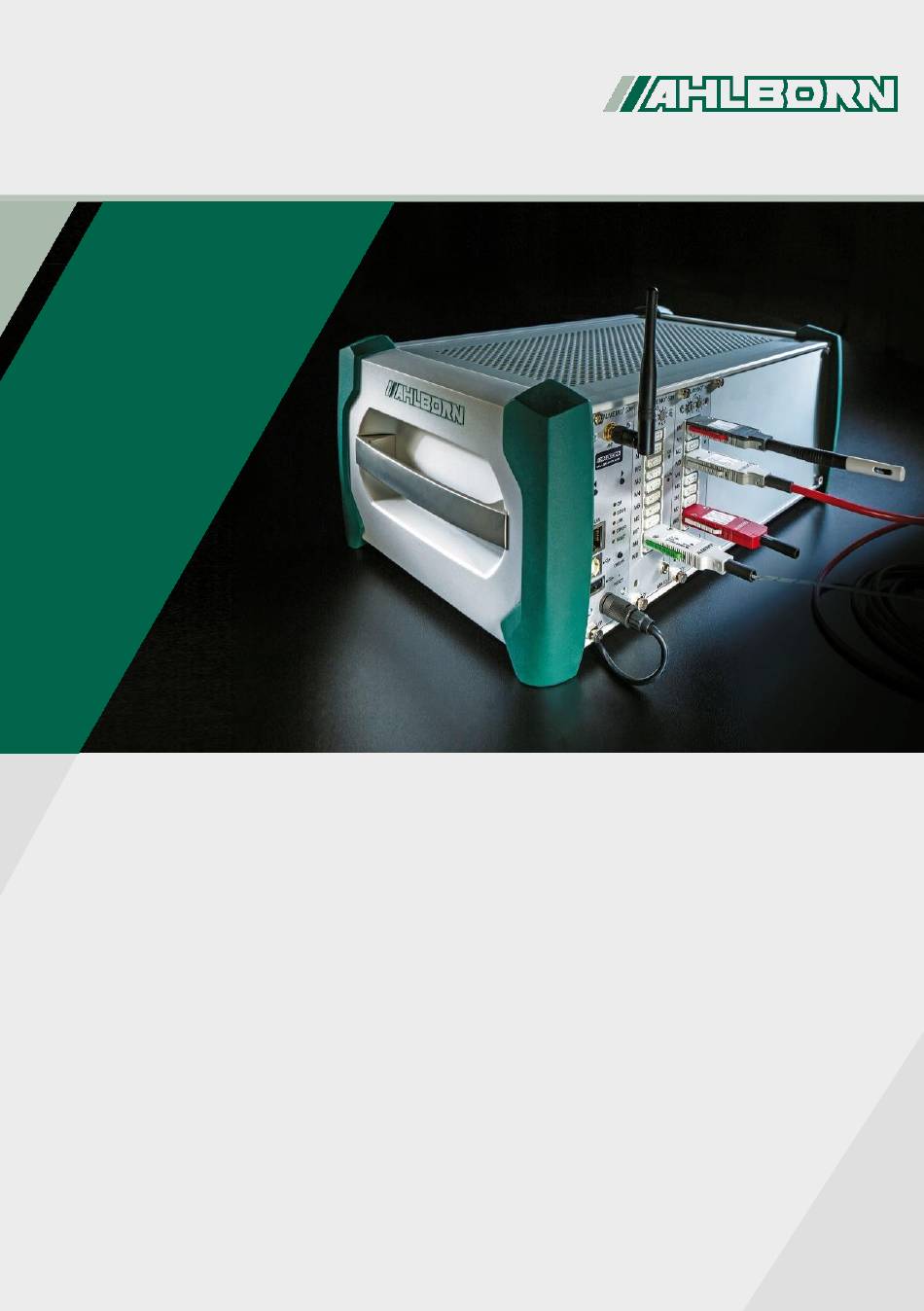

Produktpräsentationsbild
Supplementary Instruction
Manual
®
ALMEMO
500
Enable transparent mode
For multi point adjustment and enabling of
options, sensor programming, and controlling
relays and analog outputs via serial ports
V7 Technology
English
V2.4
- 1 –
22.11.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALMEMO 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Ahlborn ALMEMO 500

Summary of Contents for Ahlborn ALMEMO 500

  • Page 1 Produktpräsentationsbild Supplementary Instruction Manual ® ALMEMO Enable transparent mode For multi point adjustment and enabling of options, sensor programming, and controlling relays and analog outputs via serial ports V7 Technology English V2.4 - 1 – 22.11.2021...

  • Page 2: Table Of Contents

    1 Table of Contents Table of Contents ..................2 What is the Transparent Mode? ............... 3 How to Activate or Deactivate the Transparent Mode ......4 3.1 How to Control the Transparent Mode via the Status Display ....4 3.2 How to Control the Transparent Mode via the ALMEMO ®...

  • Page 3: What Is The Transparent Mode

    2 What is the Transparent Mode? In the Transparent Mode you can - via the ALMEMO ® Control program or via another terminal program - directly communicate with the measuring circuit boards to run a multi point adjustment, to program a sensor, or to enable options. Port commands can only be sent to the measuring circuit boards of the data logger ALMEMO ®...

  • Page 4: How To Activate Or Deactivate The Transparent Mode

    3 How to Activate or Deactivate the Transparent Mode 3.1 How to Control the Transparent Mode via the Status Display In the Transparent Mode you can directly communicate with the measuring circuit boards via the ALMEMO Control program. ® In the Transparent Mode there will be no data logging performed via the web service and the app.

  • Page 5: How To Control The Transparent Mode Via The Almemo ® 500 App

    3 How to Activate or Deactivate the Transparent Mode 3. Press the left one of the Navigation keys one Transparent Mode time. ACTIVATED ➢ The Transparent Mode will be activated. 192.168.1.204 ➢ The Transparent Mode is active as soon as the status display shows “ACTIVATED”.
  • Page 6 3 How to Activate or Deactivate the Transparent Mode after a short time. In case a battery pack is used in your system for the time of activated Transparent Mode the datalogger must be connected to the power supply. ! The tablet must be connected to the data logger (see Instruction Manual chapter 6 Initial Operation, step 6 to 20).

  • Page 7: How To Connect The Data Logger To Almemo ® Control Or Amr Wincontrol When Transparent Mode Is Activated

    4 How to Connect the Data Logger to ® Almemo Control or AMR WinControl when Transparent Mode is activated ® 4.1 How to use Almemo Control via WLAN or Ethernet 1. Connect the data logger via Ethernet or WiFi to a PC (see Instruction Manual chapter 7.4.1 Connect PC to the data logger).

  • Page 8: How To Connect Amr Wincontrol

    4 How to Connect the Data Logger to Almemo® Control or AMR WinControl when Transparent Mode is activated 8. Click on Search for connected devices. ➢ Every measuring circuit board will be listed individually in the device list. 4.3 How to connect AMR WinControl ! The data logger needs to be connected to the PC.

  • Page 9: How To Send Port Commands From The Terminal Of The Almemo ® Control Software To An Almemo ® 500

    5 How to send Port Commands from the ® Terminal of the ALMEMO Control ® Software to an ALMEMO 5.1 General instructions on how to enter port commands ! The Transparent Mode of the data logger needs to be enabled. ! The data logger needs to be connected to the ALMEMO ®...

  • Page 10: Port Commands For Controlling And Setting The Rta6 Slide-In Module

    6 Port Commands for Controlling and Setting the RTA6 Slide-in Module → At first, address the measuring circuit board by entering the address of the measuring circuit board (e.g. 000). The RTA6 slide-in module is treated like an output module and must therefore be addressed via a measuring circuit board.
  • Page 11 6 Port Commands for Controlling and Setting the RTA6 Slide-in Module Set an analog start (xxxxx) in the measuring channel (Exxx.x). Exxx.x axxxxx Set an analog end (xxxxx) in the measuring channel (Exxx.x). Exxx.x exxxxx Enable the watchdog of a slide-in module (pp=port on the slide-in ipp o19 module, watchdog is then activated for the complete slide-in module):...
  • Page 12 ALMEMO Manual on www.ahlborn.com under the tab SERVICE DOWNLOADS. © Ahlborn Mess- und Regelungstechnik GmbH 2021 All rights reserverd. Ahlborn Mess- und Regelungstechnik GmbH, Eichenfeldstraße 1-3, 83607 Holzkirchen, Germany Phone +49(0)8024/3007-0, Fax +49(0)8024/300710 Internet: http://www.ahlborn.com, Email: amr@ahlborn.com...
