Ahlborn ALMEMO 500 Supplementary Operating Instructions
Battery compartment
Hide thumbs
Also See for ALMEMO 500:
- Instruction manual (72 pages) ,
- Supplementary instructions manual (28 pages) ,
- Supplementary instructions manual (12 pages)
Related Manuals for Ahlborn ALMEMO 500
Summary of Contents for Ahlborn ALMEMO 500

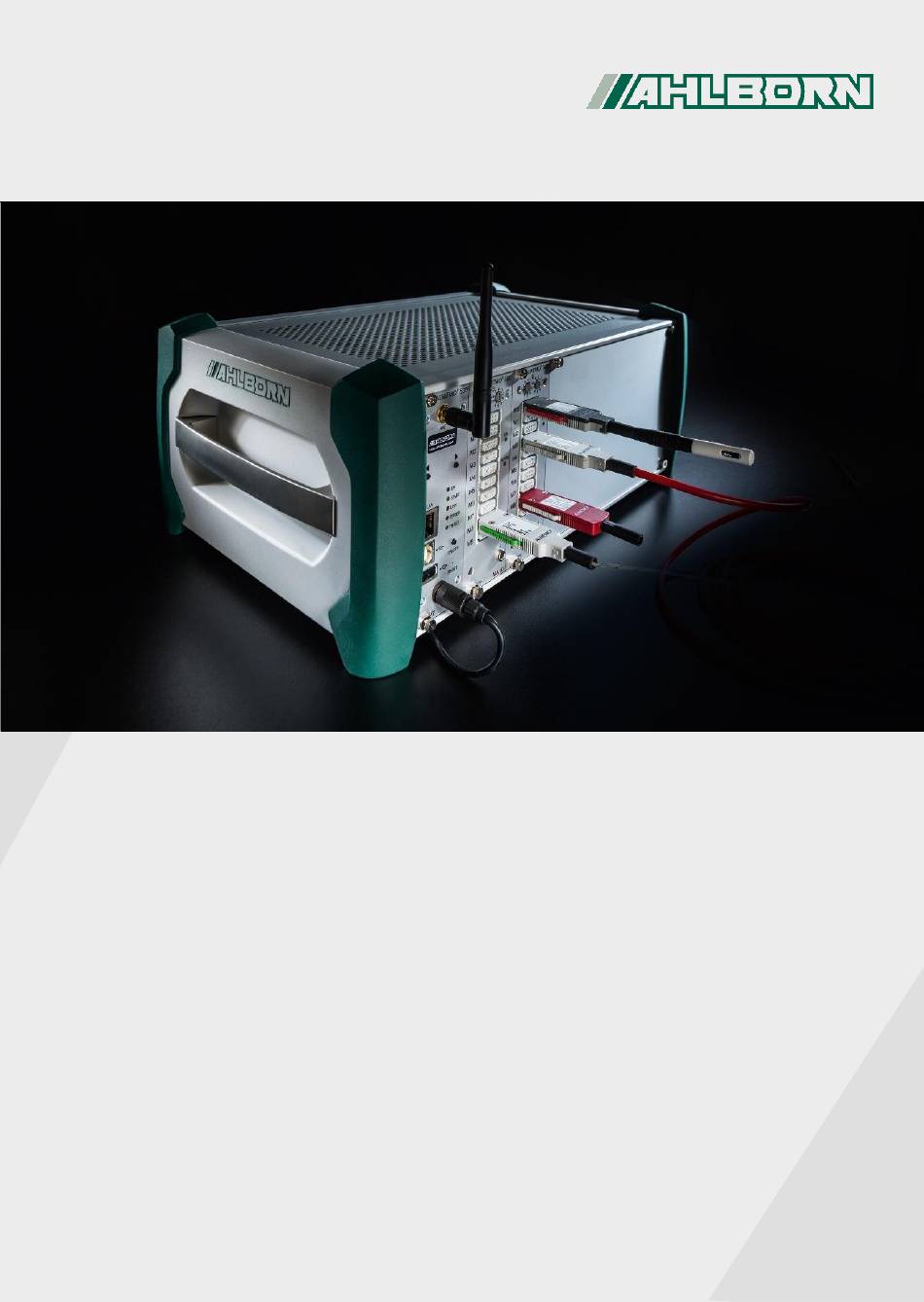

- Page 1 Produktpräsentationsbild mit grünen, schrägen Balken links Supplementary Operating Instructions ® ALMEMO Battery Compartment V7 Technology English V1.0 17.10.2017 - 1 –...
- Page 2 1 General illustration of the battery compartment ON LED 1 SLOW CHARGE LED 2 FAST CHARGE LED 3 CHARGE STATE LEDs 4 DC IN socket 5 Reset pushbutton of the battery compartment 6 Battery sockets 7 - 2 –...
- Page 3 2 Table of Contents General illustration of the battery compartment ........2 Table of Contents ..................3 Explanation of Symbols ................3 Before the first use of the battery compartment ........4 Remove battery compartment from the housing of the data logger ... 4 Charge batteries..................
- Page 4 4 Before the first use of the battery compartment For safety reasons, the battery sockets will be unplugged prior to shipment in order to properly interrupt the power supply of the battery compartment provided by the battery. → In case the battery compartment was delivered together with the data logger, please remove the battery compartment from the housing of the data logger;...
- Page 5 Make sure no short-circuits occur on the printed circuit board. Do not place any conductive piece (e.g. screwdriver) on the printed circuit board. Short-circuits will cause damage to the product. Protect the assembly from electrical discharge. Only handle the assembly within a safe electrostatic environment. 6 Charge batteries As long as the data logger is turned off, the battery compartment will be charged fast.
- Page 6 - 6 –...
- Page 7 Besides greatest diligence, the possibility of incorrect information cannot be excluded! Subject to technical modifications without prior notice! - 7 –...
- Page 8 You will find the present and further Operating Instruction, as well as the ALMEMO Manual on www.ahlborn.com under the tab SERVICE DOWNLOADS. © Ahlborn Mess- und Regelungstechnik GmbH 2017 All rights reserverd. Ahlborn Mess- und Regelungstechnik GmbH, Eichenfeldstraße 1-3, 83607 Holzkirchen, Germany Phone +49(0)8024/3007-0, Fax +49(0)8024/300710 Internet: http://www.ahlborn.com, Email:...
