- Page 1 SDI Distributor User Manual Model :SDI04D 1 x 4 Output 3G-SDI Distribution Amplifier Smart Cabling & Transmission Corp. V1.0...

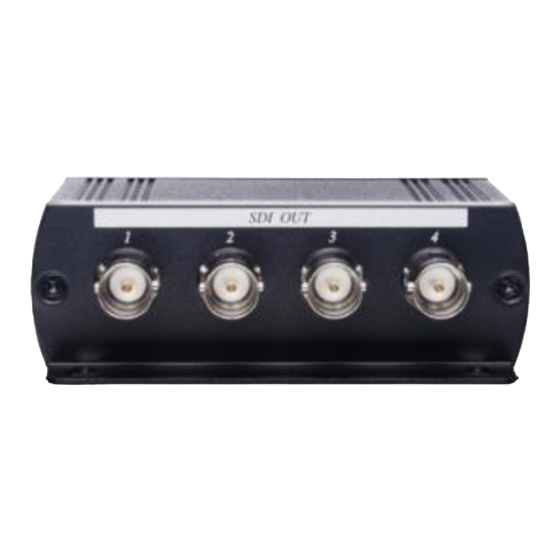

- Page 2 SDI04D Introduction SDI04D is an 1-in-4-out SDI distribution amplifier that can split one SDI for 4 SDI devices at remote side with transmission distance up to 400M. The re-clock function reduces the accumulated jitter and correctly display the desired video...
- Page 3 User Manual SDI04D Recommend Cable To send HD signal, the coax cable Bandwidth must over 1.5G. If send Full HD signal, the coax cable Bandwidth must over 3G. Link cable recommend to use high quality 75Ω Coaxial Cable and BNC connector, low quality coaxial cable may case signal loss and effect transmission distance and reliability.
- Page 4 User Manual SDI04D Specification ITEM NO. SDI04D Support Compliance SMPTE 259M, SMPTE 292M, SMPTE 424M Max. Video Resolution 3G-SDI Transmission Distance 100M at 3G-SDI Network Bandwidth 10/ 100Mbps Ports & Interfaces Video Input 75Ω Video Output 75Ω Power Power Supply...
