Owner's Manual
I
,R
"
'
i
P
O F E S
S
I
O N A L

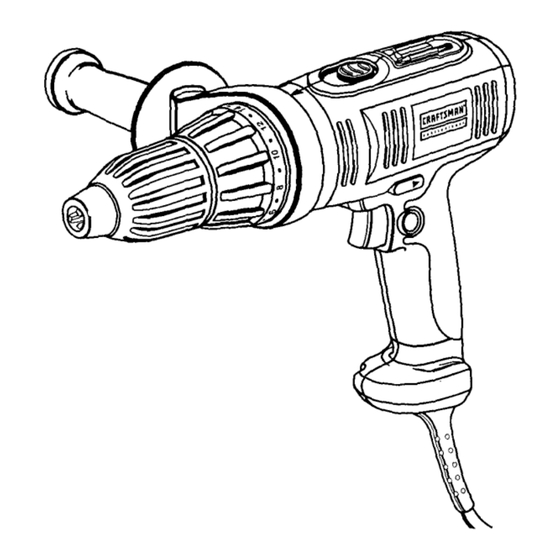

3/8 in. PROFESSIONAL
DRILL-DRIVER
Variable Speed / Reversible
Double Insulated
Model No.
315.279940
Save this manual for
future reference
_, CAUTION:
Read and follow
all Safety Rules and Operating
Instructions
before first use of
this product.
• Safety
• Features
• Assembly
• Operation
• Maintenance
• Parts List
Customer
Help Line: 1-800-932-3188
Sears Roebuck
and Co., Hoffman
Estates,
IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
972000-826
3-01
0®0s
Advertisement
Related Manuals for Craftsman 315.27994
Summary of Contents for Craftsman 315.27994
- Page 1 Safety Rules and Operating Instructions before first use of this product. Customer Help Line: 1-800-932-3188 Sears Roebuck and Co., Hoffman Visit the Craftsman web page: www.sears.com/craftsman 972000-826 3-01 O N A L DRILL-DRIVER Estates, IL 60179 USA • Safety •...
- Page 2 • Table of Contents ... • General Safety Rules ... • Specific Safety RulesAnd/Or • Features ... • Assembly ... • Operation ... • Maintenance • Accessories • Exploded ViewAnd Repair Parts List ... • Parts Ordering / Service ... WARNING: Read and follow all instructions.
- Page 3 Tool Use and Care Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control. • Do not force tool. Use the correct tool for your application.
- Page 4 Holdtool by insulatedgrippingsurfaceswhenperformingan operationwherethe cuttingtool maycontact hiddenwiringor its cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator. Additional Rules For Safe Operation Know your power tool. Read operator's manual carefully. Learn its applications well as the specific potential hazards related to this tool.
- Page 5 WARNING: The operation of any drill can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields, available at Sears Retail Stores.
- Page 6 TWO SPEED Your drill-driver has a two speed gear train designed for drilling or driving at HI or LO speeds. A slide switch is located on top of your drill-driver to select either HI or LO speed. BIT STORAGE When not in use, bits provided with your drill-driver can be placed in the storage area located on the top of the motor housing.
- Page 7 AUXILIARY HANDLE See Figure 2. An auxiliary handle is packed with your drill-driver for ease of operation and to help prevent loss of control. The handle can be rotated 360 °. Note: For convenience and ease of starting threads, the hex nut has been trapped inside the molded slot in the auxiliary handle.
- Page 8 Your drill has a two-speed gear train designed for drilling or driving at LO (1) or HI (2) speeds. A slide switch is located on top of your drill to select either LO (1) or HI (2) speed. When using drill in the LO (1) speed range, speed will decrease and unit will have more power and torque.
- Page 9 LOCK (tighten) or UNLOCK (release) the chuck jaws. Loosen the chuck sleeve by rotating it counterclockwise Insert drill bit straight into the chuck the full length of the jaws, and tighten securely by rotating the chuck sleeve in clockwise direction.
- Page 10 If not prepared, this loss of control can result in possible serious injury. When drilling metals, use a light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase the drilling action.
- Page 11 • Insert a 8 mm (5/16 in.) or larger hex key wrench into the chuck of your drill and tighten the chuck jaws securely. • Tap the hex key wrench sharply with a mallet in a clockwise direction.
- Page 12 If damaged replace immediately. Never use tool with a damaged cord since touching the damaged area could cause electrical shock resulting in serious injury. Extension cords suitable for use with your drill are available at your nearest Sears Retail Store. parts when servicing.
- Page 13 WARRANTY FULL ONE YEAR WARRANTY ON CRAFTSMAN If this tRAFT$MRN Drill-Driver fails due to a defect in material or workmanship within one year from the date of pur- chase, Sears will repair it, free of charge. WARRANTY SERVICE IS AVAILABLE SEARS SERVICE CENTER IN THE UNITED STATES.
-
Page 15: Parts List
